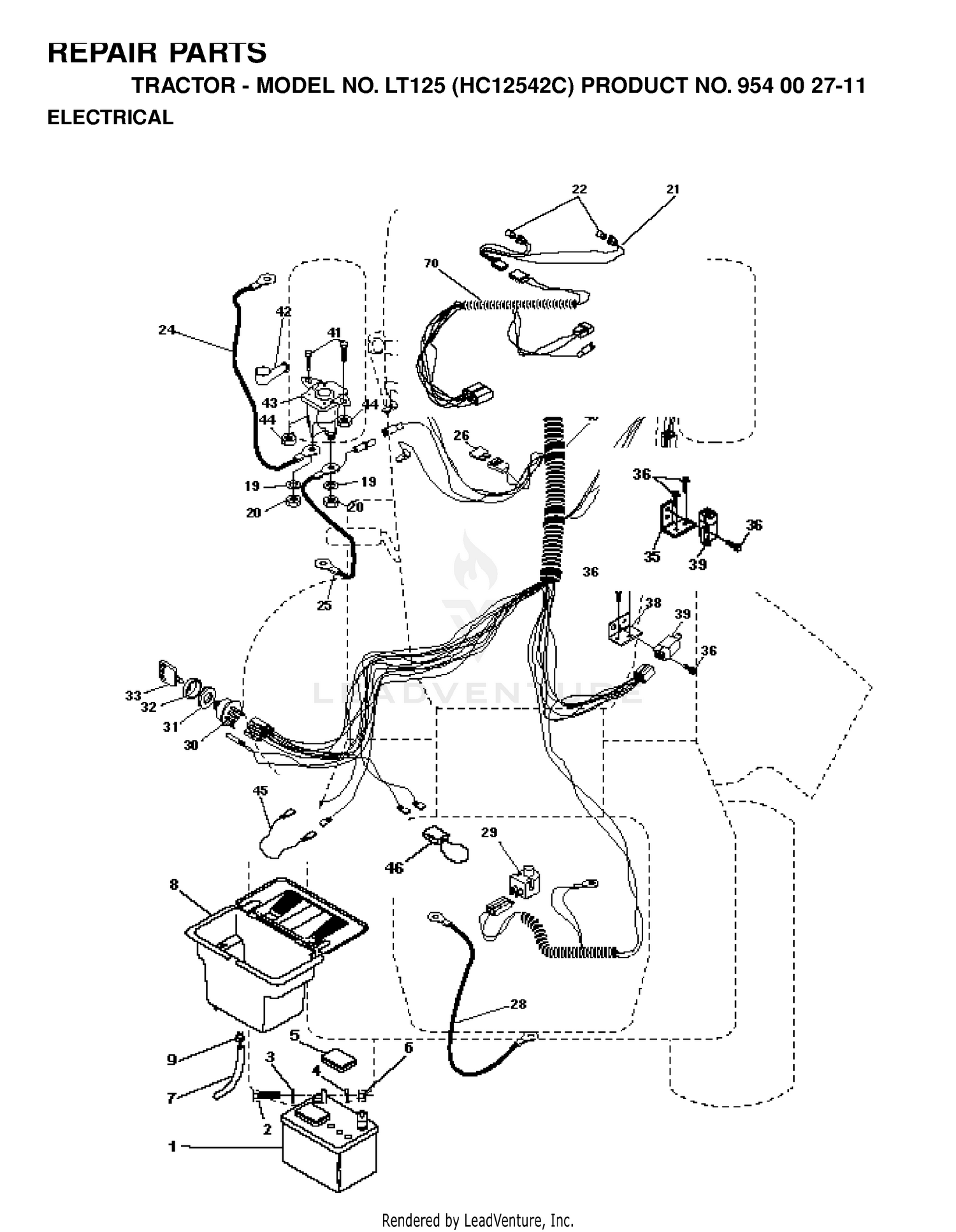

| Ref | Part Number | Description |
|---|
| 1 |
125-6918 |
SWITCH-OIL Price: $25.77 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532121265. Price: $149.99 |
| 2 |
125-6975 |
BOLT-JOINT, PIPE Price: $12.92 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
125-6952 |
BOLT-JOINT, PIPE Price: $18.97 |
| 3 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 4 |
125-7076 |
PIPE ASM Price: $102.27 |
| 4 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 5 |
125-6931 |
RETAINER Price: $14.47 |
| 5 |
532121264 |
CAP BATTERY NLA Price: $10.91 |
| 6 |
125-6976 |
RETAINER Price: $8.13 |
| 6 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 7 |
125-6988 |
JOINT BOLT ASM Price: $10.74 |
| 7 |
532109238 |
TUBE BATTERY DRAIN Price: $5.46 |
| 8 |
125-7174 |
WASHER-SEAL Price: $5.45 |
| 8 |
532404349 |
KIT.BOX.BATTERY.REAR.BOOT.POS This part replaces 532144940. Price: $24.99 |
| 9 |
125-7194 |
BOLT-JOINT Price: $5.25 |
| 9 |
532109596 |
HOSE CLAMP T Price: $3.99 |
| 10 |
125-7174 |
WASHER-SEAL Price: $5.45 |
| 11 |
125-7175 |
WASHER-SEAL Price: $6.16 |
| 12 |
125-7193 |
GASKET Price: $1.28 |
| 13 |
125-7212 |
BOLT Price: $2.74 |
| 14 |
125-7231 |
NUT Price: $3.77 |
| 15 |
125-6971 |
ELBOW Price: $33.07 |
| 16 |
125-7077 |
PIPE Price: $72.90 |
| 17 |
125-6958 |
HOSE Price: $12.98 |
| 18 |
125-7188 |
CLAMP-HOSE Price: $2.39 |
| 19 |
125-7198 |
O-RING Price: $7.26 |
| 19 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810090400. Price: $2.99 |
| 20 |
125-7208 |
BOLT Price: $3.77 |
| 20 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $2.99 |
| 21 |
125-7105 |
CHECK VALVE ASM Price: $41.11 |
| 21 |
532136850 |
HARNESS LIGHT SOCKET Price: $15.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 25 |
532146147 |
CABLE BATTERY Price: $22.99 |
| 26 |
532108824 |
FUSE HYT Price: $4.99 |
| 27 |
125-7098 |
NOZZLE Price: $43.36 |
| 28 |
532004207 |
CABLE T This part replaces 532124773. Price: $4.99 |
| 29 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $12.99 |
| 30 |
532140301 |
SWITCH.IGNITION.4.POSITION Price: $32.99 |
| 31 |
532124211 |
NUT IGNITION Price: $4.99 |
| 32 |
532141226 |
COVER SWITCH KEY Price: $4.99 |
| 33 |
532122147 |
KEY.MOLDED.GENERIC Price: $5.99 |
| 35 |
532108236 |
BRACKET LT Price: $2.99 |
| 36 |
817021008 |
SCREW Price: $3.99 |
| 38 |
532140336 |
SWITCH BRACKET Price: $2.42 |
| 39 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $14.99 |
| 41 |
871110412 |
Bolt Blk Fin Hex 1/4 - 20 x 3/4 Price: $3.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532145673. Price: $19.99 |
| 44 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 45 |
532140844 |
ADAPTER.AMMETER Price: $4.99 |
| 46 |
532141940 |
WIRE PROTECTION LOOP Price: $4.99 |
| 70 |
532141163 |
ENGINE HARNESS Price: $14.09 |
