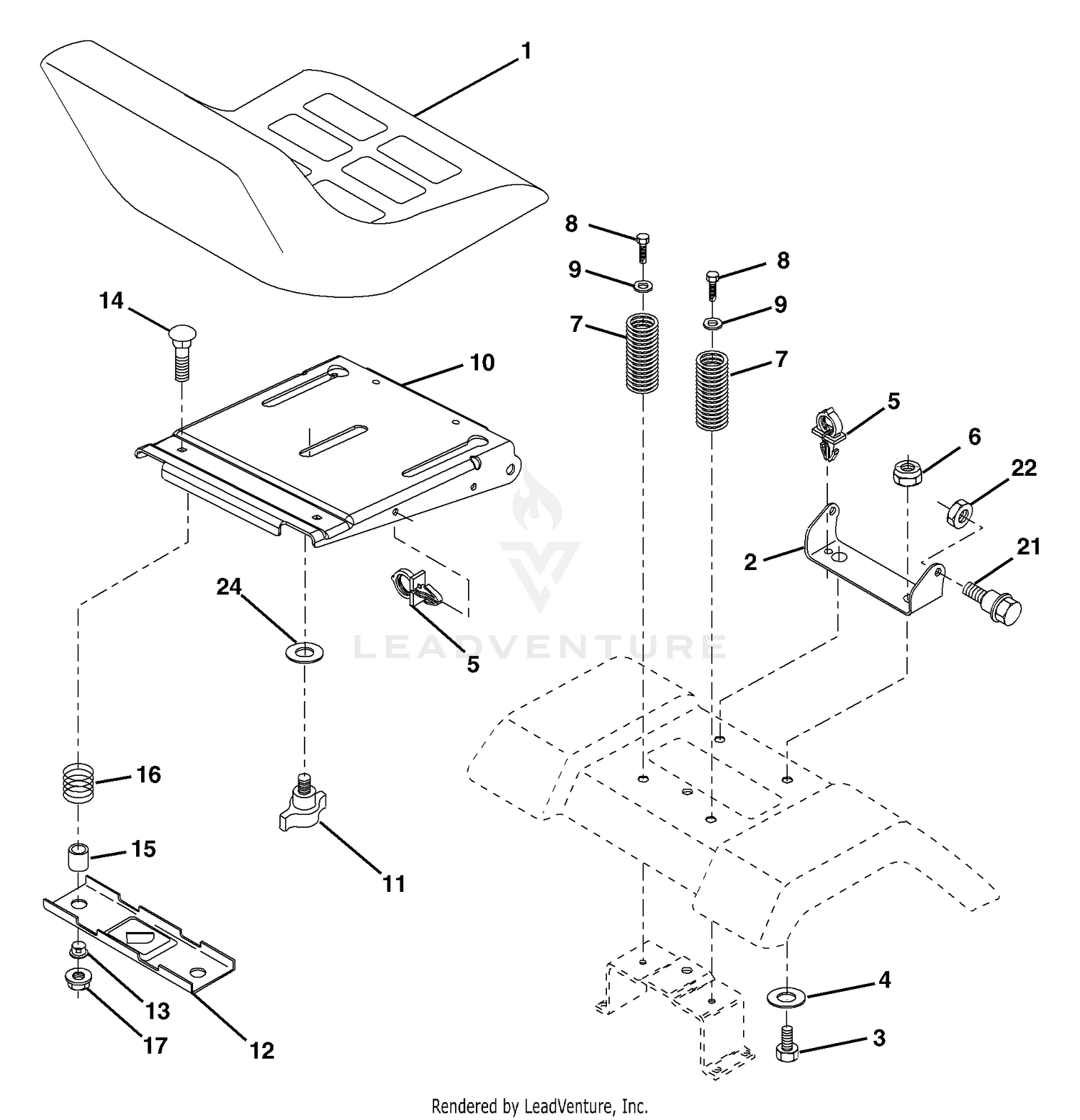

| Ref | Part Number | Description |
|---|
| 1 |
188704 |
Seat Price: Call Us |
| 1 |
3296-60 |
NUT-LOCK, NI Price: $5.08 |
| 2 |
104-3546 |
PULLEY-DRIVEN, LOW Price: $163.56 |
| 2 |
180166 |
Bracket Pivot Fender Price: Call Us |
| 3 |
112-8446 |
SEAL-V RING This part replaces 104-3564. Price: $4.26 |
| 3 |
71110616 |
Bolt Fin Hex 3/8-16 unc x 1 Price: Call Us |
| 4 |
119-4546 |
SPINDLE HOUSING ASM This part replaces 104-3552. Price: $244.67 |
| 4 |
19131610 |
Washer 13/32 x 1 x 10 Ga. Price: Call Us |
| 5 |
138-6416 |
SPACER-SPINDLE, SHAFT This part replaces 69-6950. Price: $18.44 |
| 5 |
145006 |
Clip Push-In Price: Call Us |
| 6 |
104-3554 |
SHAFT-SPINDLE Price: $67.98 |
| 6 |
73800600 |
Nut Hex w/Ins. 3/8-16 unc Price: Call Us |
| 7 |
104-8322 |
WASHER-HARDENED Price: $23.22 |
| 7 |
124181X |
Spring Seat Cprsn 2 250 Blk Zi Price: Call Us |
| 8 |
17000616 |
Screw 3/8-16 x 1.5 Smgml Price: Call Us |
| 9 |
19131614 |
Washer 13/32 x 1 x 14 Ga. Price: Call Us |
| 10 |
180186 |
Pan Seat Price: Call Us |
| 11 |
166369 |
Knob Seat Price: Call Us |
| 12 |
121246X |
Bracket Mounting Switch Price: Call Us |
| 13 |
121248X |
Bushing Snap Blk Nyl 50 Id Price: Call Us |
| 14 |
72050412 |
Bolt Rdhd Sqnk 1/4-20 x 1-1/2 Price: Call Us |
| 15 |
134300 |
Spacer Split 28x 88 Price: Call Us |
| 16 |
121250X |
Spring Cprsn Price: Call Us |
| 17 |
123976X |
Nut Lock 1/4 Lge Flg Gr. 5 Zinc Price: Call Us |
| 21 |
171852 |
Bolt Shoulder 5/16-18 unc Price: Call Us |
| 22 |
73800500 |
Nut Hex Lock W/Ins 5/16-18 Price: Call Us |
