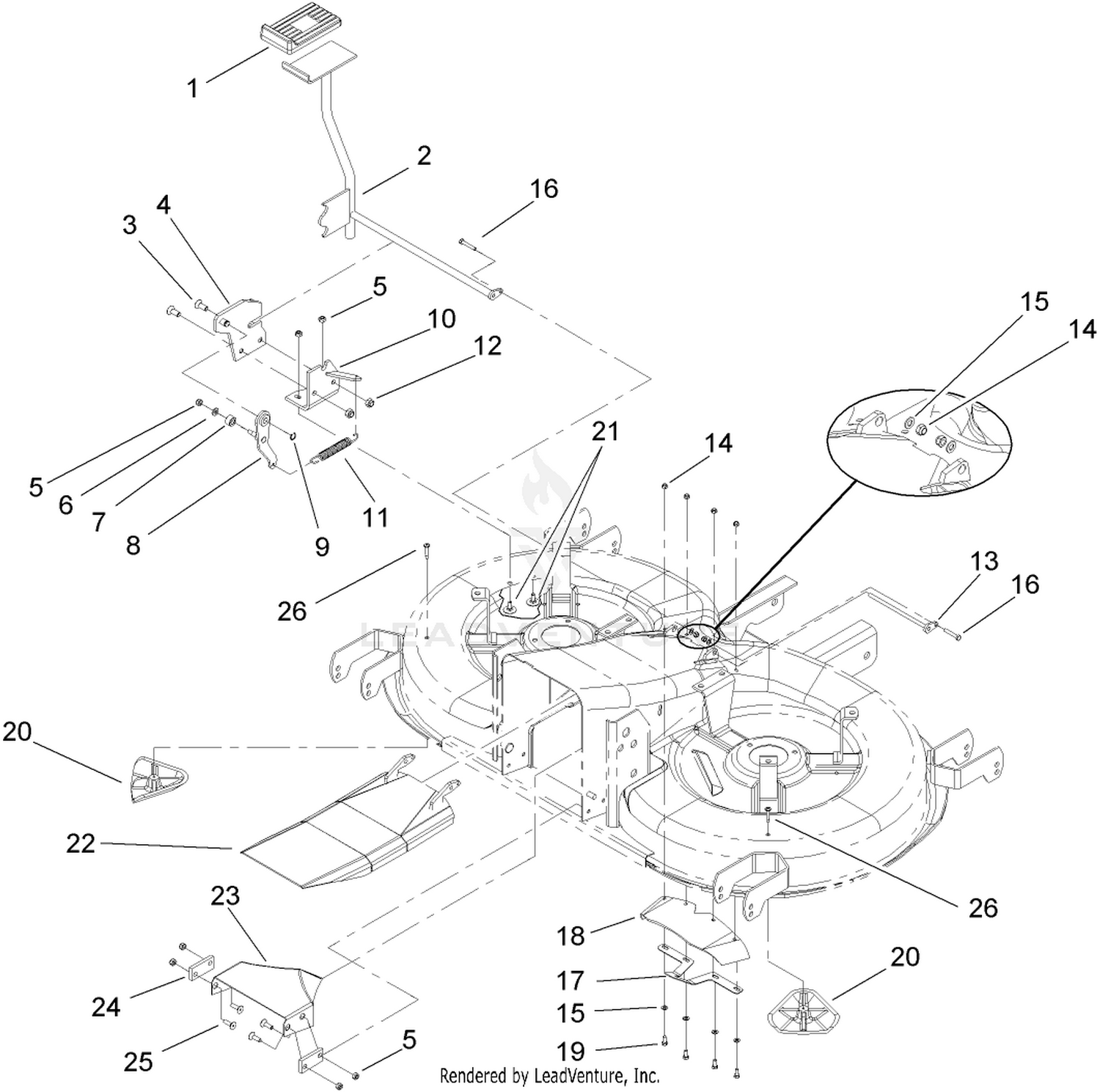

Cutting Pan and Bag on Demand Assembly
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 106-8583 | Cover-Lever, FOOT Price: Call Us |
| 2 | 106-8582 | Lever-Foot Price: Call Us |
| 3 | 100-8159 | SCREW-HSFH Price: $3.48 |
| 4 | 106-8578 | Plate-Stop Price: Call Us |
| 5 | 33023-00 | NUT-LOCK Price: $0.25 |
| 6 | 33093-00 | WASHER-FLAT Price: $0.70 |
| 7 | 106-8581 | Roller Price: Call Us |
| 8 | 106-8579 | Lever-Spring Price: Call Us |
| 9 | 106-8592 | RING-LOCKING Price: Call Us |
| 10 | 106-8577 | Bracket-Mounting Price: Call Us |
| 11 | 106-8580 | Spring Price: Call Us |
| 12 | 33024-00 | NUT-LOCK, NI This part replaces 48-9510. Price: $0.75 |
| 13 | 106-8585 | Rod-Door, Mulch Price: Call Us |
| 14 | 87-5140 | NUT-LOCK Price: $0.25 |
| 15 | 52-6430 | WASHER Price: $0.25 |
| 16 | 87-5150 | BOLT Price: $1.49 |
| 17 | 106-8567 | Guide Price: Call Us |
| 18 | 106-8586 | Gasket-Door, Mulch Price: Call Us |
| 19 | 106-8575 | Screw-HH Price: Call Us |
| 20 | 106-8587 | Kicker Price: Call Us |
| 21 | 33123-016 | SCREW-CARR Price: $1.21 |
| 22 | 107-8968 | USE 107-8969 Price: Call Us |
| 23 | 106-8573 | Baffle-Center Price: Call Us |
| 24 | 106-8572 | PLATE-BAFFLE, CENTER Price: Call Us |
| 25 | 106-8574 | Screw Price: Call Us |
