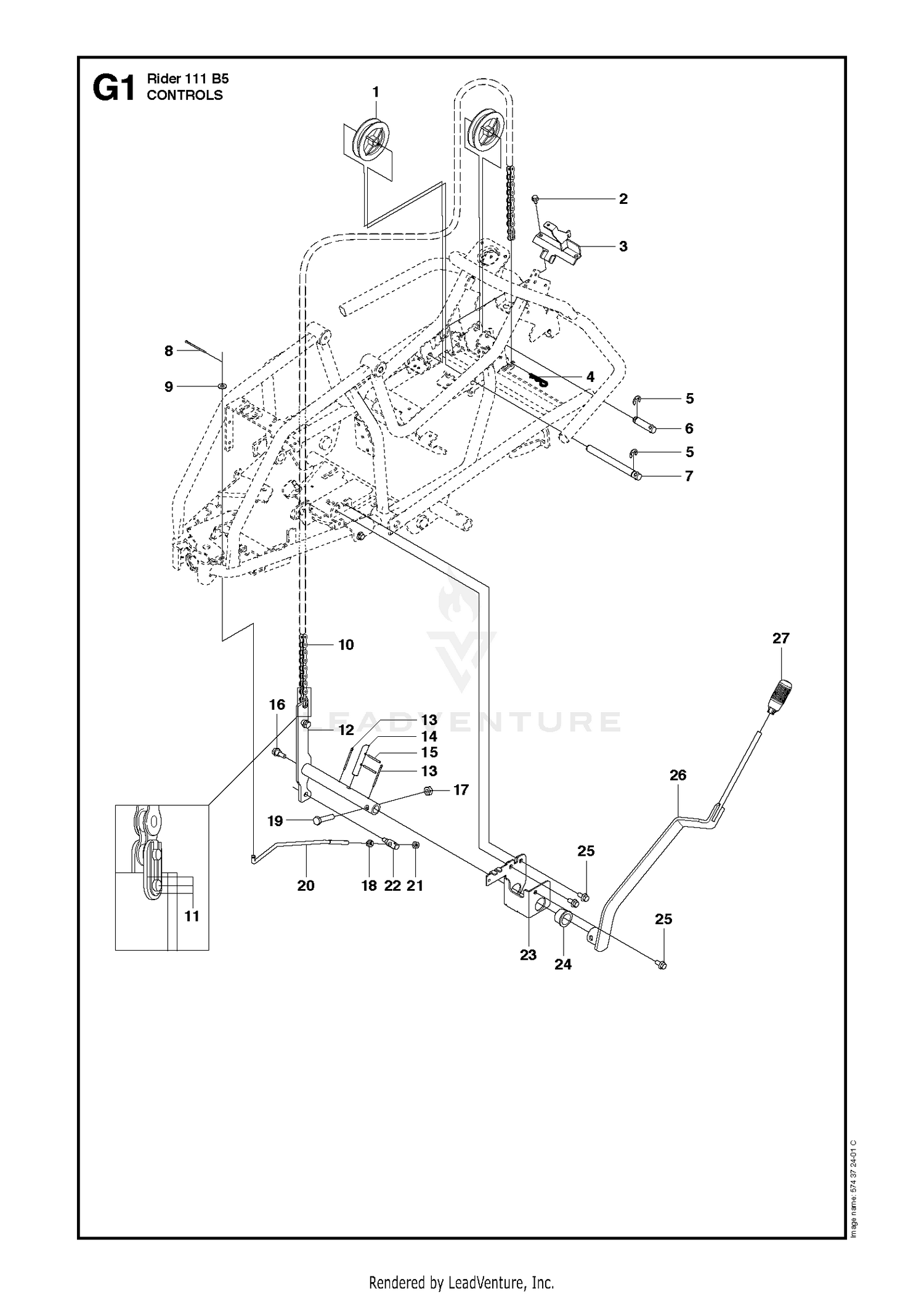

CONTROLS 3
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 125-7091 | CRANKSHAFT ASM Price: $2,915.83 |
| 1 | 506905601 | PULLEY Price: $14.99 |
| 2 | 125-6995 | PIN Price: $5.45 |
| 2 | 725236461 | SCREW Price: $2.99 |
| 3 | 574315801 | BRACKET Price: $7.99 |
| 4 | 125-6937 | GEAR Price: $205.45 |
| 4 | 721680251 | R-CLIP Price: $4.99 |
| 5 | 125-7185 | KEY Price: $2.16 |
| 5 | 735311820 | Lock Ring Price: $1.99 |
| 6 | 525404501 | SHAFT Price: $4.99 |
| 7 | 125-7182 | PIN-SPRING Price: $3.77 |
| 7 | 525404401 | SHAFT Price: $8.99 |
| 8 | 125-6925 | V-PULLEY Price: $255.74 |
| 8 | 721618301 | Split Pin Price: $1.99 |
| 9 | 125-7109 | WASHER Price: $19.67 |
| 9 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 10 | 125-6956 | BOLT Price: $40.22 |
| 11 | 125-6951 | BOLT Price: $6.77 |
| 11 | 506554701 | LINK Price: $4.99 |
| 12 | 127-3160 | FLYWHEEL ASM Price: $1,222.30 |
| 12 | 522560202 | NEEDS DESCRIPTION Price: Call Us |
| 13 | 721618701 | COTTER PIN Price: $3.99 |
| 14 | 125-6943 | GEAR Price: $137.73 |
| 14 | 525406601 | PIN This part replaces 506905301. Price: $7.99 |
| 15 | 721125930 | PIN Price: $2.99 |
| 16 | 127-3097 | PISTON ASM Price: $292.63 |
| 16 | 506597401 | BOLT Price: $5.99 |
| 17 | 732212001 | NUT This part replaces 732212051. Price: $3.99 |
| 18 | 127-3098 | PISTON RING ASM Price: $90.40 |
| 18 | 731231801 | NUT Price: $3.99 |
| 19 | 725250071 | SCREW This part replaces 725250051. Price: $2.99 |
| 20 | 522560101 | ROD Price: $8.99 |
| 21 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 22 | 525491301 | JOINT Price: $6.99 |
| 23 | 525404701 | BRACKET ASSY Price: $22.99 |
| 24 | 125-7030 | PIN Price: $43.23 |
| 24 | 584871301 | BEARING FLANGE This part replaces 506556501. Price: $4.99 |
| 25 | 125-7180 | RING Price: $2.39 |
| 25 | 506570103 | BOLT Price: $3.99 |
| 26 | 125-7242 | CONNECTING ROD ASM Price: $467.89 |
| 26 | 522508301 | NEEDS DESCRIPTION Price: Call Us |
| 27 | 588164101 | Handles This part replaces 506542001. Price: $11.99 |
| 29 | 125-6955 | BOLT Price: $20.62 |
| 30 | 125-7018 | PIN-CRANK Price: $20.94 |
| 32 | 125-6997 | PIN-PISTON Price: $21.73 |
| 33 | 125-7019 | PIN-CRANK (.25) Price: $20.96 |
| 35 | 127-3099 | PISTON ASM (0.25 O.S.) Price: $267.86 |
