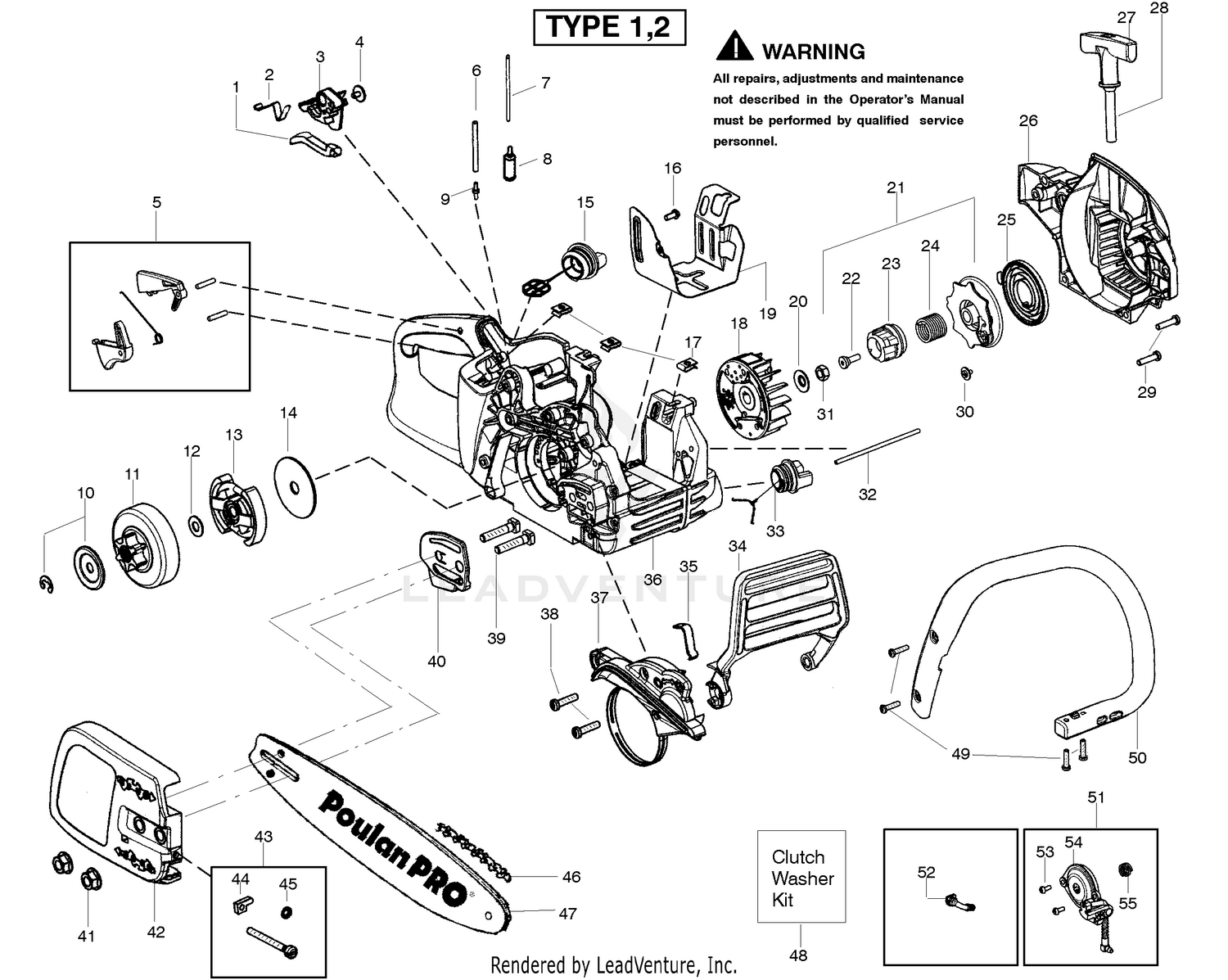

Starter - Type 1-2
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530057893 | Knob-Choke Price: $3.99 |
| 2 | 530057908 | Spring-Ign. Switch Price: $2.99 |
| 3 | 530057891 | Lever-Ign. Switch Price: $4.99 |
| 4 | 530016080 | Screw Price: $1.99 |
| 5 | 530071888 | Kit-Trigger/Lockout Price: $6.99 |
| 6 | 530069216 | Kit-Fuel Line (Large) Price: $3.99 |
| 7 | 530069247 | Kit-Fuel Line (Small) Price: $3.69 |
| 8 | 530095646 | Assy-Fuel Pick-up This part replaces 530095649. Price: $2.69 |
| 9 | 530023877 | Fitting-Fuel line Price: $1.99 |
| 10 | 530071945 | Kit-Clutch Washer Price: $3.99 |
| 11 | 530057905 | Assy-Clutch Drum 3/8" Price: $13.99 |
| 12 | 530071945 | Kit-Clutch Washer Price: $3.99 |
| 13 | 530057907 | Assy-Clutch Price: $6.99 |
| 14 | 530016419 | Washer-Large Clutch Price: $1.99 |
| 15 | 577858501 | FUEL CAP ASSY W/RET This part replaces 530047192. Price: $4.99 |
| 16 | 545227101 | SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 17 | 530015922 | Nut-"U" type speed Price: $1.99 |
| 18 | 530059635 | Assy-Flywheel Price: $23.99 |
| 19 | 530057911 | Shield-Heat Price: $2.99 |
| 20 | 530015127 | Washer-Flywheel Price: $1.99 |
| 22 | 530021179 | Screw-Shoulder Price: $1.99 |
| 23 | 530059677 | Hub-EPS Price: $5.99 |
| 24 | 530021180 | Spring-EPS Price: $1.99 |
| 25 | 545008013 | Kit-Starter Spring This part replaces 530042095. Price: $3.49 |
| 26 | 545039603 | Housing-Fan Price: $14.99 |
| 27 | 530056402 | Handle-Starter Price: $2.99 |
| 28 | 530016080 | Kit-Rope Price: $1.99 |
| 29 | 530016432 | Screw Price: $1.99 |
| 30 | 530016392 | Screw Price: $1.99 |
| 31 | 530016134 | Nut-Flywheel Price: $1.99 |
| 32 | 530058786 | Assy-Oil Vent Price: $2.99 |
| 33 | 530057236 | Assy-Oil Cap w/ret. Price: $5.99 |
| 34 | 530057897 | Handguard Price: $7.99 |
| 35 | 530016416 | Spring-Handguard Price: $1.99 |
| 37 | 530071893 | Kit-Chainbrake Price: $17.99 |
| 38 | 530016432 | Screw Price: $1.99 |
| 39 | 530016133 | Bolt-Bar Price: $1.99 |
| 40 | 530057910 | Plate-Bar Price: $1.99 |
| 41 | 530015917 | Nut-Bar Price: $0.99 |
| 44 | 530015826 | Pin-Bar Adjust Price: $1.99 |
| 45 | 530038593 | Retainer-Bar Adjust Price: $0.99 |
| 46 | 952051338 | Accy-18" Chain Price: Call Us |
| 47 | 952044689 | Accy-18" Bar Price: Call Us |
| 49 | 530016432 | Screw Price: $1.99 |
| 50 | 530057888 | Handle-Front Price: $14.99 |
| 52 | 530057924 | Assy-Oil Pick Up Price: $2.99 |
| 53 | 545227101 | SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 54 | 530057931 | Assy-Oil Pump Price: $10.99 |
