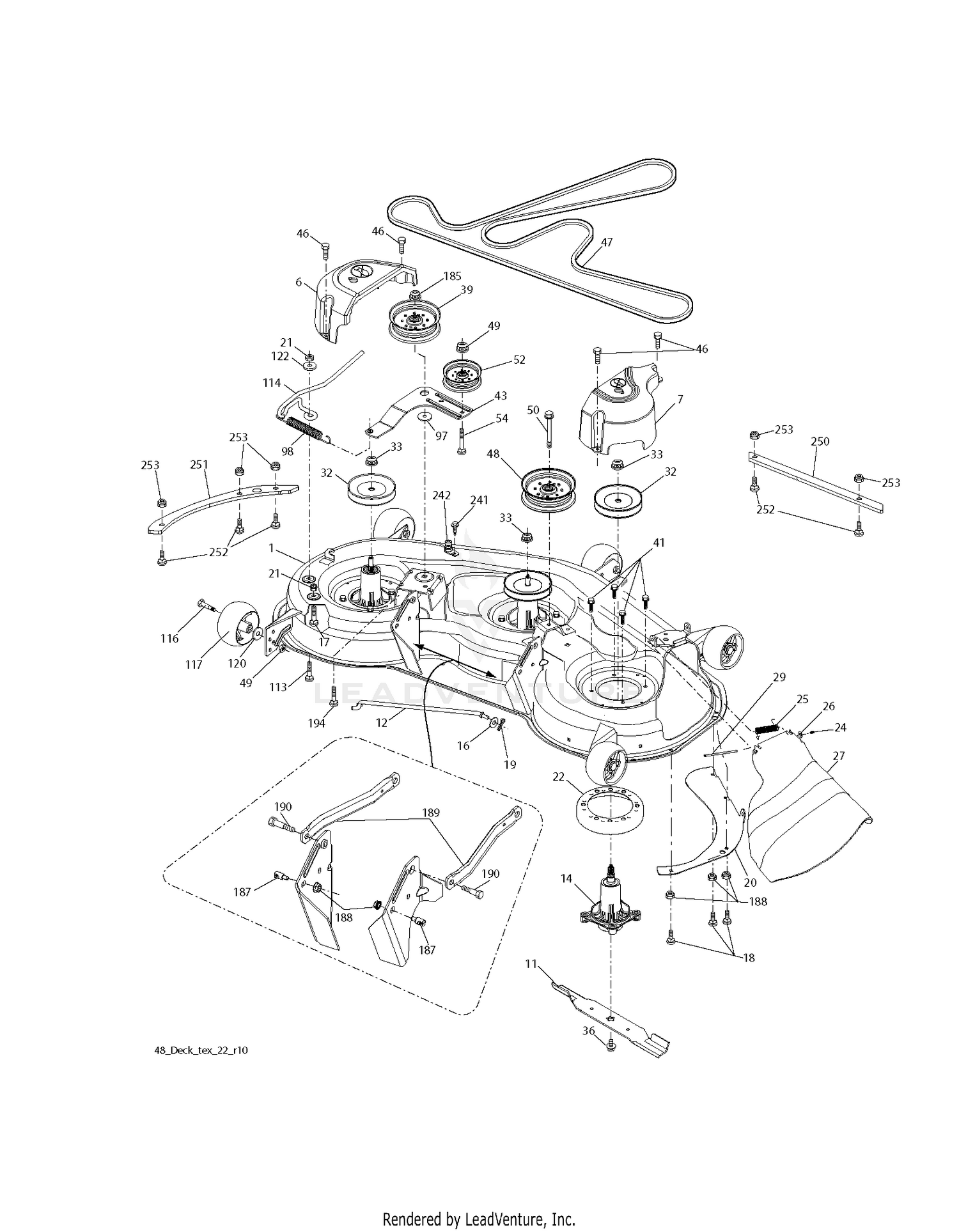

| Ref | Part Number | Description |
|---|
| 1 |
105-9238 |
HOSE-HYD Price: $104.92 |
| 1 |
532418224 |
DECK.SVC 48".4GWB.O Price: $449.99 |
| 2 |
121-3103 |
TUBE ASM Price: $137.84 |
| 4 |
114-8143 |
TUBE-HYD Price: $96.34 |
| 5 |
121-3104 |
TUBE ASM Price: $146.43 |
| 6 |
115-9121 |
TUBE-HYD Price: $61.15 |
| 7 |
114-8142 |
TUBE-HYD Price: $76.53 |
| 8 |
105-3990-0P |
BRACKET-TUBE SUPPORT This part replaces 105-3990-03. Price: $15.80 |
| 9 |
340-70 |
NUT-LOCK Price: $2.10 |
| 11 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 12 |
115-1794 |
SCREW-HHF Price: $1.73 |
| 12 |
532404851 |
ROD.ANTI.SWAY.48/54"K4 Price: $22.99 |
| 13 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 14 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 14 |
587820301 |
KIT.MANDREL.GREASEABLE.TALL Price: $49.99 |
| 15 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 16 |
104-5511 |
HOSE -HYD Price: $88.82 |
| 16 |
596133201 |
Washers Price: $5.99 |
| 17 |
100-5629 |
HOSE ASM Price: $111.26 |
| 17 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872110505. Price: $2.99 |
| 18 |
104-5512 |
HOSE-HYD Price: $76.52 |
| 18 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO Price: $2.99 |
| 19 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 19 |
99-3579 |
HOSE-HYD Price: $102.35 |
| 20 |
131-7758 |
HOSE ASM Price: $130.87 |
| 20 |
531167501 |
SERVICE KIT BAFFLE BAFFLE This part replaces 532174378. Price: $12.99 |
| 21 |
340-166 |
FITTING-TEE, HYD Price: $47.31 |
| 21 |
596040501 |
Hardware Price: $2.99 |
| 22 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532174493. Price: $6.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $4.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532180655 |
DEFLECTOR.ASM.BLACK.48" This part replaces 532181707. Price: $39.99 |
| 29 |
595297001 |
Rods Price: $4.99 |
| 32 |
532173435 |
MANDREL.PULLEY.38.BRIGHT.ZINC This part replaces 532153532. Price: $19.99 |
| 33 |
596134801 |
Nuts Price: $1.00 |
| 36 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 584309301. Price: $6.99 |
| 39 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH This part replaces 532197380. Price: $37.99 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 43 |
531169301 |
SERVICE KIT ARM.IDLER This part replaces 532196065. Price: $9.99 |
| 47 |
593773401 |
Belts- 197242 Price: $54.99 |
| 48 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 50 |
596564004 |
SCREW TT 3/8-16X2.31 UNC This part replaces 817490636. Price: $1.99 |
| 52 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 54 |
596136101 |
GSPW Bolts Price: $2.99 |
| 97 |
532178515 |
WASHER Price: $5.99 |
| 98 |
547878302 |
SPRING BELT TENSIONER BLACK This part replaces 532196105. Price: $5.99 |
| 113 |
596435701 |
Bolts Price: $2.99 |
| 114 |
532197451 |
ROD.TENSION.RELIEF.TEX (2 2) Price: $14.99 |
| 116 |
596434404 |
Bolts Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY Price: $8.99 |
| 120 |
596134901 |
GSPH Price: $2.99 |
| 122 |
532187557 |
BUSHING.RELIEF.TENSION Price: $7.99 |
| 185 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 187 |
593824001 |
STUD.W/"D"ANTI-ROTATION Price: $3.99 |
| 188 |
596135701 |
GSPW Nuts Price: $2.99 |
| 189 |
536050602 |
LINK FIXED MOWER DRAWBAR BLACK This part replaces 587140502. Price: $5.99 |
| 190 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 194 |
874490736 |
BOLT.HEX.WASHER.HEAD.7/16-24X Price: $9.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 250 |
585318005 |
PLATE.REIN.FRNT.BOLTON.48X431 Price: $7.99 |
| 251 |
585322405 |
PLATE.REIN.SIDE.BOLT.ON.48X431 Price: $11.99 |
| 252 |
592807801 |
BOLT CUP HEAD SQUARE NECK 1/4- Price: $2.99 |
| 253 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
