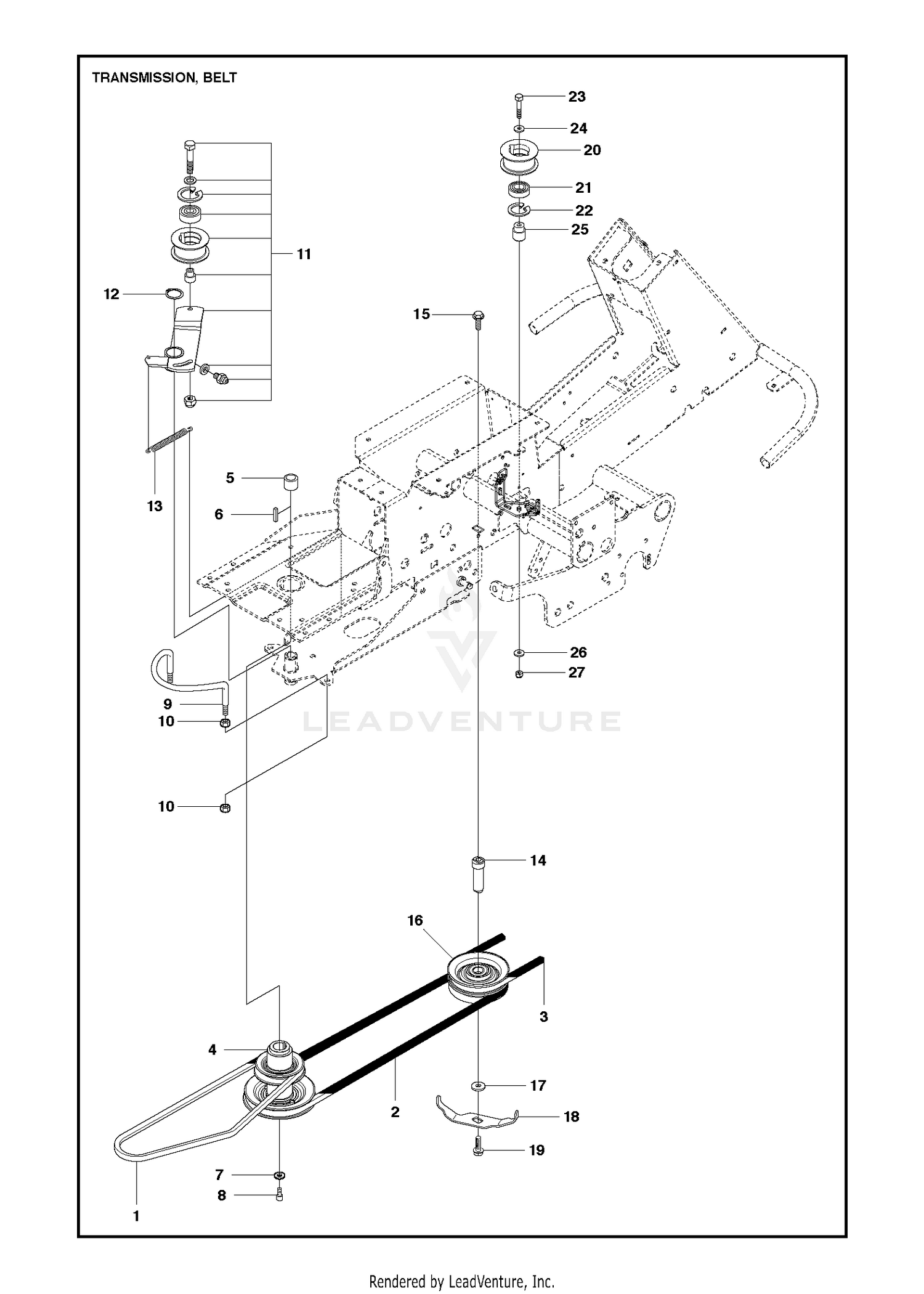

TRANSMISSION
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 580994701 | BELT This part replaces 506991901. Price: $24.99 |
| 2 | 589533501 | NEEDS DESCRIPTION Price: Call Us |
| 3 | 593806401 | NEEDS DESCRIPTION This part replaces 589531901. Price: $49.99 |
| 4 | 535482401 | PULLEY Price: $69.99 |
| 5 | 506509201 | SPACER Price: $9.99 |
| 6 | 506555901 | KEY Price: $3.99 |
| 7 | 506597501 | WASHER Price: $6.99 |
| 8 | 506556002 | SCREW Price: $5.99 |
| 9 | 506664501 | BELT GUIDE Price: $19.99 |
| 10 | 105-3735 | CONTROL PLATE ASM Price: $167.82 |
| 10 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 12 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 13 | 506665601 | SPRING Price: $24.99 |
| 14 | 544426102 | NEEDS DESCRIPTION Price: Call Us |
| 15 | 506675402 | BOLT Price: $5.99 |
| 16 | 535482201 | PULLEY Price: $64.99 |
| 17 | 506775701 | WASHER Price: $4.99 |
| 18 | 544405301 | BELT GUIDE Price: $6.99 |
| 19 | 506597401 | BOLT This part replaces 506570105. Price: $5.99 |
| 20 | 505153901 | BELT TENSIONER WHEEL ASSY This part replaces 506928901. Price: $54.99 |
| 20 | 98-9662 | LEVER-CONTROL, SPEED Price: $72.44 |
| 21 | 738210404 | BALL BEARING 6004-2RS1 Price: $9.99 |
| 22 | 735313810 | RETAINING RING Price: $2.99 |
| 23 | 725246151 | BOLT Price: $4.99 |
| 24 | 734116441 | SPACER Price: $3.99 |
| 25 | 544002901 | NEEDS DESCRIPTION Price: Call Us |
| 26 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 27 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 30 | 98-9572 | LEVER-CONTROL, SPEED Price: $47.15 |
| 40 | 105-3788 | O-RING Price: $2.90 |
| 50 | 98-7602 | PIN-SPRING Price: $0.64 |
| 60 | 98-9594 | WASHER-PLAIN Price: $2.49 |
| 70 | 98-9589 | NUT Price: $1.46 |
| 80 | 98-9658 | GOVERNOR LEVER ASM Price: $34.84 |
| 90 | 98-9663 | LEVER-STOP, ENGINE Price: $13.34 |
| 100 | 98-7601 | SEAL-OIL Price: $7.88 |
| 110 | 98-9472 | SPRING-RETURN Price: $8.91 |
| 120 | 98-9664 | SHAFT-LEVER, STOP Price: $33.92 |
| 130 | 98-9637 | GASKET Price: $3.98 |
| 140 | 98-7692 | BOLT Price: $0.92 |
| 150 | 127-0401 | BOLT-HEX Price: $0.39 |
| 160 | 98-7654 | GASKET Price: $8.84 |
| 170 | 105-3710 | STUD Price: $1.16 |
| 180 | 100-2203 | NUT-FLANGE Price: $0.87 |
| 190 | 117-7565 | BOLT-ADJUSTING Price: $2.66 |
| 200 | 117-7566 | BOLT-ADJUSTING Price: $4.96 |
