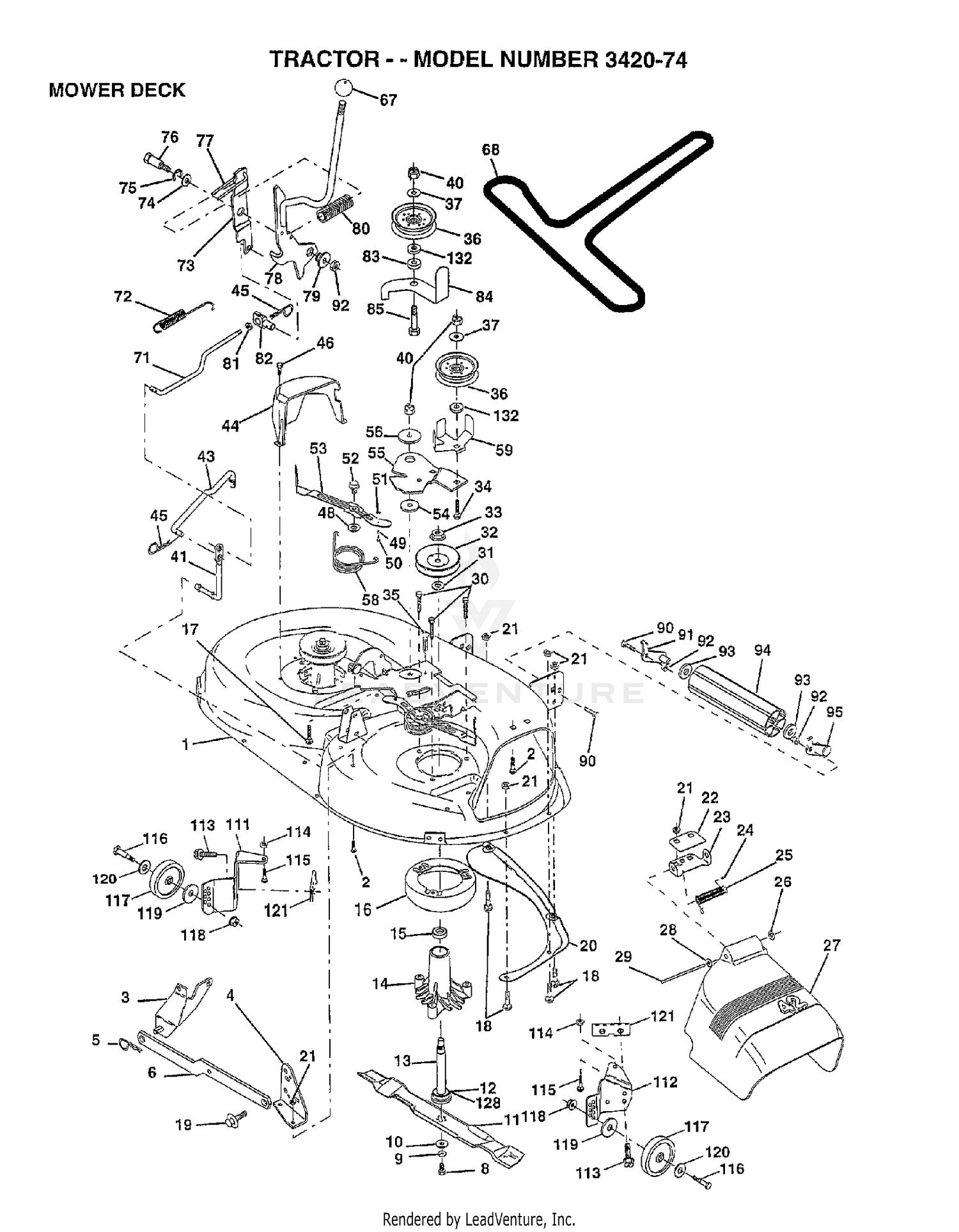

| Ref | Part Number | Description |
|---|
| 1 |
3249-11 |
SCREW-MACHINE Price: $0.54 |
| 1 |
532144393 |
Deck Asm MWR 42"weldment (AYP part number) Price: $139.99 |
| 2 |
29-6163 |
SWITCH-MICRO This part replaces 29-6160. Price: $91.23 |
| 2 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 3 |
29-6120-03 |
PUMP PLATE ASM This part replaces 29-6120. Price: $93.02 |
| 3 |
532138017 |
BRKT ASM SWAY BAR Price: $7.99 |
| 4 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 4 |
532138440 |
BRKT DECK SW BAR Price: $3.99 |
| 5 |
251-259 |
BEARING-BALL Price: $13.67 |
| 5 |
532085902 |
RETAINER SPRING This part replaces 532004939. Price: $1.99 |
| 6 |
3210-7 |
SCREW-HH Price: $0.61 |
| 6 |
532178024 |
BAR SWAY DECK This part replaces 532130832. Price: $5.99 |
| 7 |
29-6170 |
EXTENDED LEAF SPRING ASM Price: $45.56 |
| 8 |
322-17 |
SCREW-HH Price: $2.62 |
| 8 |
532850857 |
BLADE BOLT Price: $1.99 |
| 9 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 9 |
539990118 |
SLW 3/8 STD This part replaces 810030600. Price: $1.99 |
| 10 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 10 |
532140296 |
WASHER.BLADE Price: $2.99 |
| 11 |
353-511 |
FITTING-HYD, 90 DEG Price: $31.93 |
| 11 |
532131323 |
Price: $12.85 |
| 12 |
103-1802 |
FITTING-ELBOW, 90 DEG This part replaces 353-374. Price: $22.99 |
| 12 |
532129895 |
BEARING.BALL.#6204.(MANDREL) Price: $6.99 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $17.99 |
| 14 |
110-9695 |
HUB-PUMP This part replaces 33-4380. Price: $55.09 |
| 14 |
532128774 |
HSG MANDREL Price: $22.99 |
| 15 |
3257-32 |
KEY-WOODRUFF Price: $2.52 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 16 |
3245-1 |
SCREW-SET, HSH Price: $0.54 |
| 16 |
532174493 |
STRIPPER.MANDREL.ROUND.BLACK This part replaces 532128961. Price: $3.99 |
| 17 |
115-4523 |
COUPLING-RUBBER This part replaces 27-6560. Price: $52.81 |
| 17 |
872140614 |
BOLT This part replaces 872110610. Price: $2.99 |
| 18 |
46-6390-03 |
COUPLING-DRIVE ASM This part replaces 43-3940. Price: $80.79 |
| 18 |
872140505 |
BOLT This part replaces 532066238. Price: $2.99 |
| 19 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $2.99 |
| 20 |
125-9249 |
SPACER-COUPLER, RUBBER This part replaces 27-6600. Price: $2.15 |
| 20 |
532159770 |
BAFFLE.VORTEX This part replaces 532136888. Price: $12.99 |
| 21 |
322-6 |
SCREW-HH Price: $0.45 |
| 21 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 22 |
27-6590 |
SPACER-COUPLING, RUBBER Price: $13.38 |
| 22 |
532134753 |
Stiffener Bracket 42" deck (AYP part number) Price: $5.99 |
| 23 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 23 |
532177563 |
BRKT, DEFL. MOWER This part replaces 532131267. Price: $2.99 |
| 24 |
32534 |
Lockwasher Price: Call Us |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 25 |
322-8 |
SCREW-HH Price: $1.26 |
| 25 |
532123713 |
SPRING TORSION This part replaces 532106734. Price: $3.99 |
| 26 |
237-80 |
O-RING Price: $6.10 |
| 26 |
532110452 |
NUT PUSH M Price: $1.99 |
| 27 |
353-370 |
FITTING-ELBOW, 90 DEG Price: $74.99 |
| 27 |
532130968 |
SHIELD.DEFLECTOR.MOWER.42".BLK Price: $22.99 |
| 28 |
23-1900 |
AXLE-PUMP TUBE ASM Price: $109.23 |
| 28 |
819111016 |
WASHER Price: $5.99 |
| 29 |
23-2300 |
FILTER-OIL, TRANSMISSION Price: $11.03 |
| 29 |
532131491 |
ROD.HINGE Price: $1.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532138776. Price: $1.99 |
| 31 |
323-7 |
SCREW-HH Price: $0.65 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $1.99 |
| 32 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532153535. Price: $7.99 |
| 33 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $4.99 |
| 33 |
92-8902 |
DISCONTINUED This part replaces 22-4760. Price: Call Us |
| 34 |
32120-72 |
RING-SNAP Price: $2.09 |
| 34 |
872110614 |
BOLT Price: $3.99 |
| 35 |
532133835 |
FASTENER.XMAS.TREE Price: $3.99 |
| 35 |
86-7220 |
GEAR-PINION This part replaces 23-4810. Price: $81.33 |
| 36 |
41-8760 |
GASKET Price: $5.99 |
| 36 |
532173438 |
PULLEY.IDLER.FLAT This part replaces 532104360. Price: $14.99 |
| 37 |
110-9650 |
LEAF SPRING ASM This part replaces 29-6150. Price: $33.06 |
| 37 |
819131316 |
WASHER Price: $2.99 |
| 38 |
321-4 |
SCREW-HH Price: $0.99 |
| 39 |
3217-16 |
NUT-HEX Price: $0.25 |
| 40 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 40 |
873680600 |
LOCKNUT Price: $1.99 |
| 41 |
28-9570-03 |
LEVER-PUMP This part replaces 28-9570. Price: $264.06 |
| 41 |
532133551 |
PIVOT ROD Price: $4.99 |
| 42 |
32104-95 |
SCREW-HWH This part replaces 32104-42. Price: $0.41 |
| 43 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 43 |
532140083 |
CLUTCH ROD Price: $7.99 |
| 44 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 44 |
532140088 |
GUARD MANDREL LH BLACK This part replaces 532134236. Price: $14.99 |
| 45 |
532004497 |
RETAINER M Price: $5.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 48 |
532133944 |
WASHER Price: $2.99 |
| 49 |
532174284 |
ROLLER ASM CAM FOLLOWER This part replaces 532155066. Price: $6.99 |
| 50 |
532131340 |
BOLT Price: $2.99 |
| 51 |
532069180 |
LOCKNUT Price: $2.99 |
| 52 |
532139888 |
BOLT.SHOULDER.5/16-18 This part replaces 532105529. Price: $2.99 |
| 53 |
532184907 |
ARM BRAKE ASSY This part replaces 532131845. Price: $11.99 |
| 54 |
532178515 |
WASHER This part replaces 532133943. Price: $2.99 |
| 55 |
532155046 |
ARM IDLER 42" MOWER LT/YT Price: $7.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $2.99 |
| 58 |
532140086 |
SPRING Price: $2.99 |
| 59 |
532141043 |
GUARD, BELT Price: $3.99 |
| 67 |
539132044 |
PIGTAIL, LIGHT Price: $6.99 |
| 68 |
532144200 |
V-BELT TRIPATH Price: $32.99 |
| 71 |
532142655 |
ROD, CLUTCH ASM. This part replaces 532142427. Price: $9.99 |
| 72 |
532131870 |
RETURN SPRING Price: $11.99 |
| 73 |
532127847 |
ARM CLUTCH SECONDARY Price: $2.99 |
| 74 |
532121748 |
WASHER Price: $1.99 |
| 75 |
812000029 |
RING CLIP Price: $1.99 |
| 76 |
532128903 |
BOLT Price: $3.99 |
| 77 |
532127845 |
Keeper Spring 4 000 (AYP part number) Price: $4.16 |
| 78 |
TBD |
Price: Call Us |
| 79 |
532127498 |
BUSHING.FLANGE.E-RING.GROOVE Price: $4.99 |
| 80 |
532153701 |
SPRING-CLUTCH Price: $4.99 |
| 81 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 82 |
532142028 |
Trunnion, Threaded 3/8-16 (AYP part number) This part replaces 532007078. Price: $2.99 |
| 83 |
532120958 |
WASHER Price: $4.99 |
| 84 |
532156084 |
KEEPER.BELT.IDLER Price: $3.99 |
| 85 |
872110618 |
BOLT CARRIAGE This part replaces 872140618. Price: $2.99 |
| 90 |
874780616 |
BOLT This part replaces 874760614. Price: $3.99 |
| 91 |
532175746 |
BRACKET ASM, ROLLER (L) This part replaces 532132274. Price: $3.99 |
| 92 |
873680600 |
LOCKNUT This part replaces 532062336. Price: $1.99 |
| 93 |
819171416 |
WASHER Price: $2.99 |
| 94 |
539132264 |
MANUAL, OPERATOR Price: $3.20 |
| 95 |
532175747 |
BRACKET ASM, ROLLER This part replaces 532132273. Price: $7.99 |
| 111 |
532155197 |
BRACKET WHEEL GAUGE LH 42" DK Price: $11.99 |
| 112 |
532155198 |
BRACKET WHEEL GAUGE RH 42" DK Price: $11.99 |
| 113 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 114 |
873310500 |
NUT Price: $3.99 |
| 115 |
872110505 |
BOLT This part replaces 872110504. Price: $3.99 |
| 116 |
532004898 |
BOLT Price: $1.99 |
| 117 |
532105455 |
GUAGE WHEEL GT Price: $11.99 |
| 118 |
873680600 |
LOCKNUT This part replaces 532005394. Price: $1.99 |
| 119 |
734117201 |
WASHER This part replaces 819121414. Price: $1.99 |
| 120 |
819171512 |
WASHER Price: $3.99 |
| 121 |
532143723 |
BRACKET.EXTRUDED.GAGE.WHEEL Price: $7.99 |
| 128 |
532153390 |
WASHER FELT Price: $2.99 |
| 132 |
819132203 |
WASHER GT Price: $3.99 |
| 532130794 |
MANDREL |
ASM, LH 5PT STAR Price: $32.99 532130794 |
