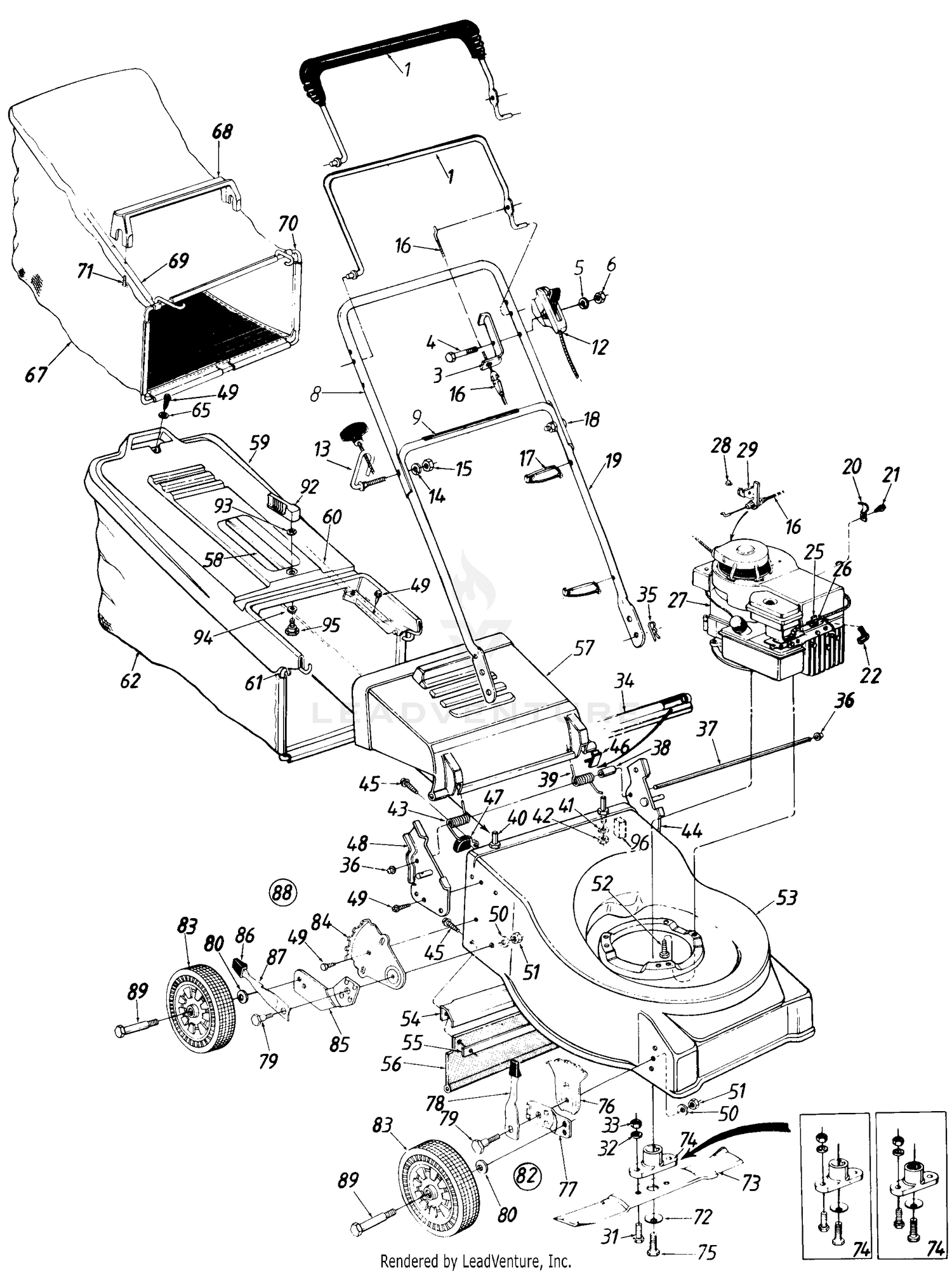

| Ref | Part Number | Description |
|---|
| 3 |
17174 |
BRACKET-CA Not Available Price: |
| 4 |
710-0136 |
Hex Bolt 1/4-20 x 1.75" Lg. Price: $3.66 |
| 5 |
936-0175 |
Spring Wash. .265 I.D. x .562 O.D. This part replaces 736-0175. Price: $3.48 |
| 6 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 8 |
749-0438D-0637 |
UPPER HANDLE Not Available This part replaces 749-0438B. Price: |
| 9 |
N/A |
UNKNOWN |
| 13 |
710-0842B |
SCREW-RECOIL HANDLE GUIDE Not Available Price: |
| 14 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 15 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 17 |
725-0157 |
Cable Tie This part replaces 726-0240. Price: $3.46 |
| 18 |
710-0671 |
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 Not Available Price: |
| 19 |
749-0907B |
Lower Handle This part replaces 749-0504C. Price: $43.95 |
| 27 |
N/A |
Engine |
| 31 |
710-1055 |
SCREW 3/8-24 C 1.00 GR5 Not Available Price: |
| 32 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 33 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 34 |
731-0858 |
EXTRUSION SEAL Not Available Price: |
| 35 |
714-0104 |
Int. Cotter Pin 5/16" Dia. Price: $3.90 |
| 36 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 37 |
747-0698B |
HINGE PIN Not Available Price: |
| 38 |
750-0566A |
Spacer, .260 x .372 x 1.030 This part replaces 750-0566. Price: $9.17 |
| 39 |
732-0577A |
TORSION SPRING Not Available Price: |
| 40 |
711-0805 |
SHOULDER PIN 3/8-24X1.43 Not Available Price: |
| 41 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 42 |
712-0711 |
Hex Jam Nut 3/8-24 Thd. Price: $3.90 |
| 43 |
732-0578A |
TORSION SPRING (RH) Not Available Price: |
| 44 |
12297A |
BRACKET ASSEMBLY Not Available Price: |
| 45 |
710-1017 |
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. Price: $7.26 |
| 46 |
731-0970B |
DEFLECTOR PLUG Not Available Price: |
| 47 |
731-0931 |
PLUG-CORNER Not Available Price: |
| 48 |
12296B-0637 |
BRACKET ASSEMBLY Not Available This part replaces 12296A. Price: |
| 49 |
710-0892 |
SCREW 1/4-14 x .625 Not Available Price: |
| 50 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 51 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 52 |
710-0654A |
Hex L-Wash. Hd. Scr. 3/8-16x 1" Lg. Price: $3.75 |
| 53 |
16998 |
DECK ASSEMBLY Not Available Price: |
| 54 |
17014 |
BAFFLE-CHU Not Available Price: |
| 55 |
17003 |
RETAINING STRIP Not Available Price: |
| 56 |
731-0669 |
Rear Flap 17.30" Lg. Price: $44.10 |
| 57 |
931-0859A |
CHUTE DEFLECTOR Not Available This part replaces 731-0859. Price: |
| 74 |
753-0484 |
Blade Adapter Kit (Keyed) Price: $21.69 |
| 76 |
787-01290A |
Height Adjustment Plate This part replaces 15261A. Price: $10.58 |
| 77 |
15262B |
Pivot Bar Price: $13.59 |
| 78 |
94832 |
Front Spring Lever This part replaces 14832. Price: $9.48 |
| 79 |
738-0507B |
Shld. Bolt .50" Dia. x .357" Price: $3.86 |
| 80 |
736-0105 |
Bell-Wash. .38" I.D. x .88" O.D. Price: $3.96 |
| 82 |
753-06761 |
Height Adj. Ass'y. Comp. (R.H.) This part replaces 14578. Price: $57.55 |
| 83 |
N/A |
Wheel Ass'y. Comp. |
| 84 |
14764C |
Index Plate Not Available Price: |
| 85 |
14765 |
BAR-PIVOT (RH) *ON Not Available Price: |
| 86 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0190. Price: $12.01 |
| 87 |
732-0417A |
SPRING LEVER Not Available Price: |
| 88 |
16106 |
ADJUSTER-H Not Available Price: |
| 89 |
N/A |
Axle Bolt |
