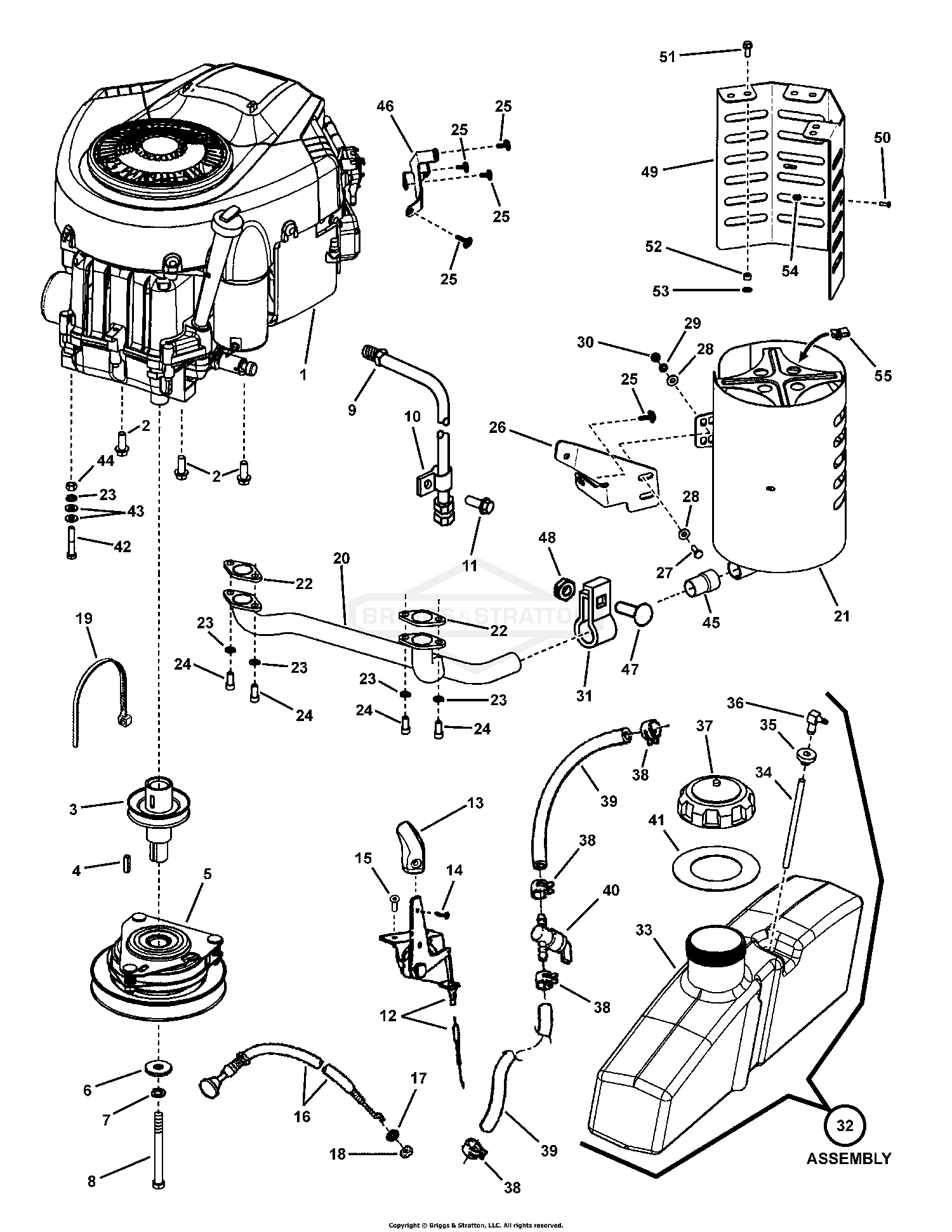

| Ref | Part Number | Description |
|---|
| 2 |
7090324 |
SCREW, 3/8-16 x 1" Hex Washer Self-Tap Price: Call Us |
| 3 |
7043343SM |
PULLEY, Engine This part replaces 7043343. Price: $106.60 |
| 4 |
5050407X8SM |
KEY, 1/4" SQ. X 1.00 This part replaces 7013250. Price: $3.52 |
| 5 |
1687746YP |
KIT, ELECTRIC CLUTCH This part replaces 1717664. Price: $349.79 |
| 6 |
704053 |
WASHER This part replaces 7029138. Price: $8.55 |
| 7 |
704007 |
LCKWSHR,7/16,SPLIT RE This part replaces 7091301. Price: $3.94 |
| 8 |
7092130SM |
CAPSCREW, Hex Head, 7/16-20 x 4-1/2 GR 5 This part replaces 7092130. Price: $3.50 |
| 9 |
1726498SM |
HOSE-OIL DRAIN .375ID This part replaces 1726498. Price: $24.79 |
| 10 |
7900020SM |
CLIP, Harness This part replaces 7900020. Price: $3.68 |
| 11 |
703823 |
BOLT, 5/16-18X0.625 This part replaces 7091811. Price: $3.39 |
| 13 |
1725337SM |
KNOB, Throttle (Red) This part replaces 7100529. Price: $11.89 |
| 14 |
7091195SM |
SCREW, Taptite Pan Head Combo, #10-16 x 3/4 This part replaces 7091195. Price: $3.84 |
| 15 |
7090999FS |
SCREW This part replaces 7090999. Price: $3.62 |
| 16 |
7100416SM |
CABLE, Choke This part replaces 7100416. Price: $39.11 |
| 17 |
7090390 |
WASHER, 3/8" Internal Tooth Lock Price: Call Us |
| 18 |
703895 |
NUT, HEX, 3/8-24 This part replaces 7090155. Price: $3.82 |
| 19 |
703586 |
TIE, SELF LOCKING This part replaces 7012080. Price: $4.05 |
| 20 |
7078122SM |
MANIFOLD, B&S V-Twin Intek This part replaces 7078122. Price: $109.45 |
| 22 |
7015352SM |
GASKET, Exhaust This part replaces 7063283. Price: $4.80 |
| 23 |
5025170SM |
WASHER, 5/16" LOCK This part replaces 7091315. Price: $3.51 |
| 24 |
7091738SM |
SCREW, 5/16-18 x 3/4 Allen Socket Head, GR 8, BZ This part replaces 7091738. Price: $4.26 |
| 25 |
7091906 |
SCREW, 1/4-20 x 3/4" Hex Head Flange, GR 5, YZ Price: Call Us |
| 26 |
7300238SM |
BRACKET, Muffler 20/22HP Briggs This part replaces 7300238. Price: $64.19 |
| 27 |
7027230 |
SCREW, 1/4-20 x 1" Hex Head Cap, GR 5 Price: Call Us |
| 28 |
7091294 |
WASHER, .28 x .63 x .06 Flat, GR 5 Price: $1.60 |
| 29 |
7090052SM |
SLW, .256X.487X.062 Z This part replaces 7090052. Price: $2.88 |
| 30 |
703127 |
NUT This part replaces 7091576. Price: $3.06 |
| 33 |
7500077SM |
FUEL TANK ASSEMBLY, RZT This part replaces 7100037. Price: $184.29 |
| 34 |
7100283SM |
DIP TUBE This part replaces 7100283. Price: Call Us |
| 35 |
1654930SM |
BUSHING, Fuel Tank, Red Rubber This part replaces 7012337. Price: $6.79 |
| 36 |
7075288SM |
ELBOW, 90 Degree This part replaces 7075288. Price: $19.78 |
| 37 |
1715917 |
CAP, Fuel, 3-1/2" Price: Call Us |
| 39 |
791766 |
LINE, Fuel This part replaces 7029982. Price: $7.27 |
| 40 |
7016325SM |
VALVE, Fuel This part replaces 7016325. Price: $16.79 |
| 41 |
7100312SM |
SEAL, Tank This part replaces 7100312. Price: $3.20 |
| 42 |
5025011X14SM |
BOLT, 5/16-18 X 1-3/4 This part replaces 7091908. Price: $3.40 |
| 43 |
7090188 |
WASHER, .34 x .69 x .08 Flat Price: Call Us |
| 44 |
7091511SM |
HN, 5/16C GR5 YZ This part replaces 7091511. Price: $3.06 |
| 45 |
7200055SM |
TUBE - MANIFOLD This part replaces 7200055. Price: $19.57 |
| 47 |
703446 |
BOLT, 5/16-18X1.25 G5 This part replaces 7091928. Price: $3.61 |
| 48 |
703409 |
NUT, 5/16-18, GR5 This part replaces 7091601. Price: $4.92 |
| 49 |
7300192SM |
HEAT SHIELD, Muffler, ERZT, MY06 This part replaces 7300192. Price: $67.99 |
| 50 |
7092117SM |
SCREW, Pan Head Phillips 8-32 X 1/2 This part replaces 7092117. Price: $2.89 |
| 53 |
703826 |
BOLT, PUSHNUT 1/4 This part replaces 1960518. Price: $2.95 |
