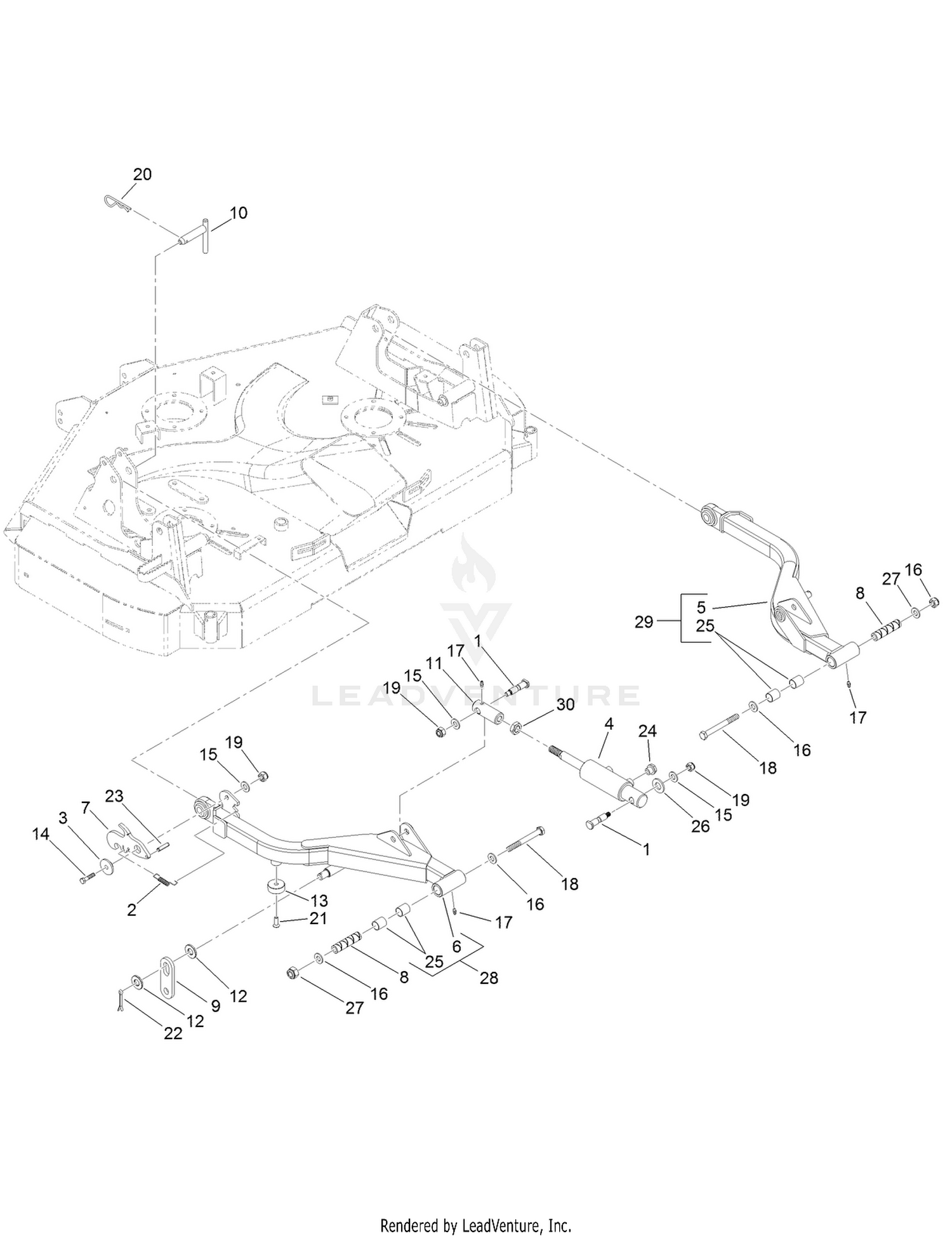

Lift Arms Assembly
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 134-0693 | PIN Price: $46.28 |
| 2 | 134-0695 | SPRING Price: $11.04 |
| 3 | 134-0710 | BUSHING Price: $8.75 |
| 4 | 134-0838 | CYLINDER-HYD, DECK LIFT Price: $232.66 |
| 5 | 134-0852 | ARM-LIFT, RH Price: $230.72 |
| 6 | 134-0853 | ARM-LIFT, LH Price: $232.97 |
| 7 | 134-0881 | LEVER Price: $22.03 |
| 8 | 134-0899 | BUSHING Price: $32.75 |
| 9 | 134-0902 | PLATE-SMALL Price: $5.09 |
| 10 | 134-0915 | PIN Price: $41.83 |
| 11 | 134-0930 | SUPPORT Price: $14.41 |
| 12 | 134-0977 | WASHER-PLASTIC Price: $6.35 |
| 13 | 134-0990 | WASHER-RUBBER Price: $27.29 |
| 14 | 134-1019 | SCREW Price: $0.75 |
| 15 | 134-1046 | WASHER Price: $0.25 |
| 16 | 134-1047 | WASHER Price: $0.25 |
| 17 | 134-1065 | FITTING-GREASE Price: $1.22 |
| 18 | 134-1075 | SCREW Price: $3.60 |
| 19 | 134-1081 | NUT Price: $0.70 |
| 20 | 134-1098 | PIN-SPRING Price: $1.17 |
| 21 | 134-1121 | SCREW Price: $0.95 |
| 22 | 134-1131 | PIN-SPRING Price: $0.32 |
| 23 | 134-1136 | PLUG-SPIROL Price: $0.47 |
| 24 | 134-1153 | CAP-BREATHER Price: $2.54 |
| 25 | 134-1187 | BUSHING Price: $8.54 |
| 26 | 134-3012 | WASHER Price: $0.27 |
| 27 | 134-0561 | NUT Price: $0.57 |
| 28 | 134-3048 | LIFT ARM ASM LH Price: $328.00 |
| 29 | 134-3046 | LIFT ARM ASM RH Price: $328.00 |
