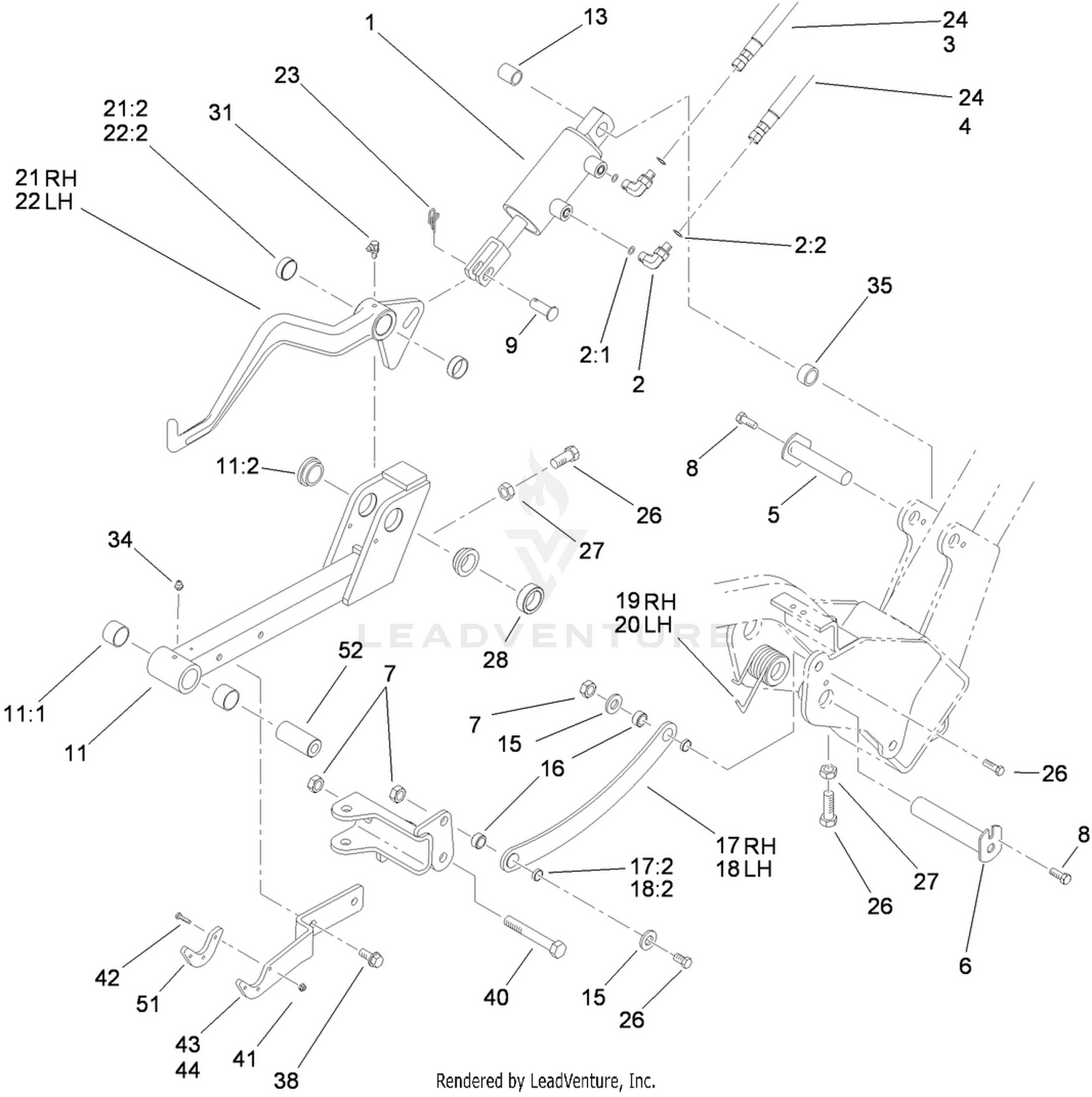

| Ref | Part Number | Description |
|---|
| 1 |
139-2651 |
CYLINDER, HYD This part replaces 105-3821. Price: $671.34 |
| 2 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 3 |
147-7990 |
HOSE ASM, HYD HP SA This part replaces 108-6505. Price: $47.86 |
| 4 |
112-9193 |
HOSE-HYD Price: $70.10 |
| 5 |
140-5248 |
PIN-PIVOT RAM, WELDED This part replaces 10-6060. Price: $25.64 |
| 6 |
94-8198 |
PIN Price: $31.05 |
| 7 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 8 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 9 |
HY4486 |
NUT UNF 1/2"NYLOC EXT THIN5/16 This part replaces 283-8. Price: $1.36 |
| 11 |
99-4115 |
FRONT LIFT FRAME ASM Price: $384.07 |
| 13 |
105-3838 |
SPACER Price: $10.45 |
| 15 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 16 |
99-4201 |
TUBE-SPACER Price: $10.91 |
| 17 |
99-4258 |
RH LINK BRACKET ASM Price: $51.12 |
| 18 |
99-4260 |
LH LINK BRACKET ASM Price: $51.12 |
| 19 |
105-3809 |
SPRING-TORSION, RH Price: $14.89 |
| 20 |
105-3818 |
SPRING-TORSION, LH Price: $14.89 |
| 21 |
99-4213 |
RH LIFT ARM ASM Price: $303.22 |
| 22 |
99-4212 |
LH LIFT ARM ASM Price: $303.22 |
| 23 |
112-1491 |
PIN-COTTER Price: $0.87 |
| 24 |
93-2254 |
HYD HOSE ASM Price: $65.17 |
| 26 |
325-7 |
SCREW-HH Price: $1.53 |
| 27 |
3218-5 |
NUT-JAM Price: $0.27 |
| 28 |
93-2384 |
SPACER-CARRIER Price: $9.09 |
| 31 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 34 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 35 |
74-3730 |
SPACER-SPINDLE, REAR Price: $5.06 |
| 38 |
32144-69 |
SCREW-HWHTF Price: $1.58 |
| 40 |
325-14 |
SCREW-HH Price: $2.64 |
| 41 |
3296-54 |
NUT-LOCK Price: $3.59 |
| 42 |
3250-17 |
SCREW-PPH Price: $1.76 |
| 43 |
99-4111-01 |
PLATE-TRANSPORT, 1 AND 3 Price: $49.03 |
| 44 |
99-4112-01 |
PLATE-TRANSPORT, 2 Price: $47.73 |
| 51 |
99-4225 |
PAD-WEAR Price: $10.18 |
