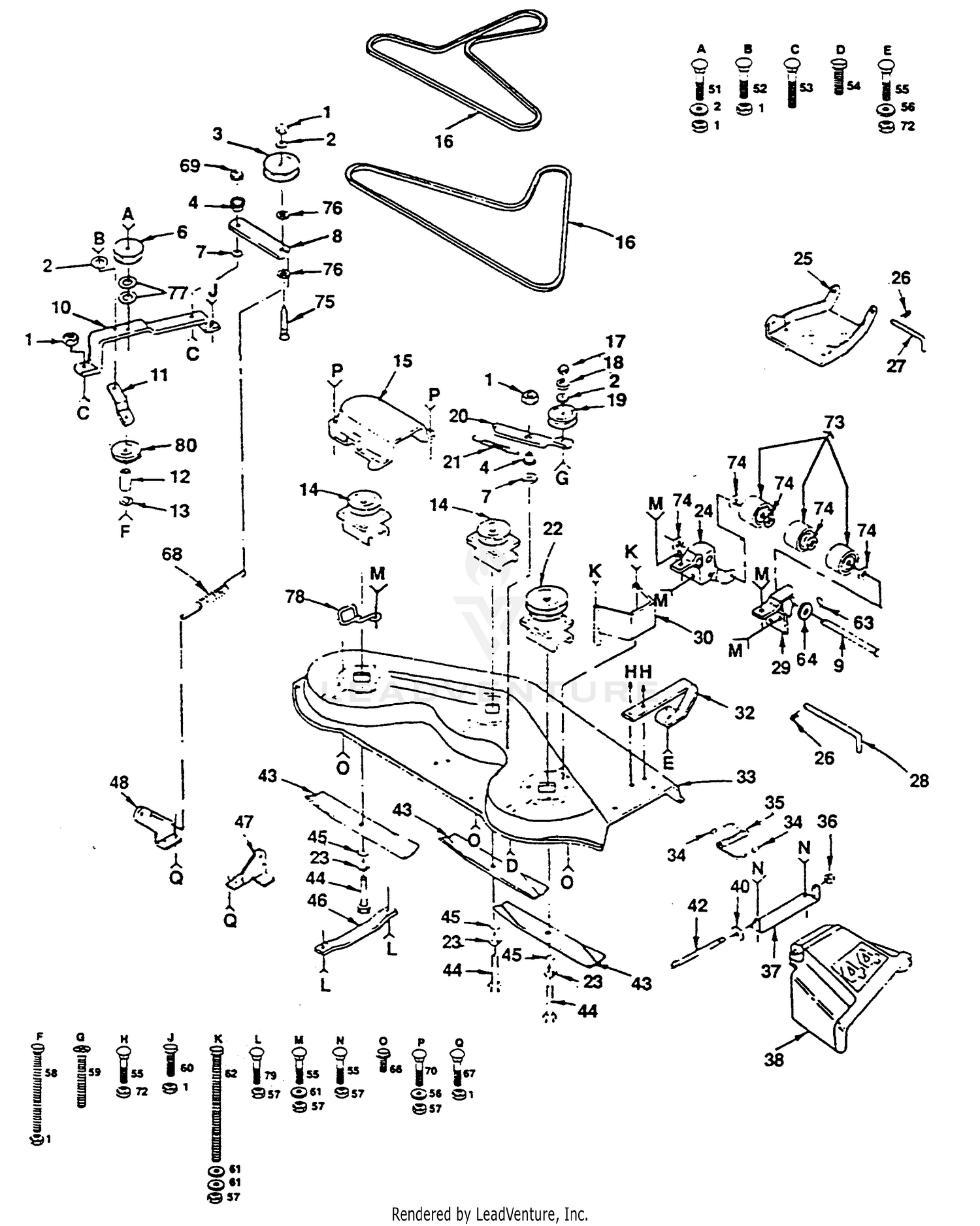

MOWER

MOWER

Parts (74)

RefPart NumberDescription
1 873680600 Locknut 3/8 x 16 Price: $1.99
2 819131612 Washer 13/32 x 1 x 12 Ga. This part replaces 819131614. Price: $3.99
3 532121316 Pulley, Idler Price: $22.99
4 532106902 Spacer Price: $2.99
6 532124858 Pulley, Idler Price: $32.98
7 532106513 Washer, Wear Price: $2.99
8 532121425 Arm, Idler Price: $4.06
9 532109776 Pin, Pivot Price: $8.99
10 532106523 Bar, Support, Idler Price: $13.32
11 532106522 Brace, Idler, Deck Price: $2.99
12 532121236 Spacer Price: $2.38
13 819131316 Washer 13/32 x 13/16 x 16 Ga. Price: $2.99
14 532136819 JACKSHAFT.2ND.44" This part replaces 532136818. Price: $78.99
15 532106214 Guard Price: $22.99
16 532106085 V-Belt Price: $24.99
17 873220600 Nut, Hex 3/8 x 16 Price: $3.99
18 539990118 WASHER.3/8 This part replaces 810040600. Price: $1.49
19 532102932 Idler, Flat Price: $22.99
20 532106526 Arm, Idler, Deck Price: $12.99
21 532007644 SPRING This part replaces 532124885. Price: $6.23
22 532121705 Mandrel, Primary This part replaces 532121704. Price: $123.99
23 539990118 WASHER.3/8 This part replaces 810030600. Price: $1.49
24 532109599 Bracket, Lift, LH Price: $15.31
25 532105662 Link, Parallel Price: $15.31
26 532004921 Retainer Spring This part replaces 532124961. Price: $3.99
27 532105744 Pin, Front, Hinge Price: $9.99
28 532109835 Pin, Rear, Hinge Price: $13.61
29 532109600 Bracket, Lift, RH Price: $23.03
30 532108119 Guard, Belt, RH Price: $12.60
32 532136321 Runner, RH Price: $6.99
33 532144729 MOWER HOUSING This part replaces 532121423. Price: $262.82
34 532105304 Cap, Sleeve Price: $2.99
35 532123713 Spring Price: $3.99
36 532110452 Nut, Push Price: $1.99
37 532137607 Bracket, Deflector Price: $3.99
38 532109785 Guard, Discharge Price: $22.99
40 734116301 WASHER - 15X7.3X1.6 This part replaces 819111016. Price: $2.02
42 532106735 Rod, Hinge Price: $4.99
43 532025034 This part replaces 532106635. Price: $19.99
44 874610624 Bolt, Hex 3/8-24 x 1 1/2 Gr.5 Price: $3.99
45 819132012 Washer 13/32 x 1 1/4 x 12 Ga. Price: $2.99
46 532007631 Runner, Mower LH This part replaces 532125074. Price: $11.99
47 532123807 Bracket, Suspension, Rear, RH Price: $12.33
48 532123808 Bracket, Suspension, Rear, LH Price: $6.73
51 872140614 Bolt, Carriage 3/8-16 x 1-3/4 Price: $2.99
52 872110608 Bolt, Carriage 3/8-16 x 1 Gr. 5 This part replaces 872140608. Price: $3.99
53 872140612 Bolt, Carriage 3/8-16 x 1 1/2 Price: $2.99
54 874760620 Bolt, Hex 3/8-16 x 1-1/4 Price: $3.99
55 539990316 RHSNB.5/16-18.X3/4.GR.5.ZD This part replaces 872140506. Price: $1.49
56 734116301 WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.02
57 873800500 Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69
58 874780648 BOLT This part replaces 874760648. Price: $1.99
59 874110632 Screw, Flat Head 3/8-16 x 2 Price: $2.99
60 874780616 Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 This part replaces 874760616. Price: $3.99
61 734116301 WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.02
62 874760580 Bolt, Hex 5/16-18 x 5 Price: $2.99
63 876020412 Pin, Cotter Price: $3.99
64 532052160 Washer This part replaces 819151616. Price: $3.99
66 874780612 Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 This part replaces 817490612. Price: $3.99
67 872140606 Bolt, Carriage 3/8-16 x 3/4 Price: $3.99
68 532102727 Spring, Extension Price: $6.99
69 873680600 Nut This part replaces 873930600. Price: $1.99
70 872110506 Bolt, Carriage 5/16-18 x 3/4 Price: $3.99
72 532124949 Locknut 5/16-18 Price: $3.99
73 532109729 Roller, Nose Price: $6.99
74 532052160 Washer This part replaces 819151610. Price: $3.99
75 872140620 Bolt, Carriage 3/8-16 x 2-1/2 Price: $3.99
76 734117201 WASHER This part replaces 819131210. Price: $1.99
77 734117201 WASHER This part replaces 819131410. Price: $1.99
78 532121352 Keeper, L.H. Mandrel Price: $3.00
79 872110505 Bolt, Carriage 5/16-18 x 5/8 Price: $3.49
80 532102403 Idler, Pulley Price: $22.99
358 99-9667 GASKET-SET Price: $480.92
1033 99-9668 VALVE OVERHAUL KIT Price: $243.98
