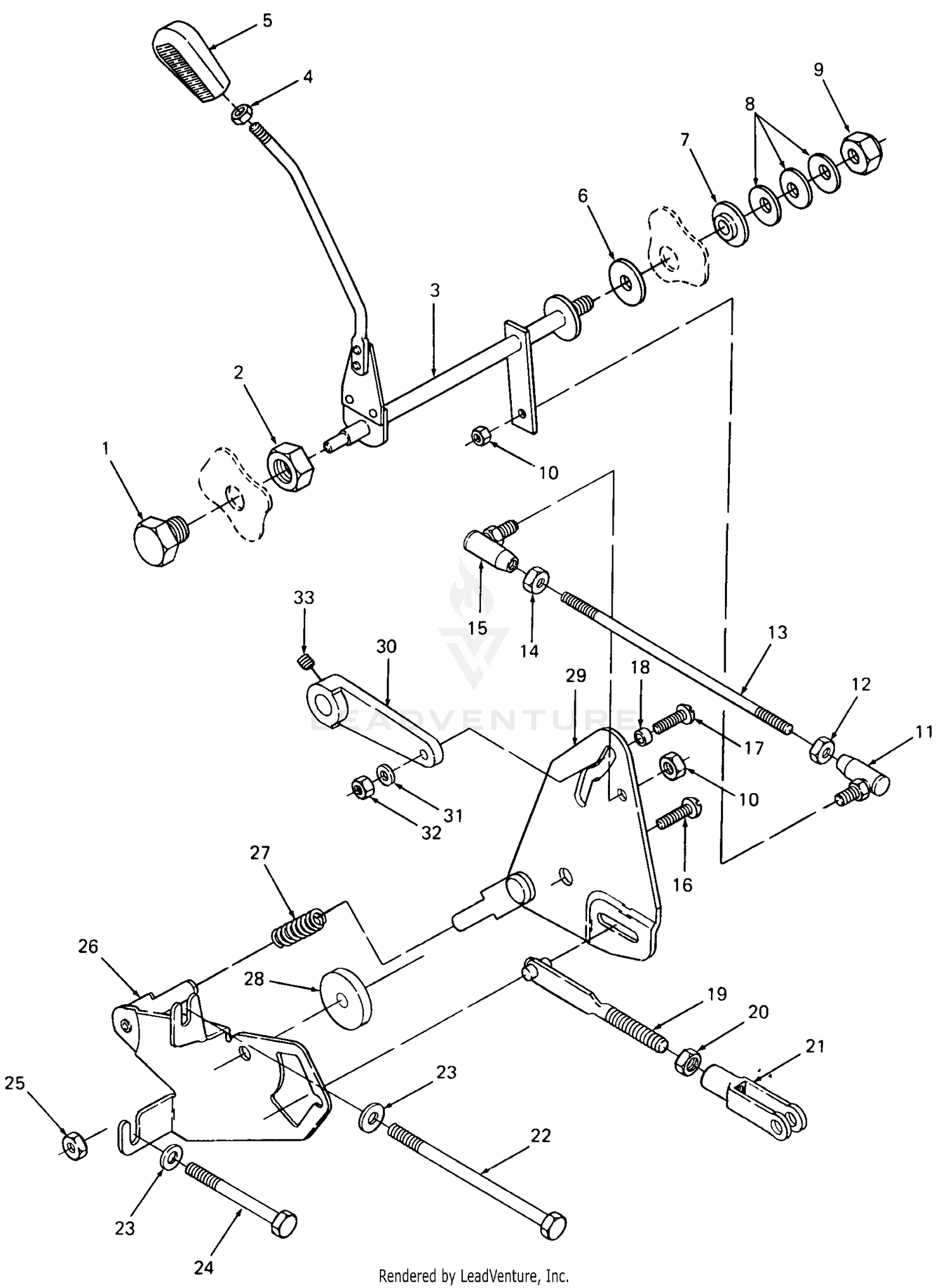

| Ref | Part Number | Description |
|---|
| 1 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 1 |
710-3033 |
BOLT Not Available Price: |
| 2 |
712-3026 |
Nut, Hex Jam, 3/4-16 GR5 Price: $4.29 |
| 2 |
812000029 |
RING CLIP Price: $3.99 |
| 3 |
532121748 |
WASHER Price: $3.99 |
| 3 |
703-1838 |
CROSS SHAFT ASSEMBLY Not Available Price: |
| 4 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $3.99 |
| 4 |
712-3008 |
HEX JAM NUT 3/8-16 GR5 Price: $4.08 |
| 5 |
532142033 |
AXLE ASSY Price: $59.99 |
| 5 |
731-3108 |
KNOB-SPEED Not Available Price: |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
723-3055 |
FRICTION WASHER Not Available Price: |
| 7 |
532137062 |
SPINDLE ASSY RH NLA Price: $21.99 |
| 7 |
748-3024 |
SHOULDER SPACER. Not Available Price: |
| 8 |
532121749 |
WASHER Price: $2.99 |
| 8 |
936-3022 |
BELL WASHER Not Available This part replaces 736-3022. Price: |
| 9 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 9 |
712-3053 |
L-NUT 1/2-20 Not Available Price: |
| 10 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 10 |
712-0237 |
Nut, Hex Center Lock, 5/16-24 This part replaces 712-0305. Price: $4.37 |
| 11 |
532126847 |
BUSHING.DRAGLINK (2 2) Price: $4.99 |
| 11 |
923-3011 |
JOINT-BALL-5/16-24 (R.H.) This part replaces 723-3011. Price: $32.80 |
| 12 |
532192757 |
ROD.TIE.WIRE.FORM This part replaces 532130465. Price: $29.99 |
| 12 |
712-3025 |
Nut, Hex Jam, 5/16-24 Trd Price: $6.24 |
| 13 |
532137061 |
SPINDLE ASSY LH Price: $23.59 |
| 13 |
747-3157 |
CONNECTING ROD Not Available Price: |
| 14 |
874011056 |
Bolt Hex 5/1-11 x 3-1/2 Price: $4.99 |
| 14 |
912-3045 |
Hex Jam Nut 5/16 Thd. L.H. Not Available This part replaces 712-3045. Price: |
| 15 |
583612401 |
LOCKNUT M This part replaces 873901000. Price: $2.99 |
| 15 |
923-3012 |
Ball Joint 5/16-24 Thd. This part replaces 723-3012. Price: $37.06 |
| 16 |
532155134 |
KIT-AXLE This part replaces 532110438. Price: $13.26 |
| 16 |
710-0971 |
SCREW 5/16-18 x 1 Not Available Price: |
| 17 |
532183226 |
FITTING.GREASE.TAPERED This part replaces 532124836. Price: $4.99 |
| 17 |
710-0166A |
Screw, Machine, 1/4-20 x 1.00 This part replaces 710-0166. Price: $6.24 |
| 18 |
750-3062 |
SPACER-3/8 Not Available Price: |
| 19 |
703-2105 |
ROD Not Available Price: |
| 20 |
912-3001 |
Nut, Jam, 3/8-24 This part replaces 712-3001. Price: $5.94 |
| 21 |
719-3013 |
Clevis Adjustment Price: $24.95 |
| 22 |
710-3226 |
Bolt, Hex Patch, 5/16-18 X 5.5 Lg GR5 Price: $12.70 |
| 23 |
936-3008 |
Washer, Flat, .344 x .750 x .120 This part replaces 736-3008. Price: $6.24 |
| 24 |
710-3227 |
HEX SCREW PATCH 5/16-18 x 3 Not Available Price: |
| 25 |
712-3007 |
Nut, Hex Jam, 5/16 Price: $6.06 |
| 26 |
903-0010 |
CAM ARM ASSEMBLY Not Available This part replaces 603-0010. Price: |
| 27 |
932-0330 |
COMPRESSION SPRING Not Available This part replaces 732-0330. Price: |
| 28 |
738-3094 |
SHOULDER SPACER Not Available Price: |
| 29 |
603-0011 |
CAM ASSEMBLY RETURN Not Available Price: |
| 30 |
748-3043 |
CONTROL-PINTLE Not Available Price: |
| 31 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 32 |
712-3006 |
HEX NUT Price: $4.05 |
