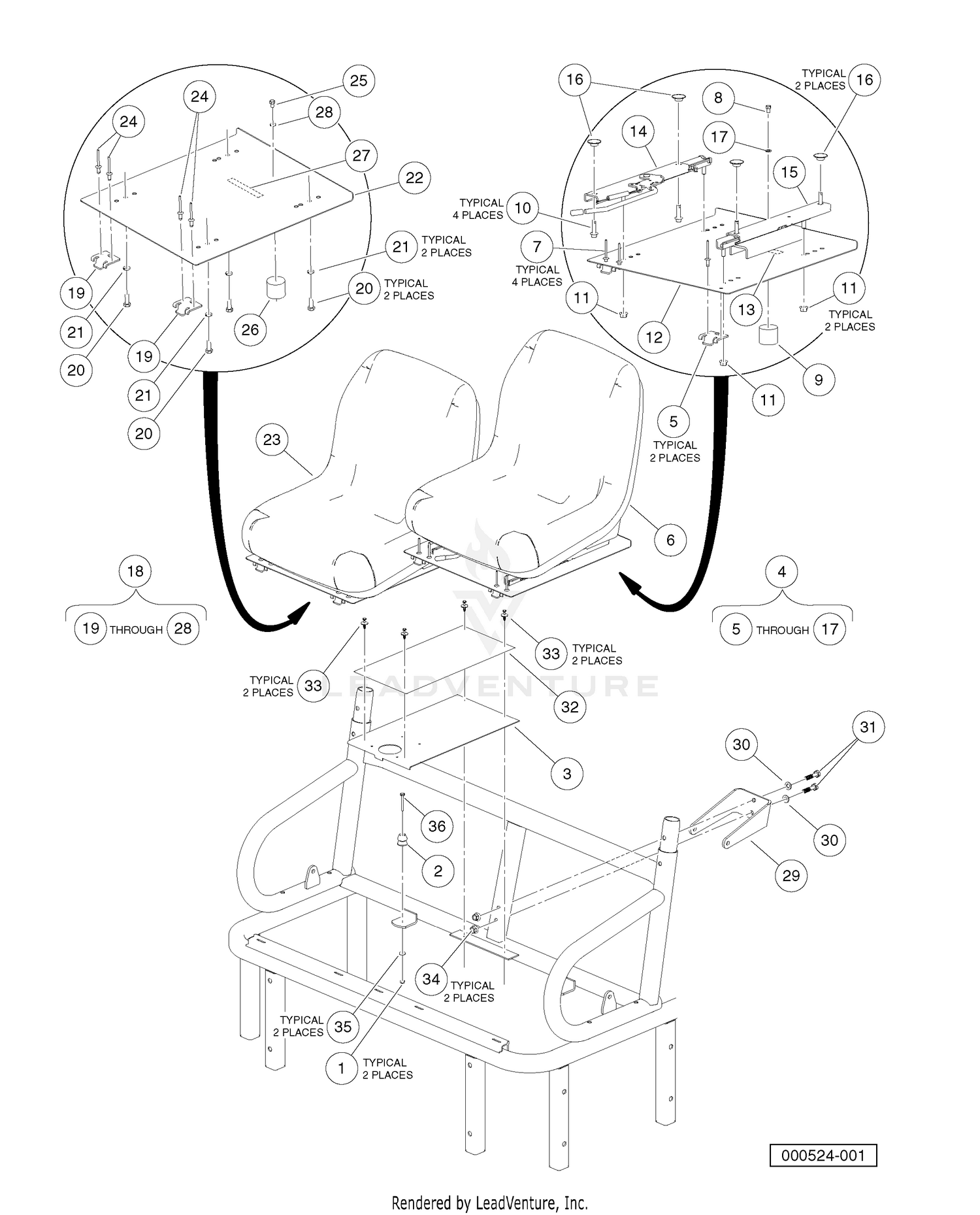

| Ref | Part Number | Description |
|---|
| 1 |
603000558 |
LOCKNUT, M6-1.00 NYLON INSERT Price: $1.99 |
| 2 |
603000773 |
SEAT HOLDER BASE Price: $24.99 |
| 3 |
603001049 |
PAN, CENTER, CLOSEOUT Price: $74.99 |
| 5 |
603000125 |
HINGE PLATE Price: $8.99 |
| 6 |
603004079 |
SEAT, BUCKET, GRAY This part replaces 603000699. Price: $379.99 |
| 7 |
603000736 |
RIVET, 1/4 X .438 BLIND Price: $6.99 |
| 8 |
603000774 |
SCREW, 6M-1.00 X 10MM HEX HEAD Price: $2.99 |
| 9 |
603000777 |
SEAT HOLDER CUP Price: $29.99 |
| 10 |
603000875 |
BOLT - FLANGED HD, M8 X 30.0 Price: $2.99 |
| 11 |
603001298 |
NUT FLG, M8 X 1.25 MECH DEF Price: $1.99 |
| 12 |
603001093 |
PAN, SEAT, DRIVER ASM Price: $229.99 |
| 13 |
603001102 |
DECAL, WARNING HOT SURFACE Price: $3.99 |
| 14 |
603001137 |
ADJUSTER, FORE/AFT Price: $64.99 |
| 15 |
603001138 |
ADJUSTER, SLIDER Price: $49.99 |
| 16 |
603001145 |
WASHER, BELL Price: $5.99 |
| 17 |
603000058 |
LOCKWASHER, 1/4 HELICAL SPLIT Price: $1.99 |
| 19 |
603000125 |
HINGE PLATE Price: $8.99 |
| 22 |
603000689 |
PAN, SEAT - PASSENGER Price: $89.99 |
| 23 |
603004079 |
SEAT, BUCKET, GRAY This part replaces 603000699. Price: $379.99 |
| 24 |
603000736 |
RIVET, 1/4 X .438 BLIND Price: $6.99 |
| 25 |
603000774 |
SCREW, 6M-1.00 X 10MM HEX HEAD Price: $2.99 |
| 26 |
603000777 |
SEAT HOLDER CUP Price: $29.99 |
| 27 |
603001102 |
DECAL, WARNING HOT SURFACE Price: $3.99 |
| 28 |
603000058 |
LOCKWASHER, 1/4 HELICAL SPLIT Price: $1.99 |
| 29 |
603001585 |
BRKT, SEATBELT, BOLT-ON Price: $24.99 |
| 30 |
603001673 |
WASHER, HARD, M10, ZN-NI/BLK Price: $1.99 |
| 31 |
603001760 |
BOLT, M10 X 45, ZN-NI/BLK Price: $11.99 |
| 33 |
603000695 |
SCREW, TUFLOK PANEL, 1/4 Price: $1.99 |
| 35 |
603000054 |
WASHER 1/4 FLAT Price: $1.99 |
