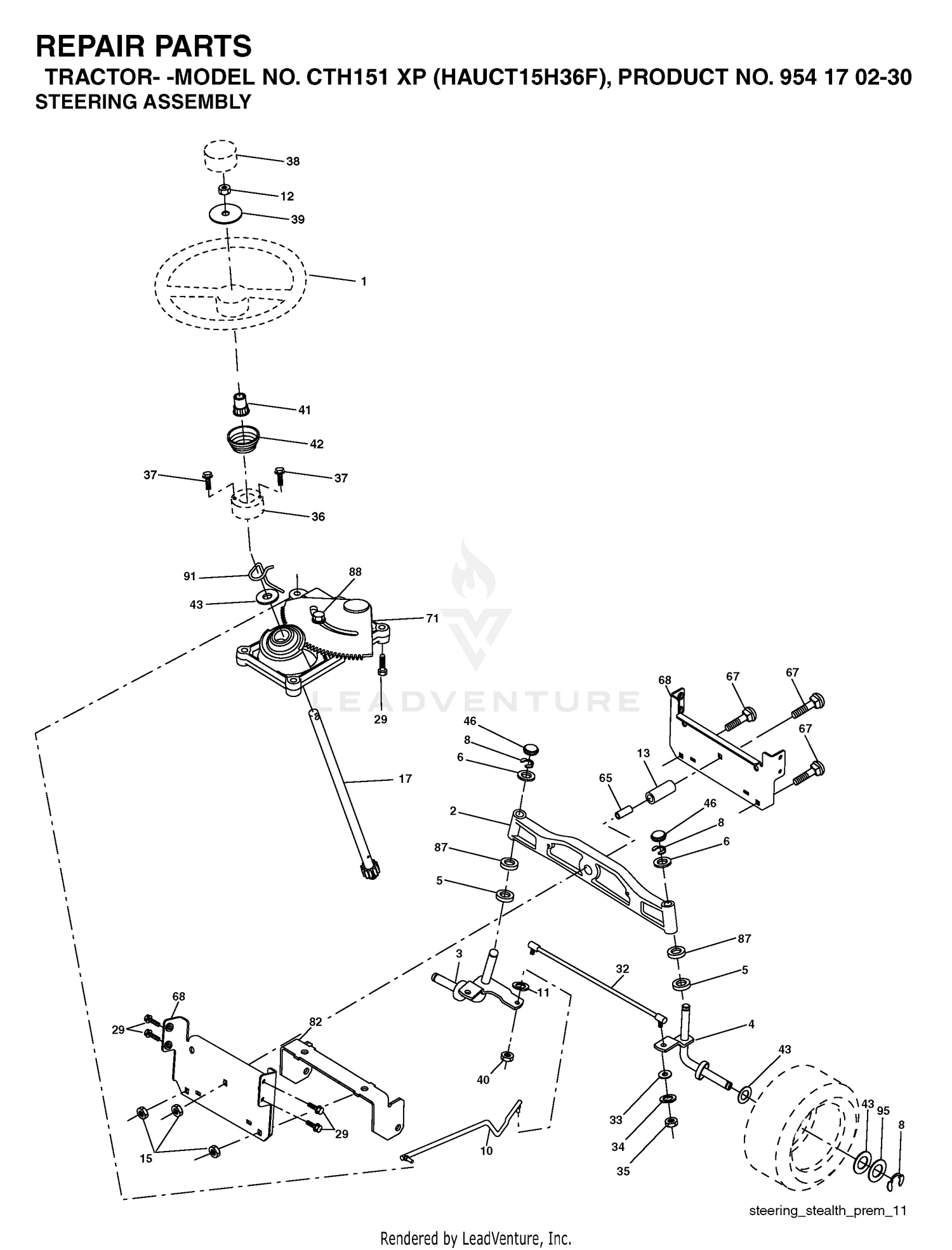

| Ref | Part Number | Description |
|---|
| 1 |
104-3537 |
PIN-CYLINDER Price: $66.99 |
| 1 |
532186094 |
STEERING WHEEL.PREM.2.BLK This part replaces 532193651. Price: $169.99 |
| 2 |
32121-9 |
PIN-ROLL, SLOTTED Price: $2.56 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532184706. Price: $119.99 |
| 3 |
3234-46 |
SCREW-HHF Price: $2.08 |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 4 |
86-5350 |
BUMPER-RUBBER Price: $46.29 |
| 5 |
3269-11 |
RIVET-POP Price: $0.68 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
325-5 |
SCREW-HH Price: $1.20 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 7 |
106-2008 |
WASHER-THRUST Price: $5.16 |
| 8 |
121-3882 |
SHAFT-PIVOT, LIFT ARM Price: $265.49 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
138-5253 |
PIVOT HUB ASM This part replaces 115-5468. Price: $73.95 |
| 10 |
256-304 |
WASHER-THRUST Price: $3.94 |
| 10 |
532175121 |
DRAGLINK.15".TIRES.2001 Price: $59.99 |
| 11 |
117-5479 |
PIN-SPRING Price: $1.45 |
| 12 |
120-8859-03 |
BLOCK-TAPPED Price: $41.09 |
| 12 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 13 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 14 |
100-6116 |
SCREW-HHF Price: $6.41 |
| 15 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 16 |
116-1399 |
LOCKNUT Price: $13.99 |
| 17 |
104-0719 |
WASHER-HARDENED Price: $9.34 |
| 17 |
532177883 |
SHAFT ASM STRG Price: $104.99 |
| 18 |
114-5641 |
WASHER-THRUST Price: $12.21 |
| 19 |
104-0721 |
WASHER-THRUST Price: $4.00 |
| 20 |
104-0720 |
SPACER Price: $35.75 |
| 21 |
114-5640-03 |
JOINT YOKE ASM Price: $448.74 |
| 22 |
145-8347 |
LIFT ARM ASM This part replaces 132-6210. Price: $736.74 |
| 23 |
132-6217 |
RH LIFT ARM ASM Price: $900.46 |
| 24 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 25 |
132-1429 |
SENSOR-TRIGGER Price: $27.80 |
| 26 |
3230-16 |
SCREW-CARR Price: $1.79 |
| 27 |
27-0410 |
SCREW-SHOULDER Price: $2.59 |
| 28 |
131-4305 |
PIN Price: $24.18 |
| 29 |
139-0956 |
HYD CYLINDER ASM This part replaces 107-4303. Price: $1,027.18 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 30 |
115-5300 |
PROXIMITY SWITCH ASM Price: $137.95 |
| 31 |
120-9000-03 |
CROSSMEMBER Price: $249.32 |
| 32 |
3296-45 |
NUT-HEX Price: $3.79 |
| 32 |
532171888 |
TIE ROD Price: $59.99 |
| 33 |
104-3577 |
WASHER Price: $0.76 |
| 33 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 34 |
136-4395-03 |
LATCH-DECK, LH Price: $29.96 |
| 34 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
136-4394-03 |
LATCH-DECK, RH Price: $29.96 |
| 35 |
873540500 |
NUT, CROWNLOCK Price: $3.99 |
| 36 |
48-7081 |
GRIP-PLASTIC Price: $7.54 |
| 36 |
532145207 |
BUSHING STRG 3/4 Price: $4.99 |
| 37 |
340-82 |
FITTING-ELBOW, 90 DEG Price: $20.57 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 38 |
532193652 |
INSERT.CAP.STRG.WH.GRAY Price: $11.99 |
| 39 |
132-1421 |
PLATE-PIVOT, LH Price: $9.15 |
| 39 |
819183812 |
WASHER 9/16"ID, 2 3/8"OD Price: $7.99 |
| 40 |
132-1422 |
PLATE-PIVOT, RH Price: $9.15 |
| 40 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 41 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 42 |
532190112 |
NEEDS DESCRIPTION Price: Call Us |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK This part replaces 532195602. Price: $3.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 67 |
872110618 |
BOLT CARRIAGE Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 71 |
531167801 |
SERVICE KIT STEERING ASM This part replaces 532175146. Price: $139.99 |
| 82 |
531170201 |
SERVICE.KIT BRACKET This part replaces 532169835. Price: $19.99 |
| 87 |
532173966 |
WASHER, FLAT .781 X 1 1/2" Price: $4.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $4.99 |
| 91 |
532175553 |
CLIP.STEERING Price: $9.99 |
| 95 |
532188967 |
WASHER.HARDENED Price: $3.99 |
