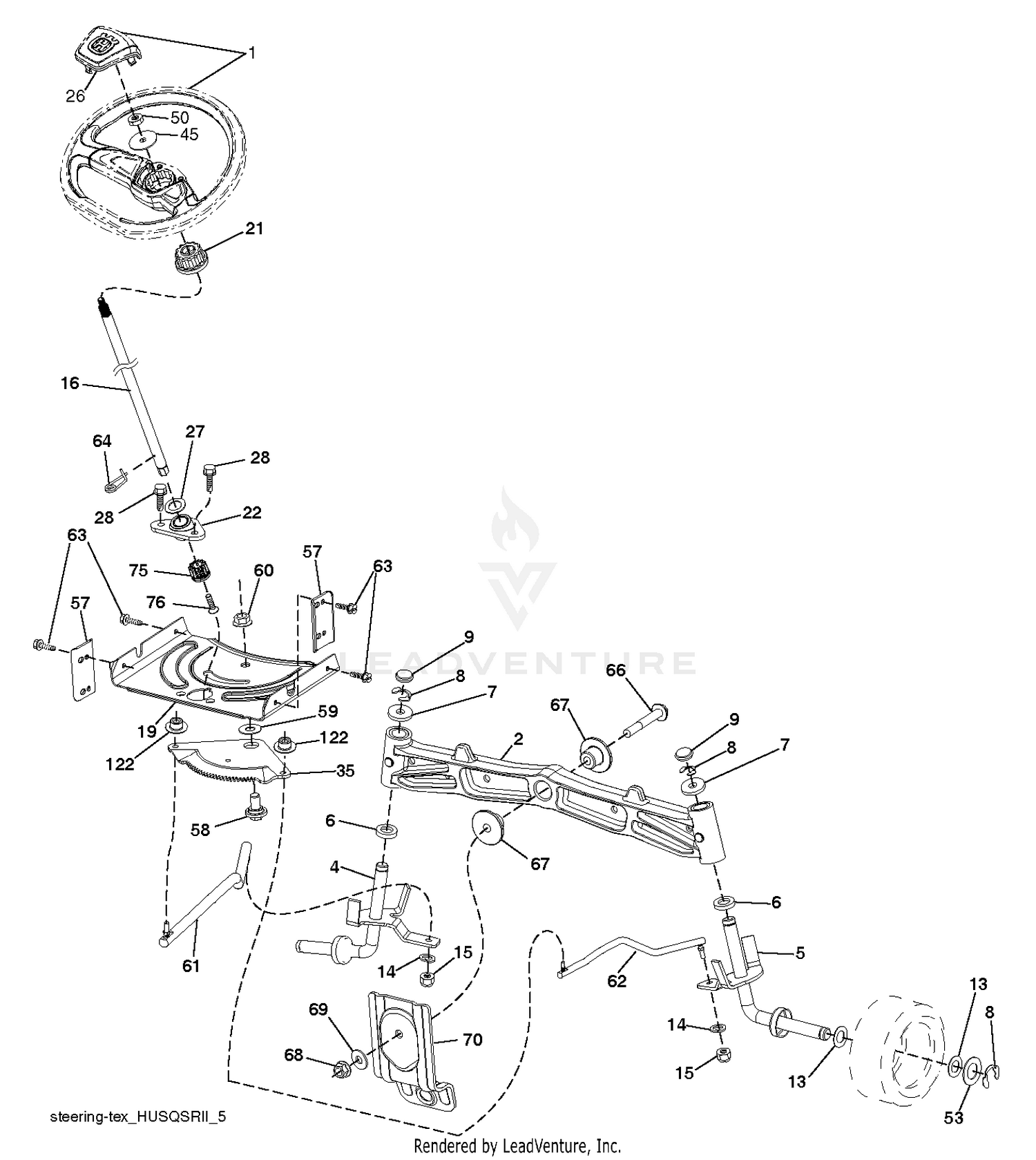

| Ref | Part Number | Description |
|---|
| 1 |
217-111 |
CAP-HUB This part replaces 242-55. Price: $22.31 |
| 1 |
597866101 |
Service Kit Price: $64.99 |
| 2 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX This part replaces 532195968. Price: $119.99 |
| 3 |
32136-1 |
NUT-SLOTTED Price: $3.46 |
| 4 |
3256-29 |
WASHER-FLAT Price: $2.59 |
| 4 |
596873601 |
SPINDLE.WELDED.LH.15"TEX.X431 This part replaces 532403087. Price: $14.99 |
| 5 |
254-62 |
BEARING-ROLLER, CONE Price: $12.61 |
| 5 |
538691201 |
SPINDLE.WLDMT.RH.15INTIRE.X431 This part replaces 532403088. Price: $19.99 |
| 6 |
115-9471 |
BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 6 |
532006266 |
WASHER THRUST Price: $4.99 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 7 |
93-0181 |
TIRE (11-14) 8 PLY Price: $212.68 |
| 8 |
217-103 |
BOLT-WHEEL Price: $2.51 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 10 |
93-0182 |
DISCONTINUED Price: Call Us |
| 11 |
242-54 |
HUB Price: $168.31 |
| 12 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 13 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
253-127 |
SEAL Price: $74.45 |
| 14 |
596238701 |
Washers Price: $3.99 |
| 15 |
325-3 |
SCREW-HH Price: $1.49 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 587016002. Price: $34.99 |
| 17 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 18 |
13-6120 |
DISCONTINUED Price: Call Us |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 19 |
67-5360 |
DECAL-DANGER Price: $14.99 |
| 20 |
13-6240 |
ADJUSTMENT ROD WA Price: $65.88 |
| 21 |
3218-6 |
NUT-JAM Price: $0.61 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 586840201. Price: $7.99 |
| 22 |
325-5 |
SCREW-HH Price: $1.20 |
| 23 |
13-6000-01 |
GEAR BOX BASE WA This part replaces 13-6000. Price: $968.55 |
| 24 |
3-3107 |
BUMPER-PEDAL, CLUTCH Price: $3.80 |
| 25 |
323-8 |
SCREW-HH Price: $1.20 |
| 26 |
3218-3 |
NUT-JAM Price: $0.25 |
| 26 |
594949101 |
Steering Price: $5.99 |
| 27 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 27 |
596933401 |
Washers Price: $2.99 |
| 28 |
235-15 |
GRIP-HANDLE Price: $11.84 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 29 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 30 |
32104-96 |
SCREW-HH Price: $5.59 |
| 31 |
20-9580 |
ROPE-LATCH Price: $47.65 |
| 32 |
13-6910-01 |
SPACER-GUIDE, ROPE This part replaces 13-6910. Price: $18.39 |
| 33 |
13-6890-01 |
GUIDE-ROPE This part replaces 13-6890. Price: $119.16 |
| 34 |
2412-40 |
CLAMP-CONDUIT Price: $6.72 |
| 35 |
3217-9 |
NUT-HH Price: $0.37 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 36 |
328-23 |
SCREW-HH Price: $13.03 |
| 37 |
3253-9 |
WASHER-LOCK Price: $1.02 |
| 38 |
3217-12 |
NUT-HEX Price: $3.12 |
| 39 |
323-2 |
SCREW-HH Price: $0.68 |
| 40 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 41 |
93-7709 |
PAD Price: $6.23 |
| 42 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 43 |
13-7460 |
PLATE-HITCH, CAUTION Price: $30.27 |
| 44 |
3259-15 |
DRIVE SCREW Price: $0.25 |
| 45 |
13-4310-01 |
TONGUE WA This part replaces 13-4310. Price: $4,199.75 |
| 45 |
587016401 |
WASHER.3/8ID.2-3/8OD.12GA.PLTD Price: $2.99 |
| 46 |
13-6200 |
PIN-HITCH, POINTED Price: $40.83 |
| 47 |
3290-343 |
PIN-HAIR Price: $0.76 |
| 48 |
13-5870-01 |
FRONT SHIELD WA This part replaces 13-5870. Price: $376.54 |
| 49 |
13-5880-01 |
DROP SHAFT SHIELD WA This part replaces 13-5880. Price: $394.15 |
| 50 |
13-5790-01 |
SIDE SHAFT SHIELD This part replaces 13-5790. Price: $199.92 |
| 50 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 51 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597070202 |
Links Price: $49.99 |
| 62 |
597070302 |
Links Price: $49.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 585338801. Price: $14.99 |
| 75 |
587738906 |
KIT.SRVC.STEERINGSHAFT.PINION This part replaces 580683701. Price: $4.99 |
| 76 |
580683601 |
SCREW HEAD SOCKET LRVB Price: $2.99 |
| 122 |
583576601 |
CAP.GEAR.SECTOR.TEX This part replaces 532444962. Price: $4.99 |
