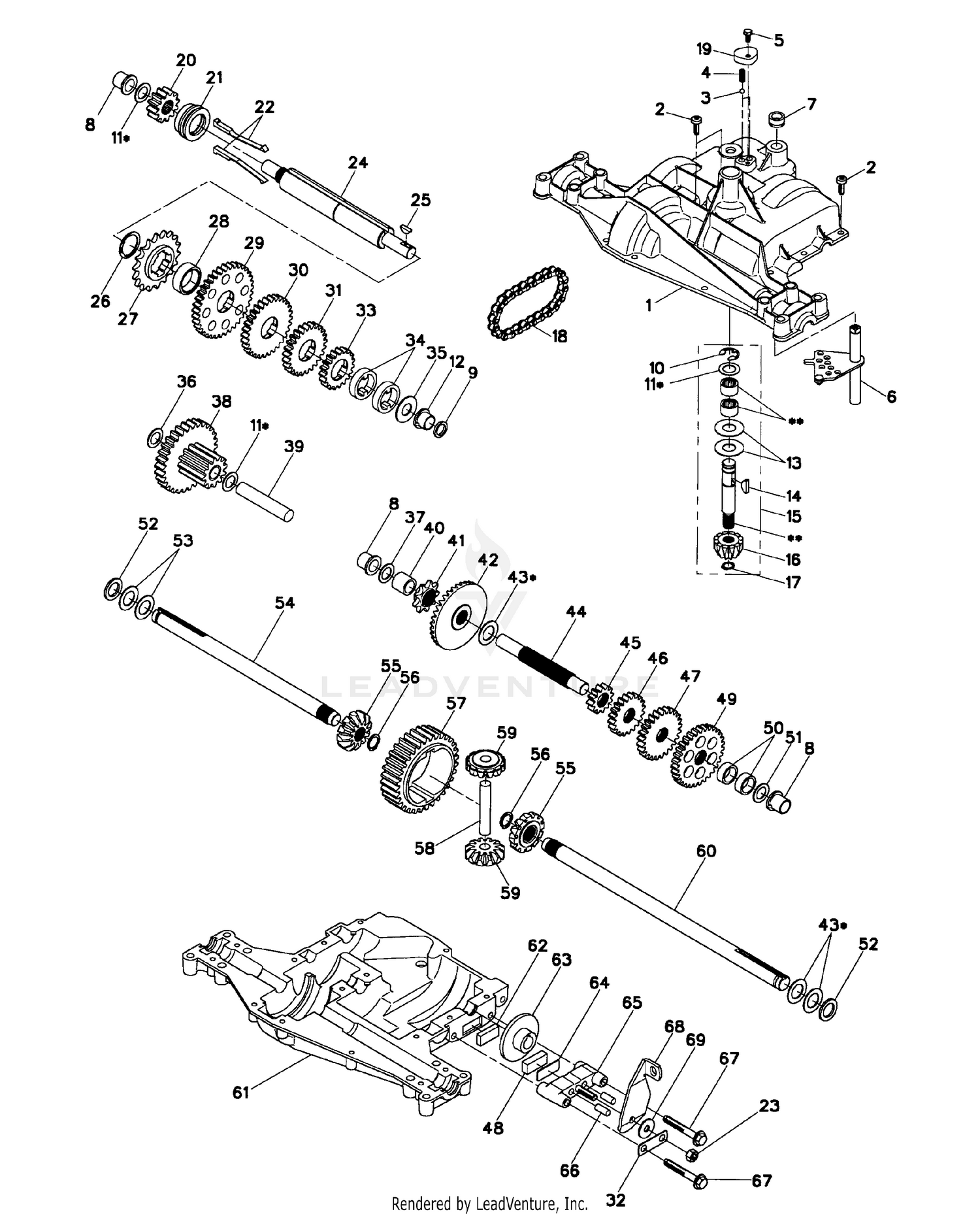

Dana Transaxle

Dana Transaxle

Parts (69)

RefPart NumberDescription
1 160939 Housing, Upper Price: Call Us
2 2274J Screw, Tapping, 1/4-20 X .734 Price: Call Us
3 134400 Ball, Detent Price: Call Us
4 105904X Spring, Detent Price: Call Us
5 160940 Screw, Tapping, No. 10-24 X .482 Price: Call Us
6 138235 Assy, Shifter Price: Call Us
7 108727X V-Ring Price: Call Us
8 148266 Bearing, Flange Price: Call Us
9 148269 Seal, Oil Price: Call Us
10 2225J Ring, Retaining Price: Call Us
11 134793 Assy, Kit, Shim, .625 Shaft Price: Call Us
12 148268 Bearing, Flange Price: Call Us
13 120415X Washer, Plain, .632 X 1.38 X .046 Price: Call Us
14 142674 Key, Woodruff, No. 9 Price: Call Us
15 161563 Assy, Kit, Input Shaft Price: Call Us
16 161564 Pinion, Bevel, 12T Price: Call Us
17 105909X Ring, Retaining Price: Call Us
18 105910X Chain, 24 Pitches Price: Call Us
19 160942 Cover, Detent Price: Call Us
20 160943 Gear, Spur, 12T Price: Call Us
21 148267 Collar, Clutch Price: Call Us
22 138236 Assy, Kit, Clutch Keys Price: Call Us
23 73810500 Nut, Lock, 5/16-24 Price: Call Us
24 142676 Shaft, Intermediate Price: Call Us
25 2244J Key, Woodruff, No. 61 Price: Call Us
26 105916X Ring, Retaining Price: Call Us
27 120470X Sprocket, 18T Price: Call Us
28 110070X Spacer, 1.131 X 1.45 X .494 Price: Call Us
29 142677 Gear, Spur, 37T Price: Call Us
30 124644X Gear, Spur, 30T Price: Call Us
31 108980X Gear, Spur, 25T Price: Call Us
32 160954 Bracket, Anti-Rotation Price: Call Us
33 134796 Gear, Spur, 19T Price: Call Us
34 134797 Spacer, 1.133 X 1.50 X .375 Price: Call Us
35 105925X Washer, Plain, .640 X 1.37 X .061 Price: Call Us
36 2228J Washer, Plain, .632 X 1.00 X .046 Price: Call Us
37 2231J Washer, Plain, .632 X 1.00 X .031 Price: Call Us
38 160944 Assy, Gear, Comb., 12T & 30T Price: Call Us
39 124639X Shaft, Idler Price: Call Us
40 120472X Spacer, .633 X .87 X .755 Price: Call Us
41 105928X Sprocket, 9T Price: Call Us
42 161565 Gear, Bevel, 36T Price: Call Us
43 134394 Assy, Kit, Shim, .750 Shaft Price: Call Us
44 120473X Shaft, Drive Price: Call Us
45 142678 Gear, Spur, 12T Price: Call Us
46 124641X Gear, Spur, 20T Price: Call Us
47 106589X Gear, Spur, 25T Price: Call Us
48 120951X Puck, Friction Price: Call Us
49 105937X Gear, Spur, 31T Price: Call Us
50 105936X Spacer, .781 X 1.00 X .375 Price: Call Us
51 2226J Washer, Plain, .632 X 1.00 X .060 Price: Call Us
52 134401 Washer, Neoprene Price: Call Us
53 2264J Washer, Plain, .758 X 1.25 X .031 Price: Call Us
54 160946 Axle, LH Price: Call Us
55 160947 Gear, Miter, 12T, Splined Price: Call Us
56 160948 Ring, Retaining Price: Call Us
57 110071X Gear, Spur, 32T Price: Call Us
58 120952X Shaft, Cross Price: Call Us
59 160949 Gear, Miter, 12T, Idler Price: Call Us
60 160946 Axle, RH Price: Call Us
61 142680 Housing, Lower Price: Call Us
62 120961X Puck, Friction Price: Call Us
63 7294J Disc, Brake Price: Call Us
64 108989X Spacer, Brake Puck Price: Call Us
65 160952 Jaw, Brake Price: Call Us
66 120954X Pin, Dowel Price: Call Us
67 160953 Screw, Tapping, 5/16-18 X 2.35 Price: Call Us
68 138244 Lever, Actuating Price: Call Us
69 108996X Washer, Plain, .321 X 1.00 X .055 Price: Call Us
