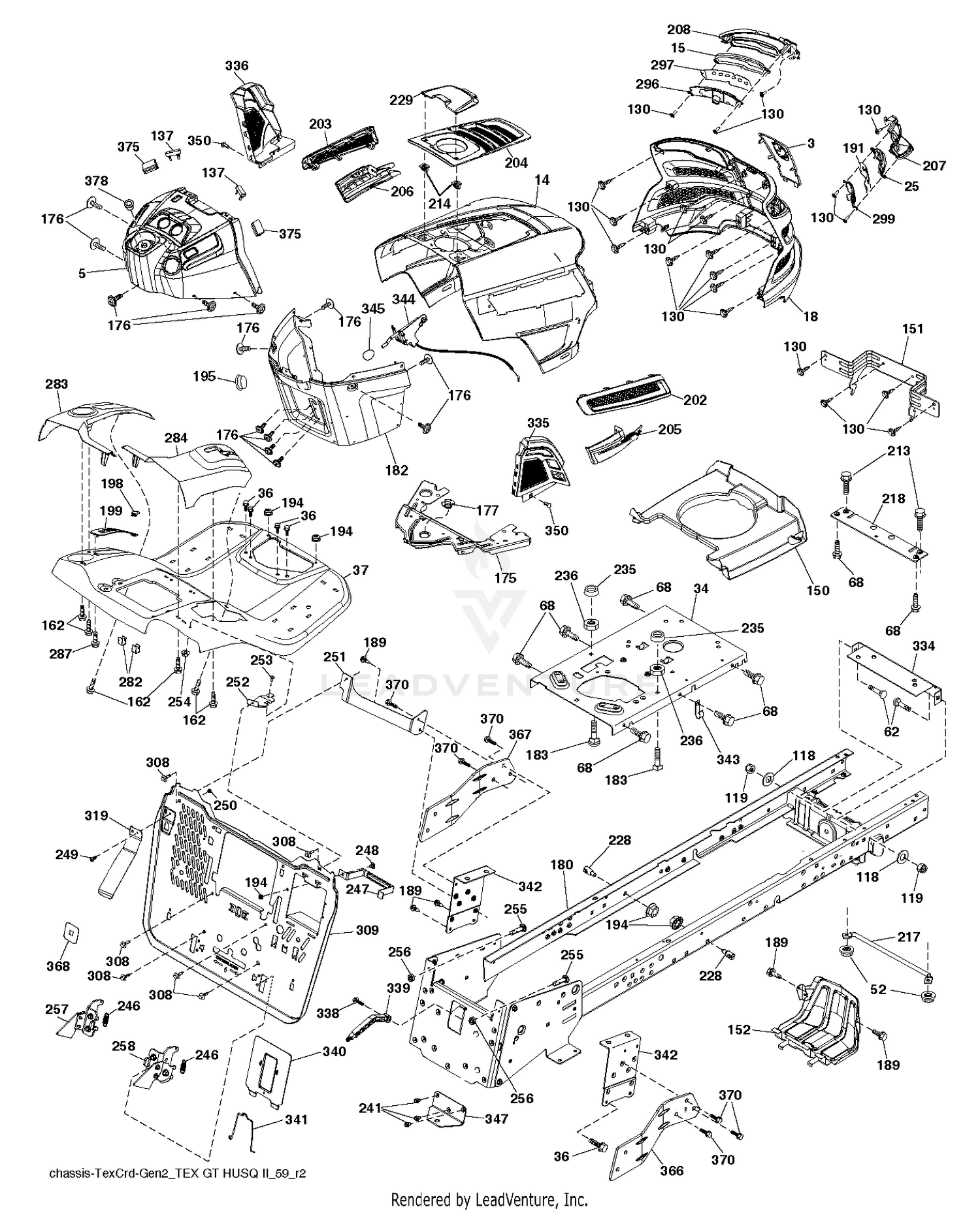

| Ref | Part Number | Description |
|---|
| 1 |
117-5199 |
HUB-PEDAL, TRACTION Price: $47.99 |
| 2 |
117-9507 |
PEDAL-ACCELERATOR Price: $12.86 |
| 3 |
532444481 |
APPLIQUE.SUBASM.GT.HUSQ.II Price: $22.99 |
| 3 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 4 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 5 |
106-3840 |
PEDAL-TRACTION Price: $88.41 |
| 5 |
590748817 |
DASH.UPR.GT2.DUAL.RD.PT Price: $39.99 |
| 6 |
92-7305 |
SPRING-EXTENSION Price: $9.99 |
| 7 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 8 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 9 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 10 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 11 |
127-2721 |
CABLE-TRACTION Price: $141.82 |
| 12 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 13 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 14 |
587483301 |
KIT.HOOD.ASM.HUSQ.GT.TEX.668 This part replaces 532441177. Price: $74.99 |
| 14 |
66-8010 |
SPACER Price: $4.19 |
| 15 |
2411-41 |
ROD END-BALL JOINT Price: $40.28 |
| 16 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 17 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 18 |
321-9 |
SCREW-HH Price: $0.27 |
| 18 |
597247201 |
Grilles This part replaces 587523401. Price: $84.99 |
| 19 |
93-2092 |
CLAMP-CABLE Price: $3.46 |
| 20 |
115-0282 |
PROXIMITY SENSOR ASM Price: $155.22 |
| 21 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 22 |
323-17 |
SCREW-HH Price: $2.05 |
| 23 |
62-4420 |
WASHER Price: $6.69 |
| 24 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 25 |
117-8066 |
MOW-STOP Price: $62.29 |
| 26 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 27 |
106-3731 |
ROD-PIVOT Price: $36.19 |
| 28 |
110-8982 |
WASHER-SPRING Price: $2.71 |
| 29 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 30 |
115-0120-03 |
PEDAL-BRAKE Price: $158.58 |
| 31 |
125-8775 |
BUSHING-FLANGE Price: $1.09 |
| 32 |
104-7179 |
PIVOT-PEDAL Price: $43.97 |
| 33 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 34 |
593944402 |
Engines Price: $74.99 |
| 34 |
99-7963-03 |
PEDAL-PARK Price: $26.63 |
| 35 |
115-5300 |
PROXIMITY SWITCH ASM Price: $137.95 |
| 36 |
115-0129 |
ROD-PAWL, BRAKE Price: $29.11 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 37 |
532441419 |
FENDER.TEX.SRD.CRD.BASE Price: $159.99 |
| 38 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 39 |
99-7214 |
PAWL-BRAKE Price: $28.35 |
| 40 |
99-7140 |
SPRING-TORSION Price: $21.98 |
| 41 |
52-2891 |
BUSHING-FLANGED, NYLON Price: $3.19 |
| 42 |
323-12 |
SCREW-HH Price: $1.14 |
| 43 |
117-0238 |
DETENT Price: $11.85 |
| 44 |
5-0652 |
SPACER Price: $5.35 |
| 45 |
283-14 |
PIN-CLEVIS Price: $2.92 |
| 46 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 47 |
117-0106 |
CABLE-BRAKE, RH Price: $117.67 |
| 48 |
117-0107 |
CABLE-BRAKE, LH Price: $113.33 |
| 49 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 50 |
115-8060 |
CLEVIS-DOUBLE Price: $15.64 |
| 51 |
115-8059 |
YOKE-CABLE Price: $11.28 |
| 52 |
596040501 |
Hardware Price: $2.99 |
| 62 |
596728201 |
Bolts Price: $3.99 |
| 68 |
596030701 |
Screws Price: $2.99 |
| 118 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 Price: $2.99 |
| 119 |
596322601 |
Nuts Price: $2.99 |
| 130 |
596321701 |
Screws Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 150 |
532439774 |
AIR.DUCT.GTV.BLACK Price: $39.99 |
| 151 |
531077401 |
SERVICE KIT PIVOT BRACKET BRAC This part replaces 532436670. Price: $37.99 |
| 152 |
532439870 |
SHIELD.BROWNING.PNT.GT.V2 Price: $14.99 |
| 162 |
596134101 |
Screws Price: $2.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195228 |
BUSHING STEERING Price: $4.99 |
| 180 |
593898801 |
CHASSIS WELDMENT.CRD2.BKP_BLTS Price: $199.99 |
| 182 |
583536501 |
DSH.LWR.COM.IN-HSE.EZ.MLCH.SLT This part replaces 532438967. Price: $69.99 |
| 183 |
595305701 |
Screws Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 191 |
586182801 |
INSERT INFLECT.RH Price: $3.99 |
| 194 |
596135701 |
GSPW Nuts Price: $2.99 |
| 195 |
532404137 |
PLUG.HOLE.DASH.LOWER.12V.BLK Price: $4.99 |
| 198 |
532441552 |
INDICATOR.DECK.LIFT.RED Price: $11.99 |
| 199 |
583371401 |
PLATE.DECKLIFT.SRD This part replaces 532418739. Price: $7.99 |
| 204 |
587485901 |
VENT.TOP.EXTERNAL.FILL.ASY.GT2 This part replaces 532440665. Price: $24.99 |
| 213 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- Price: $3.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $6.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 229 |
587485901 |
VENT.TOP.EXTERNAL.FILL.ASY.GT2 This part replaces 532441463. Price: $24.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 241 |
593337601 |
Screws Price: $3.99 |
| 246 |
591449001 |
SPRING.LTCH.BGR.GEN2.5.CRD.TEX Price: $1.99 |
| 247 |
582552602 |
STRAP.BATTERY.TCRD.GEN2.5X431 Price: $27.99 |
| 248 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872110504. Price: $2.99 |
| 249 |
586936001 |
SCREW.BUTTONHD.10-24X1/2.(2 2) Price: $2.99 |
| 250 |
596040801 |
Hardware Price: $2.99 |
| 251 |
589318904 |
BRACKET.PNT.LH.SUPP.BKPLT.EDIP Price: $12.99 |
| 252 |
581992204 |
BRACKET.PNT.RH.SUPP.BKPLT.EDIP Price: $11.99 |
| 253 |
596238401 |
BOLT CUP HEAD SQUARE NECK BOLT Price: $2.99 |
| 254 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 255 |
589392203 |
Bolts Price: $3.99 |
| 256 |
596219001 |
Nuts Price: $1.99 |
| 257 |
589746602 |
LATCH.ASM.BGR.LH.GEN2.5.STMPD Price: $19.99 |
| 258 |
589746702 |
LATCH.ASM.BGR.RH.GEN2.5.STMPD Price: $19.99 |
| 282 |
532414110 |
CLIP.RETAINER.CONSOLE.LT.HUSQ Price: $2.99 |
| 283 |
532447212 |
CONSOLE.DECKLIFT.CRDII.498 Price: $129.99 |
| 284 |
532447220 |
CONSOLE.PEDAL.HYDRO Price: $54.99 |
| 287 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 296 |
585420501 |
LED LIGHT.LH Price: $59.99 |
| 297 |
586182901 |
INSERT REFECT LH Price: $3.99 |
| 299 |
585420401 |
LED LIGHT.RH Price: $59.99 |
| 308 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 309 |
582552502 |
BACKPLATE.TEXCRD2.5.BAGGER.479 Price: $129.99 |
| 319 |
581313907 |
LEVER.PRSNC.BGR.TEX.CRD.GEN2.1 Price: $11.99 |
| 334 |
583564401 |
BRACKET.ENGINE. This part replaces 532442537. Price: $8.99 |
| 335 |
532448204 |
COVER.LOWER.DASH.RH.BLACK Price: $24.99 |
| 336 |
532445309 |
COVER-LH.LOWER.DASH.GT2.BLACK Price: $24.99 |
| 338 |
594093901 |
Bolts Price: $1.99 |
| 339 |
583510301 |
SUBASM.BAGGER.FULL.LVER.(2 2) This part replaces 532436641. Price: $5.99 |
| 340 |
582552702 |
BATTERY.DOOR.TCRD.GEN2.5.MS479 Price: $32.99 |
| 341 |
582060801 |
LATCH.BATTERY.DOOR.TCRD Price: $3.99 |
| 342 |
582826802 |
SUPPORT.PNT.FENDER.CRD.TEX Price: $17.99 |
| 343 |
582671501 |
CLIP This part replaces 532440749. Price: $2.99 |
| 344 |
583536701 |
CONTROL.EZ.MULCH.TEX/CRD This part replaces 532438970. Price: $79.99 |
| 345 |
539132624 |
KNOB - SHIFT This part replaces 532440639. Price: $6.99 |
| 347 |
583566701 |
HITCH.TOW.TEX.CRD.GEN.2 This part replaces 532442887. Price: $12.99 |
| 350 |
532445143 |
CLIP.X-MAS.TREE Price: $3.99 |
| 366 |
599361602 |
Brackets Price: $29.99 |
| 367 |
537594001 |
BRACKET This part replaces 599361902. Price: $29.99 |
| 368 |
581424801 |
FULL.LEVER.BAGGER.TEX.CRD Price: $3.99 |
| 370 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 375 |
586908201 |
BUMPER CLIP-ON. DASH 1" Price: $3.99 |
