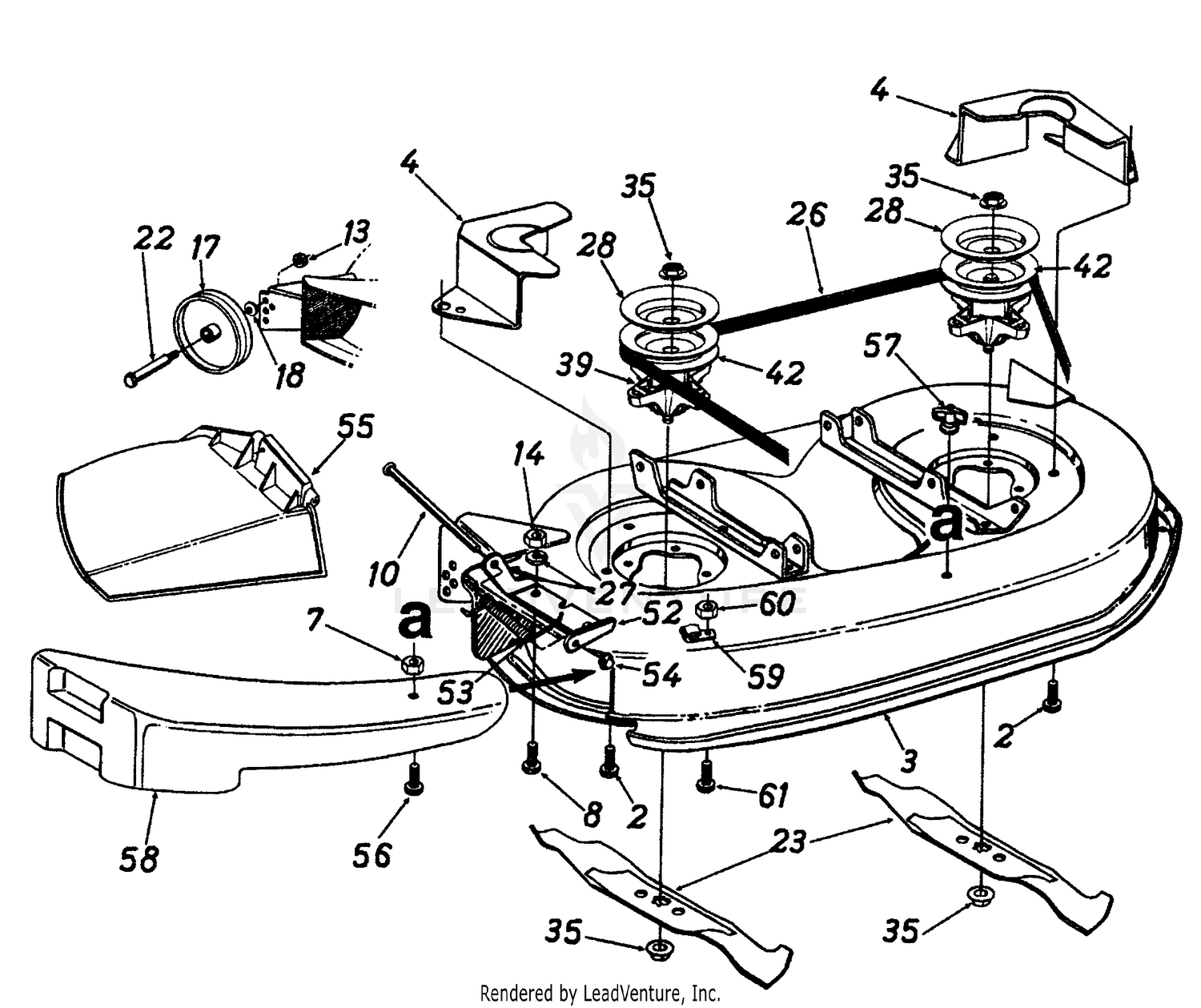

| Ref | Part Number | Description |
|---|
| 2 |
710-1260A |
Hex Wash. Hd. Scr. 5/16-18 x .75" This part replaces 7101260. Price: $3.34 |
| 4 |
783-0343A |
DECK BELT COVER Not Available This part replaces 783-0343. Price: |
| 7 |
712-0291 |
Hex Lock Nut 1/4-20 Thd. Price: $3.93 |
| 8 |
710-0258 |
Hex Bolt 1/4-20 x .62" Price: $3.63 |
| 10 |
911-0792 |
Hinge Pin This part replaces 7110792. Price: $4.05 |
| 13 |
712-0181 |
Hex Top Lock Nut 3/8-16 Thd. Price: $3.90 |
| 14 |
712-3006 |
HEX NUT Price: $4.05 |
| 17 |
734-06265 |
DECK WHEEL (5.0 DIA X 1.38) This part replaces 734-0973. Price: $11.69 |
| 18 |
736-0105 |
Bell Washer 0.40" I.D. x .88" O.D. Price: $3.96 |
| 22 |
938-0373 |
Shld. Bolt .498" Dia. x 1.53" This part replaces 738-0373. Price: $8.45 |
| 26 |
954-0329A |
V-Belt This part replaces 754-0329A. Price: $48.63 |
| 27 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 28 |
783-0342A |
BRAKE DISC BRACKET Not Available This part replaces 783-0342. Price: |
| 35 |
712-0417A |
HEX NUT Price: $6.50 |
| 52 |
703-1693A |
Hinge Mtg. Brkt. This part replaces 7031693. Price: $20.29 |
| 53 |
732-0602A |
Torsion Spring Not Available This part replaces 7320602. Price: |
| 54 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 56 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 57 |
712-3087 |
WING NUT 1/4-20 Price: $3.53 |
| 58 |
OEM-190-116 |
Mulching Plug This part replaces 731-1643. Price: $89.03 |
| 59 |
96606 |
Retainer Hook Brkt. This part replaces 16606. Price: $6.71 |
| 60 |
712-0271 |
Hex Sems Nut 1/4-20 Thd. Price: $3.78 |
