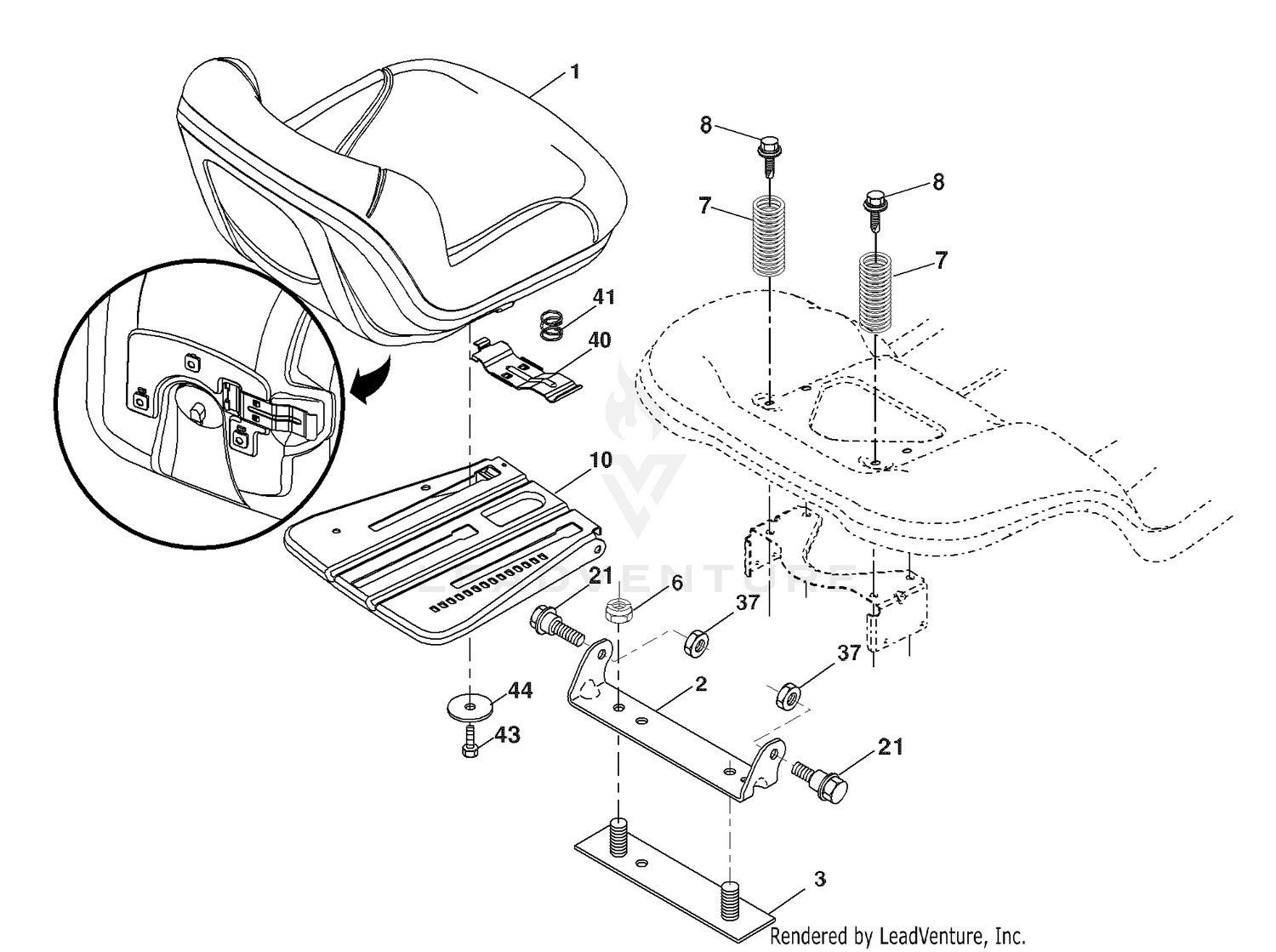

| Ref | Part Number | Description |
|---|
| 1 |
406623 |
Seat Price: Call Us |
| 1 |
93-2085-01 |
ROD ASM This part replaces 93-2085. Price: $134.61 |
| 2 |
180166 |
Bracket Pivot Fender Price: Call Us |
| 2 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 3 |
140675 |
Strap, Asm Fender Price: Call Us |
| 3 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 4 |
49-6440-03 |
PEDAL-FORWARD This part replaces 49-6440. Price: $84.90 |
| 5 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 6 |
33124-020 |
SCREW-CARR Price: $0.88 |
| 6 |
73800600 |
Nut, Lock W/Ins. 3/8-16 unc Price: Call Us |
| 7 |
124181X |
Spring, Seat Cprsn Price: Call Us |
| 7 |
2411-38 |
JOINT-BALL Price: $21.96 |
| 8 |
171877 |
Bolt 5/16-18 uncx 3/4 w/Sems Price: Call Us |
| 8 |
93-2142 |
DISCONTINUED Price: Call Us |
| 9 |
105-9750-01 |
PLATE-FLOOR This part replaces 94-6399. Price: $194.85 |
| 10 |
196977 |
Pan, Seat Price: Call Us |
| 10 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 11 |
94-1371 |
SPACER Price: $14.81 |
| 12 |
94-1383 |
PEDAL-PIVOT Price: $229.74 |
| 13 |
256-311 |
BUSHING-SPLIT Price: $13.37 |
| 14 |
33115-090 |
SCREW-HH Price: $13.76 |
| 15 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 16 |
107-2550 |
CABLE-CONTROL, TRACTION This part replaces 93-2099. Price: $194.40 |
| 17 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 18 |
17-9420 |
SCREW-HANDLE Price: $3.49 |
| 19 |
94-1373 |
BRACKET-LOCK Price: $24.82 |
| 20 |
94-1372 |
BRACKET-MOW Price: $18.44 |
| 21 |
171852 |
Bolt, Shoulder 5/16-18 Price: Call Us |
| 21 |
94-1375 |
TRUNNION-BRACKET, LOCK Price: $23.45 |
| 22 |
94-1374 |
TRUNNION-BRACKET, MOW Price: $14.18 |
| 23 |
94-1386 |
SHAFT-PEDAL Price: $44.42 |
| 24 |
94-1304 |
CABLE-LOCK, NEUTRAL Price: $153.45 |
| 25 |
32128-20 |
NUT-HF Price: $0.99 |
| 26 |
94-3489 |
SCREW-HH Price: $1.70 |
| 27 |
140-6108 |
PIN-FLAG, NEUTRAL LOCK This part replaces 94-1300. Price: $31.21 |
| 28 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 29 |
2411-34 |
JOINT-BALL Price: $29.99 |
| 30 |
3296-13 |
NUT-LOCK, NI Price: $0.34 |
| 31 |
93-2092 |
CLAMP-CABLE Price: $3.46 |
| 32 |
33114-016 |
SCREW-HH Price: $0.27 |
| 33 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 34 |
93-2279 |
CLAMP-CABLE Price: $7.12 |
| 35 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 36 |
33115-016 |
SCREW-HH Price: $0.75 |
| 37 |
33014-00 |
NUT-HEX Price: $0.25 |
| 37 |
73800500 |
Nut, Lock 5/16-18 unc Price: Call Us |
| 38 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 39 |
3220-1 |
NUT-JAM Price: $0.99 |
| 40 |
197661 |
Handle Slide Price: Call Us |
| 41 |
198200 |
Spring Latch Price: Call Us |
| 43 |
74760612 |
Bolt 3/8-16 UNC x 3/4 Price: Call Us |
