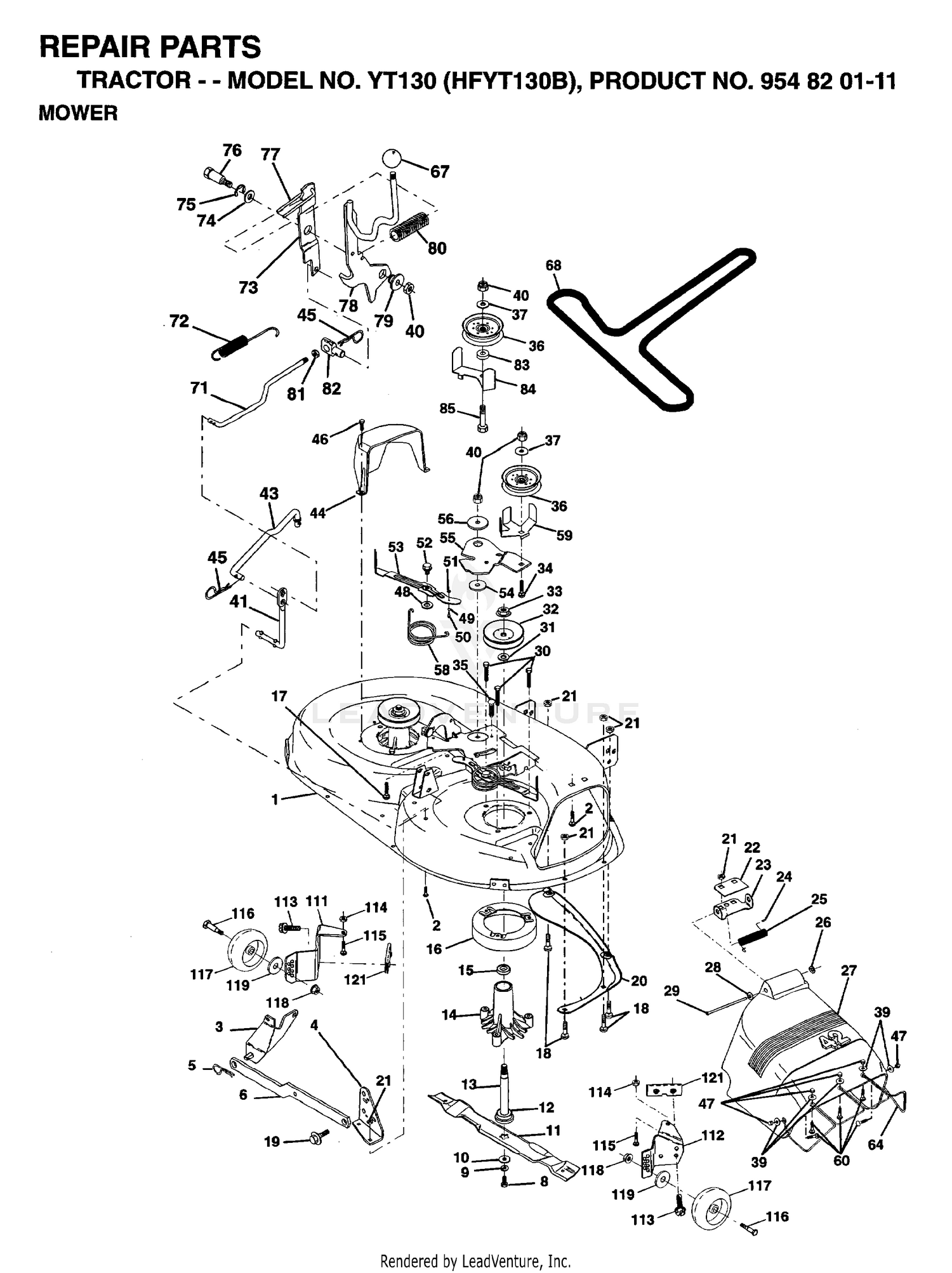

| Ref | Part Number | Description |
|---|
| 1 |
532176031 |
DECK SVC 42" TP This part replaces 532144393. Price: $279.99 |
| 1 |
93-4032 |
SHAFT-JACK Price: $245.00 |
| 2 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 2 |
68-3220 |
KEY-STOCK Price: $4.60 |
| 3 |
5-1718 |
KEY-CLUTCH Price: $8.57 |
| 3 |
531165401 |
SERVICE.KIT BRACKET BRKT ASM S This part replaces 532138017. Price: $12.99 |
| 4 |
3243-6 |
SCREW-SET, SQH Price: $4.23 |
| 4 |
532138440 |
BRKT DECK SW BAR Price: $4.99 |
| 5 |
3218-3 |
NUT-JAM Price: $0.25 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
531149301 |
SERVICE KIT BAR BAR SWAY DECK. This part replaces 532130832. Price: $9.99 |
| 8 |
13-6260 |
ADJUSTING SCREW ASM Price: $77.62 |
| 8 |
532850857 |
BLADE BOLT Price: $3.99 |
| 9 |
13-5520 |
SPACER-SCREW, ADJUSTING Price: $23.41 |
| 9 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 10 |
324-7 |
SCREW-HH Price: $1.79 |
| 10 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 11 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 12 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 12 |
532129895 |
BEARING.BALL.#6204.(MANDREL) Price: $9.99 |
| 13 |
13-0100 |
PIVOT-LINK, RAKE LIFT Price: $61.98 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $29.99 |
| 14 |
3219-3 |
NUT-HEX Price: $0.34 |
| 14 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 15 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
1-633131 |
YOKE-LINKAGE, BRAKE This part replaces 282-22. Price: $14.99 |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532140329. Price: $6.99 |
| 17 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 17 |
596987501 |
Bolts This part replaces 872110610. Price: $3.99 |
| 18 |
108-0930 |
LIFTING BELL CRANK-RH This part replaces 93-4440. Price: $337.37 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 20 |
3217-8 |
NUT-HEX Price: $1.34 |
| 20 |
531167001 |
SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 532136888. Price: $11.99 |
| 21 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
3272-22 |
PIN-COTTER Price: $0.61 |
| 22 |
532134753 |
STIFFENER BRACKET Price: $5.99 |
| 23 |
3247-6 |
SCREW-SET Price: $1.02 |
| 23 |
529845901 |
SERVICE KIT BRKT This part replaces 532131267. Price: $4.99 |
| 24 |
13-4880-01 |
SPROCKET This part replaces 13-4880. Price: $784.22 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
13-0480 |
SPRING Price: $30.51 |
| 25 |
532123713 |
SPRING TORSION Price: $6.99 |
| 26 |
13-3990-01 |
HANDLE-TRIP This part replaces 13-3990. Price: $189.07 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 27 |
532139450 |
COVER Price: $106.99 |
| 28 |
108-0928 |
LIFTING BELL CRANK-LH This part replaces 13-5500. Price: $337.37 |
| 28 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga SD Price: $5.99 |
| 29 |
13-0050 |
SPRING-EXTENSION Price: $93.83 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
13-5530 |
ROD-ADJUST, SPRING Price: $67.42 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532138776. Price: $3.99 |
| 31 |
13-4490-01 |
DISCONTINUED This part replaces 13-4490. Price: Call Us |
| 31 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $3.99 |
| 32 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532129861. Price: $14.99 |
| 33 |
322-7 |
SCREW-HH Price: $0.89 |
| 33 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $7.99 |
| 34 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 34 |
63-5210-01 |
DRIVE SIDE SPDL WA This part replaces 63-5210. Price: $150.53 |
| 35 |
532133835 |
FASTENER.XMAS.TREE Price: $3.99 |
| 35 |
56-6230 |
BEARING-ROLLER Price: $72.34 |
| 36 |
140-2208 |
PULLEY-DRIVE This part replaces 93-4033. Price: $163.75 |
| 36 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 37 |
13-3710 |
WASHER Price: $3.05 |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 38 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 39 |
321-4 |
SCREW-HH Price: $0.99 |
| 39 |
819070816 |
Washer 7/32 x 1/2 x 16 Gauge This part replaces 819070718. Price: $5.99 |
| 40 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 40 |
93-4438 |
BRACKET WA - SUPPORT Price: $108.32 |
| 41 |
324-10 |
SCREW-HH Price: $1.97 |
| 41 |
532133551 |
PIVOT ROD Price: $6.99 |
| 43 |
529842801 |
SERVICE.KIT CLUTCH ROD CLUTCH This part replaces 532140083. Price: $9.99 |
| 44 |
532140088 |
GUARD MANDREL LH BLACK Price: $29.99 |
| 45 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
539108086 |
NUT 10-24 ACORN ZD This part replaces 532060867. Price: $3.99 |
| 48 |
532133944 |
WASHER Price: $3.99 |
| 49 |
532174284 |
ROLLER ASM CAM FOLLOWER This part replaces 532133940. Price: $8.99 |
| 50 |
532131340 |
BOLT Price: $2.99 |
| 51 |
532069180 |
LOCKNUT Price: $2.99 |
| 52 |
532139888 |
BOLT.SHOULDER.5/16-18 Price: $3.99 |
| 53 |
531168401 |
SERVICE KIT ARM BRAKE ASSY This part replaces 532131845. Price: $19.99 |
| 54 |
532178515 |
WASHER This part replaces 532133943. Price: $5.99 |
| 55 |
532151785 |
KIT.CAM.ROLLER.42".SERVICE This part replaces 532140084. Price: $34.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 58 |
532140086 |
SPRING Price: $4.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 60 |
596039001 |
Screws This part replaces 871161010. Price: $2.99 |
| 64 |
532139328 |
DEFLECTOR Price: $154.99 |
| 67 |
532106933 |
KNOB T (1/2-HOLE) Price: $6.99 |
| 68 |
532144200 |
V-BELT TRIPATH Price: $39.99 |
| 71 |
531166401 |
SERVICE KIT CLUTCH ROD, CLUTCH This part replaces 532142427. Price: $22.99 |
| 72 |
532131870 |
RETURN SPRING Price: $9.99 |
| 73 |
532127847 |
ARM CLUTCH SECONDARY Price: $2.99 |
| 74 |
532121748 |
WASHER Price: $3.99 |
| 75 |
812000029 |
RING CLIP Price: $3.99 |
| 76 |
532128903 |
BOLT Price: $5.99 |
| 77 |
532127845 |
KEEPER SPRING Price: $4.16 |
| 78 |
532140179 |
CLUTCH ARM Price: $18.99 |
| 79 |
532127498 |
BUSHING.FLANGE.E-RING.GROOVE Price: $4.99 |
| 80 |
532153701 |
SPRING-CLUTCH (2 2 PW01) This part replaces 532128759. Price: $4.99 |
| 81 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 82 |
532142028 |
TRUNNION.ADJUSTABLE.3/8-16 Price: $3.99 |
| 83 |
532120958 |
WASHER Price: $5.99 |
| 84 |
531150901 |
SERVICE KIT BELT KEEPER This part replaces 532144394. Price: $3.99 |
| 85 |
872110618 |
BOLT CARRIAGE This part replaces 872140618. Price: $4.99 |
| 111 |
532181040 |
KIT.BRKT.GAUGE.WHEEL.42" This part replaces 532140353. Price: $32.99 |
| 112 |
532181040 |
KIT.BRKT.GAUGE.WHEEL.42" This part replaces 532132262. Price: $32.99 |
| 113 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 114 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 115 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872110504. Price: $2.99 |
| 117 |
532133957 |
WHEEL GAGE DONUT Price: $11.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 121 |
532143723 |
BRACKET.EXTRUDED.GAGE.WHEEL Price: $8.99 |
