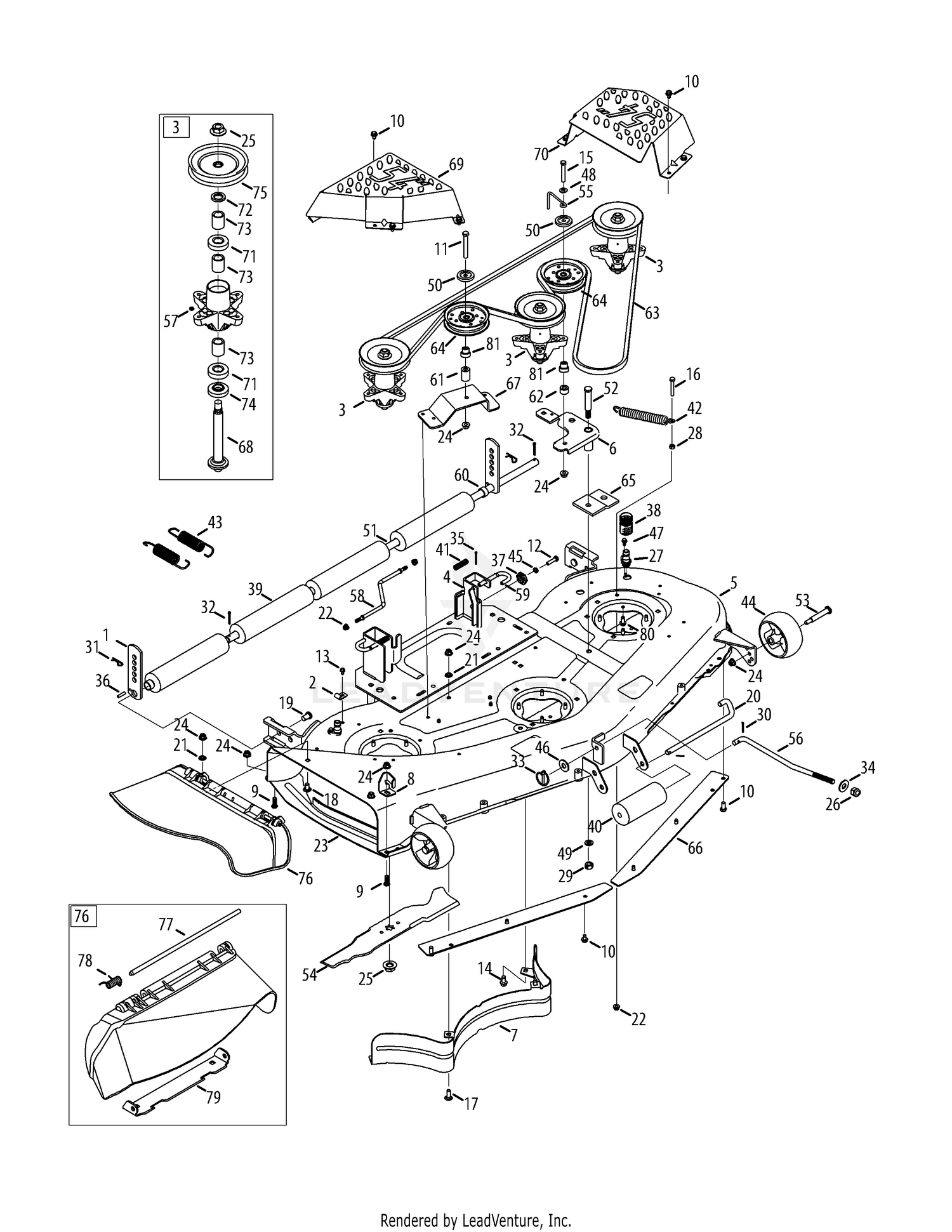

| Ref | Part Number | Description |
|---|
| 1 |
12650-0637 |
Height Adjust Bracket Price: $38.48 |
| 2 |
96606 |
Retainer Hook Bracket Price: $6.71 |
| 3 |
918-04608A |
Spindle Assembly Price: $142.94 |
| 4 |
683-0254B |
Bracket Assembly, Deck, Hanger LH Not Available This part replaces 683-0254B-0637. Price: |
| 6 |
683-0459-0637 |
Idler Assembly Price: $65.55 |
| 7 |
703-2093C-0637 |
Inner Baffle Price: $84.77 |
| 8 |
703-3279 |
Deflector Chute Stop Price: $35.25 |
| 9 |
710-04095 |
Hex Screw, 3/8-16 x 1.00 Price: $4.39 |
| 10 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 11 |
710-0521 |
Hex Screw, 3/8-16 x 3.00 Price: $4.54 |
| 12 |
710-0528 |
Hex Screw, 5/16-18 x 1.25 Price: $3.90 |
| 13 |
710-0599 |
Hex Screw, 1/4-20 x .500 Price: $3.86 |
| 14 |
710-0623 |
Taptite Screw, 3/8-16 x 0.750 Price: $3.93 |
| 15 |
710-0859 |
Hex Screw, 3/8-16 x 2.50 Price: $5.99 |
| 16 |
710-3103 |
Hex Screw, 5/16-18 x 2.00 Price: $4.02 |
| 17 |
710-3168 |
Carriage Bolt, 3/8-16 x 1.00 Price: $3.61 |
| 18 |
710-3178 |
CARRIAGE BOLT 3/8-16 x .75 Price: $3.93 |
| 19 |
911-0332 |
Clevis Pin, .50 DIA x .78 LG Price: $14.98 |
| 20 |
711-3314A |
Roller Pin, 1/2" x 7.31 Lg This part replaces 911-3314. Price: $22.55 |
| 21 |
712-0229 |
Push Nut, 3/8 Price: $3.14 |
| 22 |
712-04063 |
Flangelock Nut, 5/16-18 Price: $3.56 |
| 23 |
703-3511B-0637 |
Finger Guard Price: $61.47 |
| 24 |
712-04065 |
Flangelock Nut, 3/8-16 Price: $3.68 |
| 25 |
712-0417A |
HEX NUT Price: $6.50 |
| 26 |
712-04243 |
Flexlock Nut, 1/2-13 Price: $3.52 |
| 27 |
731-07487 |
Deck Wash Nozzle Price: $3.86 |
| 28 |
712-3010 |
HEX NUT 5/16-18 This part replaces 912-3010. Price: $3.89 |
| 29 |
712-3022 |
Hexlock Nut, Counterlock, 1/2-13 Price: $3.61 |
| 30 |
714-0111 |
Cotter Pin This part replaces 914-0111. Price: $4.20 |
| 31 |
714-0145 |
Click Pin This part replaces 914-0145. Price: $4.42 |
| 32 |
714-0162 |
Cotter Pin, 5/32 x 1.25 Price: $4.29 |
| 33 |
753-04070 |
Lynch Pin, .1875 Price: $8.64 |
| 34 |
736-0317 |
Washer, .630 x 1.25 x .180 Price: $6.99 |
| 35 |
714-0470 |
Cotter Pin, 1/8 x 1.25 This part replaces 914-0470. Price: $3.90 |
| 36 |
715-0108 |
Spring Pin, 1/4 DIA x 1.00 LG Price: $4.38 |
| 37 |
917-04074 |
Deck Gear Price: $11.45 |
| 38 |
921-04041 |
Water Nozzle Adaptor Price: $20.19 |
| 39 |
731-0335 |
Deck Roller Price: $63.49 |
| 40 |
731-05679B |
ROLLER This part replaces 731-05679. Price: $15.80 |
| 41 |
732-04652 |
Compression Spring, .535 OD x 1.751 LG Price: $5.88 |
| 42 |
732-04692 |
Extension Spring, .85 OD x 5.915 LG Price: $8.33 |
| 43 |
732-0934 |
Extension Spring, 1.15 OD x 5.99 LG Price: $10.43 |
| 44 |
734-04155 |
Deck Wheel Price: $19.04 |
| 45 |
936-0119 |
Lock Washer, 5/16 Price: $4.29 |
| 46 |
736-0179 |
Fl-Wash. 17/32" I.D. This part replaces 936-0179. Price: $4.02 |
| 47 |
738-04278 |
Shoulder Screw, 1/4-20 x 0.50 Price: $5.99 |
| 48 |
736-0300 |
Fl-Wash. .385" I.D. This part replaces 936-0300. Price: $3.93 |
| 49 |
736-0921 |
Lock Washer, 1/2 This part replaces 936-0921. Price: $3.90 |
| 50 |
783-08389 |
Pulley Cap Price: $5.23 |
| 51 |
738-0295 |
Shaft, .750 x .47.12 Price: $109.39 |
| 52 |
738-1229A |
Shield Screw, .625 x 2.50 x 1/2-13 Price: $11.65 |
| 53 |
938-3056 |
Shoulder Bolt, .496 x 2.50 x 3/8-16 Price: $8.53 |
| 54 |
942-0677B |
Blade Price: $28.62 |
| 55 |
747-04938 |
Belt Keeper Rod Price: $7.00 |
| 56 |
747-05141B |
DECK FRONT LIFT ROD This part replaces 747-05141A. Price: $19.44 |
| 57 |
937-3000 |
Lube Fitting Price: $4.04 |
| 58 |
747-05462 |
Deck Sway Rod Price: $29.83 |
| 59 |
747-1116 |
Deck Release Handle Rod Price: $11.17 |
| 60 |
750-0212 |
Spacer, .752 x 1.0 x .53 This part replaces 950-0212. Price: $9.97 |
| 61 |
750-04597 |
SPACER:.380 x .900 Not Available Price: |
| 62 |
750-0933 |
SPACER Not Available Price: |
| 63 |
954-04083 |
V Belt Price: $84.08 |
| 64 |
756-05042 |
Pulley, Idler, 4.25"Dia Price: $25.54 |
| 65 |
783-04013A-0637 |
Pulley Stabilizer Bracket Price: $20.51 |
| 66 |
783-04690B-0637 |
Deck Skirt Price: $37.17 |
| 67 |
783-04726 |
Stationary Idler Bracket Price: $26.15 |
| 68 |
738-1197 |
Spindle Shaft, 6.95 LG Price: $36.67 |
| 69 |
783-1470A-0637 |
RH Spindle Cover Price: $94.35 |
| 70 |
783-1471A-0637 |
LH Spindle Cover Price: $70.63 |
| 71 |
741P0919B |
BALL BEARING This part replaces 941-0919A. Price: $18.90 |
| 72 |
748-0160A |
Spacer, .790 ID x 1.25 OD x .175 Price: $5.87 |
| 73 |
750-1000 |
Spacer, .80 x 1.10 x 1.322 LG Price: $3.90 |
| 74 |
750-1349A |
Spacer, .79 x 1.82 x .55 LG Price: $12.22 |
| 75 |
756-04216 |
Deck Pulley Price: $29.13 |
| 76 |
631-04070C |
Discharge Chute This part replaces 631-04070A. Price: $107.73 |
| 77 |
711-04565 |
Hinge Pin Price: $13.59 |
| 78 |
732-04372 |
Torsion Spring, .44 ID x 2.0 Price: $8.93 |
| 79 |
783-05030 |
Chute Bracket Price: $25.57 |
| 80 |
710-1260A |
Self Tapping Screw, 5/16-18 x .75 Price: $3.34 |
