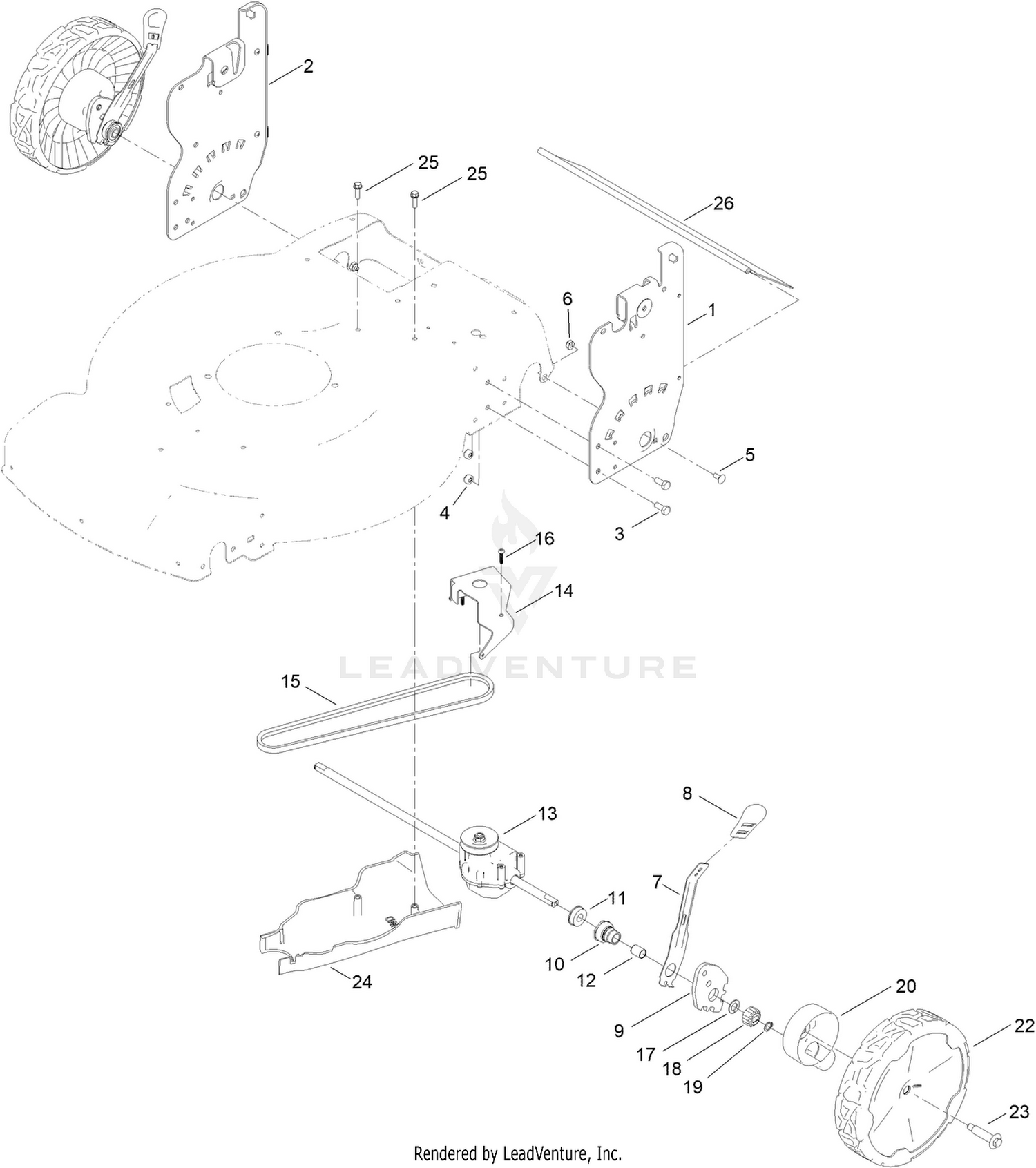

| Ref | Part Number | Description |
|---|
| 1 |
144-6476-05 |
PLATE-HOC, LH This part replaces 139-6591-05. Price: $26.99 |
| 2 |
145-5650-05 |
PLATE-HOC, RH (ISO) This part replaces 139-6590-05. Price: $26.99 |
| 3 |
322-3 |
SCREW-HH Price: $0.79 |
| 4 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 5 |
3229-11 |
SCREW-CARR Price: $0.99 |
| 6 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 7 |
132-4486 |
ARM-SPRING Price: $13.99 |
| 8 |
110-0549 |
KNOB-HOC Price: $0.99 |
| 9 |
139-5451 |
ARM-PIVOT, REAR Price: $11.99 |
| 10 |
108-9779 |
RETAINER-BUSHING, HOC Price: $12.99 |
| 11 |
104-8699 |
BEARING-BALL Price: $4.39 |
| 12 |
108-9782 |
BUSHING-SLEEVE Price: $3.29 |
| 13 |
139-6561 |
TRANSMISSION-RWD Price: $111.99 |
| 14 |
114-7977-03 |
BRACKET-TRANSMISSION Price: $12.99 |
| 15 |
140-4041 |
V-BELT Price: $16.99 |
| 16 |
108-7476 |
SCREW-PLASTITE Price: $0.79 |
| 17 |
110-7191 |
WASHER-THRUST Price: $1.79 |
| 18 |
131-5399 |
GEAR-PINION, 15T Price: $4.79 |
| 19 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 20 |
140-2362 |
ASM-COVER, GEAR (DK GRAY) Price: $3.89 |
| 22 |
140-2350 |
ASM-9.65" WHEEL, GEARED Price: $23.99 |
| 23 |
145-3899 |
WHEEL BOLT This part replaces 139-1789. Price: $1.59 |
| 24 |
139-5448 |
COVER-BELT, RWD Price: $7.99 |
| 25 |
46-8091 |
SCREW-HWH Price: $3.59 |
