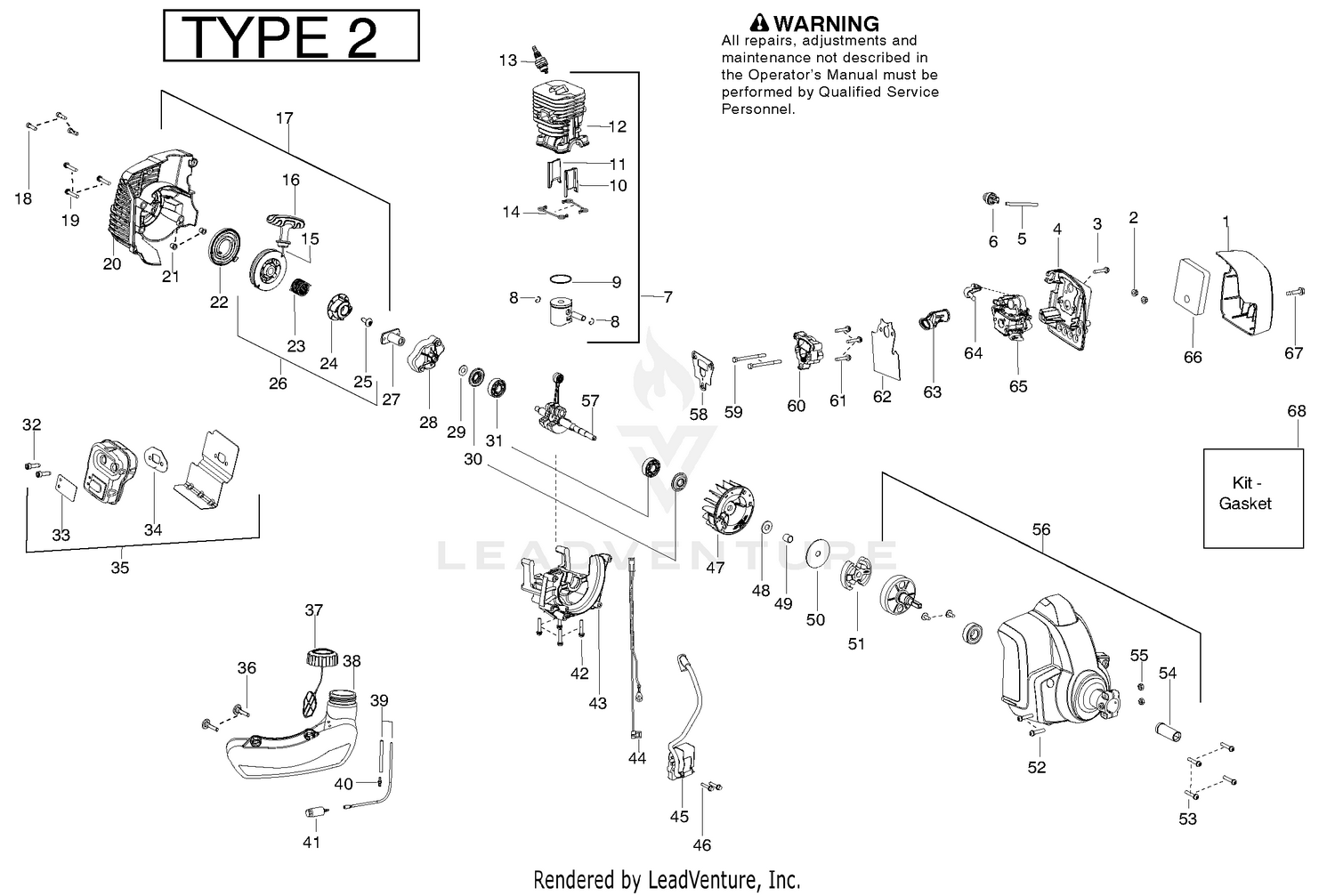

| Ref | Part Number | Description |
|---|
| 1 |
38-5480 |
DISCONTINUED Price: Call Us |
| 1 |
545189001 |
Cover - Airbox Price: $5.99 |
| 2 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 2 |
530016101 |
Nut - Carb. Screw Price: $1.99 |
| 3 |
30-1750 |
DISCONTINUED Price: Call Us |
| 3 |
530016301 |
Screw 8-32 Price: $1.99 |
| 4 |
33-4720 |
DISCONTINUED Price: Call Us |
| 4 |
545188901 |
Base - Airbox Price: $6.99 |
| 5 |
33-4710 |
DISCONTINUED Price: Call Us |
| 6 |
38-5490 |
DISCONTINUED Price: Call Us |
| 6 |
530047721 |
Assy - Purge Bulb Price: $3.99 |
| 7 |
33-3250 |
DISCONTINUED Price: Call Us |
| 8 |
33-4680 |
DISCONTINUED Price: Call Us |
| 8 |
545194801 |
Retainer - Piston pin Price: $1.99 |
| 9 |
33-3260 |
DISCONTINUED Price: Call Us |
| 9 |
545194601 |
Ring - Piston Price: $2.99 |
| 10 |
38-5520 |
DISCONTINUED Price: Call Us |
| 10 |
545194901 |
Insert - Front Transfer Port Price: $1.99 |
| 11 |
38-5530 |
DISCONTINUED Price: Call Us |
| 11 |
545195001 |
Insert - Rear Transfer Port Price: $1.99 |
| 12 |
545181801 |
Cylinder - Machined Price: $12.99 |
| 13 |
952030249 |
Spark Plug (RCJ- 6Y) Price: $3.99 |
| 14 |
545008044 |
Seal - Cylinder (Kit) Price: $6.99 |
| 15 |
545029901 |
Kit - Rope Price: $9.99 |
| 16 |
545208401 |
Handle - Starter Price: $4.99 |
| 18 |
530016449 |
Screw M4 x 1.75 Price: $1.99 |
| 19 |
530015897 |
Screw M5x25mm Price: $1.99 |
| 20 |
545212701 |
Assy - Starter/Shroud This part replaces 545191201. Price: $17.99 |
| 21 |
545185301 |
Spacer Price: $1.99 |
| 22 |
545008013 |
Kit - Starter Spring Price: $3.99 |
| 23 |
545188301 |
Spring - Starter Hub Price: $2.99 |
| 24 |
545188001 |
Hub - Starter Price: $2.99 |
| 25 |
545112801 |
Screw M6 Price: $1.99 |
| 27 |
545188201 |
Coupling - Starter Price: $1.99 |
| 28 |
545188701 |
Assy - Starter Cup Price: $3.99 |
| 29 |
530015828 |
Washer - Flat Price: $1.99 |
| 30 |
545008044 |
Seal - Crankshaft (kit) Price: $6.99 |
| 31 |
545013401 |
Bearing - Crankshaft Price: $6.99 |
| 32 |
530058982 |
Bolt - Muffler Price: $1.99 |
| 33 |
545224001 |
SPARK ARRESTER This part replaces 545008070. Price: $2.99 |
| 34 |
545008044 |
Gasket - Muffler (kit) Price: $6.99 |
| 36 |
530016445 |
Screw - Tank Retainer Price: $1.99 |
| 37 |
530057973 |
Assy - Fuel Cap w/retainer This part replaces 545215901. Price: $7.99 |
| 40 |
530023877 |
Fitting - Fuel Line Price: $1.99 |
| 41 |
530095646 |
Assy - Fuel Pickup Price: $2.99 |
| 42 |
530015897 |
Screw - M5x25mm Price: $1.99 |
| 43 |
545181901 |
Crankcase Price: $12.99 |
| 44 |
545191601 |
Assy - Leadwire Price: $3.99 |
| 45 |
545189701 |
Module - Ignition Price: $22.99 |
| 46 |
530016357 |
Screw 8-32 Price: $1.99 |
| 47 |
545120401 |
Flywheel Price: $9.99 |
| 48 |
530016463 |
Washer Price: $1.99 |
| 49 |
530057852 |
Spacer - Flywheel Price: $2.99 |
| 50 |
530094189 |
Washer - Clutch Price: $2.99 |
| 51 |
530055122 |
Assy-Clutch This part replaces 545008038. Price: $8.99 |
| 52 |
530015774 |
Screw 10-24 x 1" Price: $1.99 |
| 53 |
530015897 |
Screw M5 x 25mm Price: $1.99 |
| 54 |
545186401 |
Guide - Clutch Drum Price: $2.99 |
| 55 |
530015768 |
Locknut 10-24 Price: $1.99 |
| 57 |
545194001 |
CRANKSHAFT This part replaces 545008047. Price: $34.99 |
| 58 |
545008044 |
Gasket - Adapter/Cyl. (kit) Price: $6.99 |
| 59 |
530016418 |
Bolt M5 x .80 Price: $1.99 |
| 60 |
575391501 |
Adaptor - Carburetor Price: $6.99 |
| 61 |
530016441 |
Screw .20 x 32 Price: $1.99 |
| 62 |
545008044 |
Gasket - Carb./Adapter(kit) Price: $6.99 |
| 63 |
545190501 |
Boot - Carb. Price: $1.99 |
| 64 |
574719701 |
Lever - Choke Price: $6.99 |
| 65 |
525810301 |
Carburetor (WTA-32) Price: Call Us |
| 66 |
545195901 |
Filter - Air Price: $1.99 |
| 67 |
530016465 |
Bolt - Knob Price: $1.99 |
