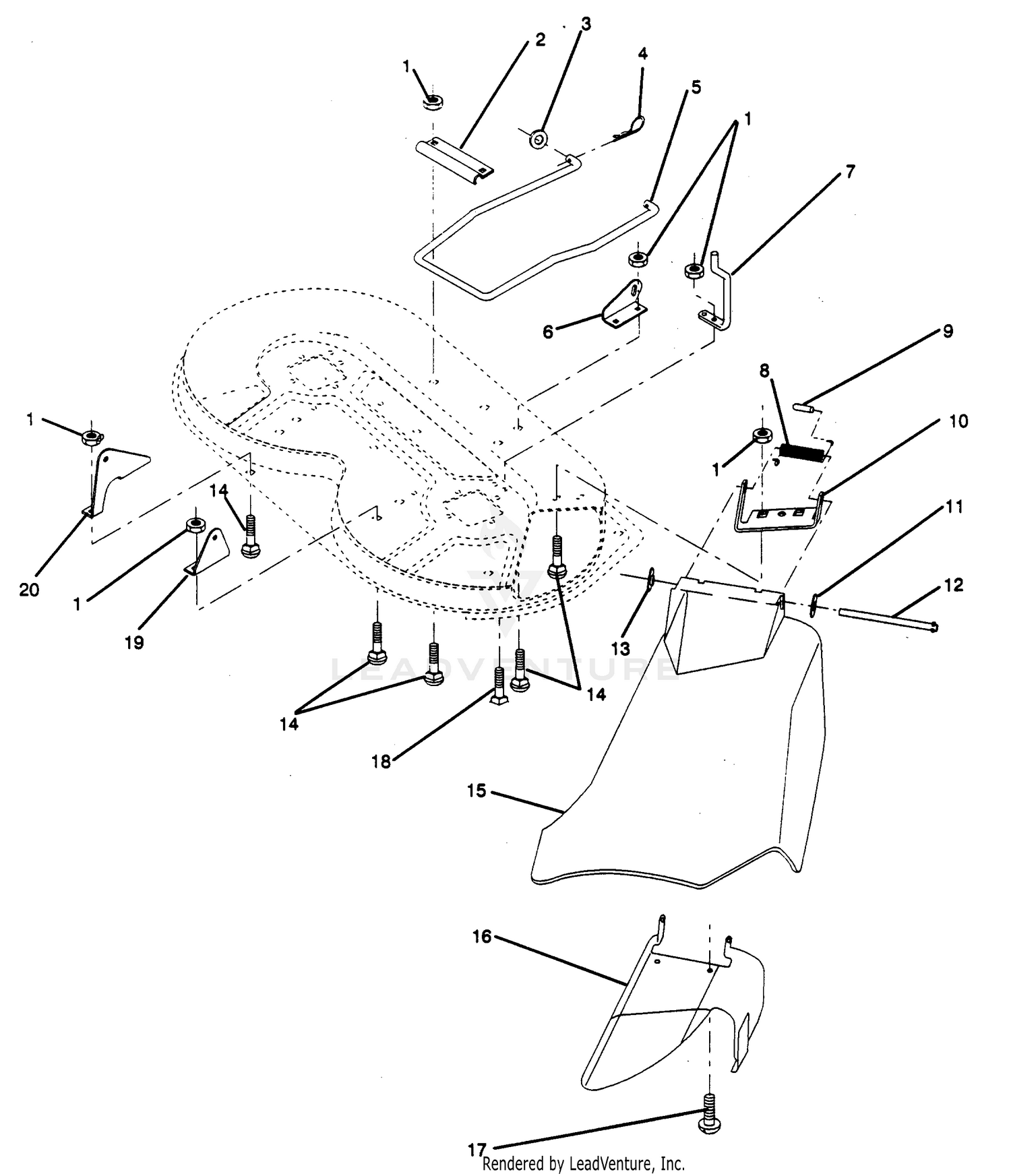

| Ref | Part Number | Description |
|---|
| 1 |
112-1734 |
ROLLER-SHOULDER, PLASTIC Price: $525.86 |
| 1 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 2 |
112-1707 |
SHAFT-ROLLER, WIEHLE Price: $73.35 |
| 2 |
532122047 |
Bracket, Stabilizer Link (AYP part number) Price: $3.99 |
| 3 |
114-3717 |
SEAL-OIL Price: $2.77 |
| 3 |
819171713 |
Washer 17/32 x 1-1/16 x 13 Ga. (AYP part number) Price: $1.99 |
| 4 |
112-5290 |
BEARING-STEEL, STAINLESS Price: $12.64 |
| 4 |
532003146 |
SPRING RETAINER This part replaces 532124660. Price: $1.99 |
| 5 |
112-7494 |
SEAL Price: $6.37 |
| 5 |
532124636 |
Stabilizer, Mower Link (AYP part number) Price: $24.99 |
| 6 |
114-5411 |
NUT-LOCK, BEARING Price: $24.46 |
| 6 |
532122045 |
Bracket, R.H. Front Lift (AYP part number) Price: $3.99 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
532123661 |
Guide, Front Mandrel R.H. Mower Belt (AYP part number) Price: $5.33 |
| 8 |
532123713 |
Spring, Torsion (AYP part number) Price: $3.99 |
| 9 |
532105304 |
Cap, Sleeve (AYP part number) Price: $2.99 |
| 10 |
532136631 |
Bracket, Asm. Deflector (AYP part number) This part replaces 532126361. Price: $8.99 |
| 11 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga. (AYP part number) Price: $5.99 |
| 12 |
583383801 |
PIN.HINGE.30 This part replaces 532121980. Price: $2.99 |
| 13 |
532110452 |
Pushnut (AYP part number) Price: $1.99 |
| 14 |
872140505 |
Bolt, Carriage 5/16-18 UNC x 5/8 (AYP part number) Price: $2.99 |
| 15 |
532136244 |
This part replaces 532126370. Price: $20.64 |
| 16 |
532125629 |
Assembly, Deflector Support (AYP part number) Price: $19.37 |
| 17 |
817051007 |
Screw, Pan Hd. PLT-30 (AYP part number) Price: $2.99 |
| 18 |
539976934 |
HCS 5/16C X 3/4 This part replaces 874760512. Price: $1.99 |
| 19 |
532122043 |
Bracket, R.H. Rear Lift (AYP part number) Price: $5.60 |
| 20 |
532122044 |
Bracket, L.H. Rear Lift (AYP part number) Price: $9.99 |
