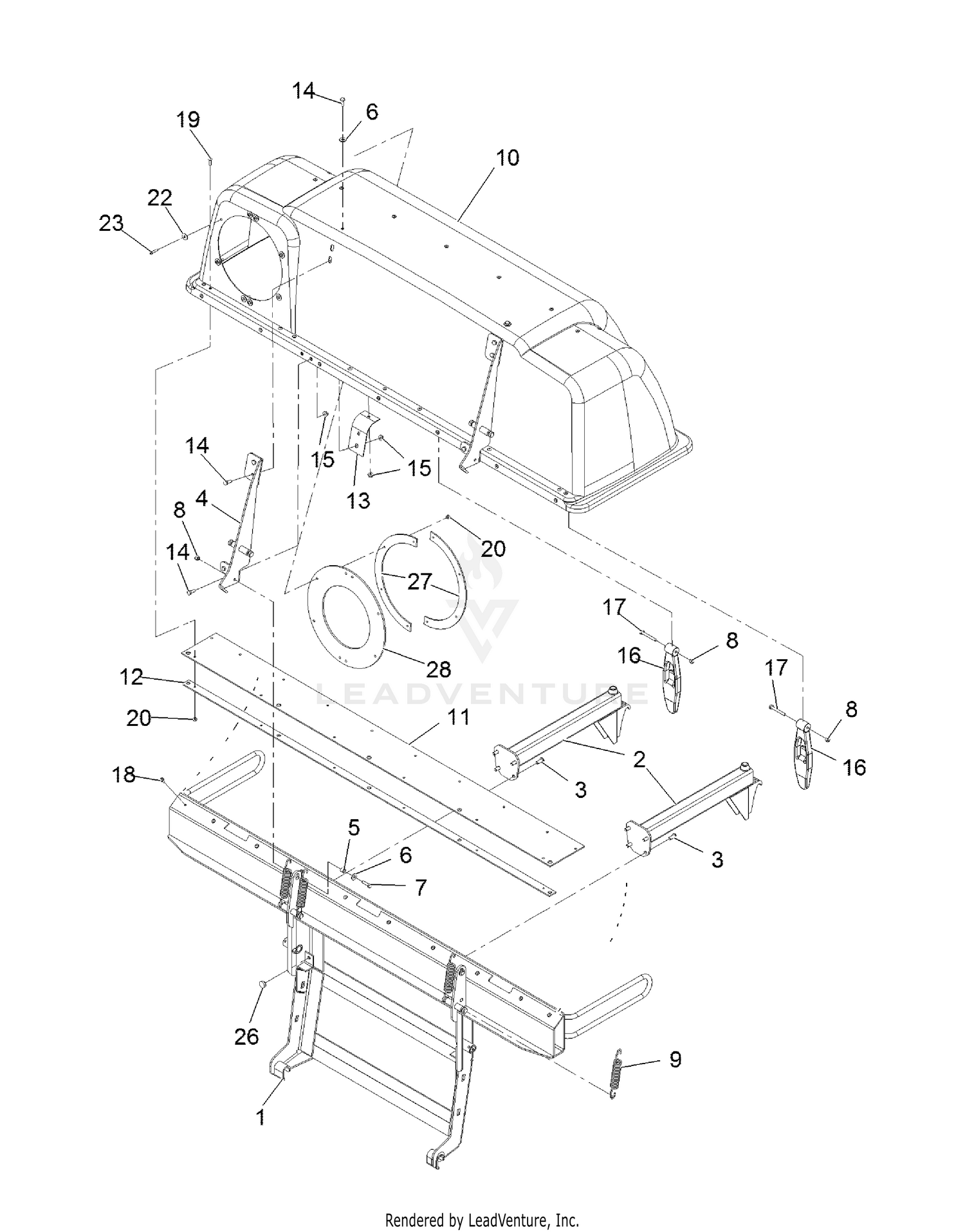

Hood and Frame Assembly No. 109-6140
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 109-8706-03 | FRAME-TRIPLE BAGGER Price: $958.99 |
| 2 | 103-5166 | BAG SUPPORT ASM Price: $152.99 |
| 3 | 3274-55 | SCREW-HSBH Price: $4.79 |
| 4 | 109-8351-03 | HINGE Price: $93.99 |
| 5 | 1-633545 | SPACER Price: $2.39 |
| 6 | 3256-2 | WASHER-FLAT Price: $0.39 |
| 7 | 321-6 | SCREW-HH Price: $0.49 |
| 8 | 3296-42 | NUT-LOCK, NI Price: $0.39 |
| 9 | 1-653544 | SPRING-EXTENSION Price: $7.79 |
| 10 | 103-0437 | ASM, HOOD Price: $1,056.99 |
| 11 | 103-0451 | SEAL-HINGE Price: $269.99 |
| 12 | 103-0452-03 | PLATE-BACKING Price: $38.99 |
| 13 | 103-0391 | REINFORCEMENT-HOOD, BAGGE Price: $11.99 |
| 14 | 321-4 | SCREW-HH Price: $0.99 |
| 15 | 32128-33 | NUT-HF Price: $0.69 |
| 16 | 1-653403 | LATCH Price: $76.99 |
| 17 | 321-11 | SCREW-HH Price: $0.79 |
| 18 | 114439 | RIVET-BLIND Price: $1.19 |
| 19 | 1-803075 | SCREW-HEAD, TRUSS Price: $1.19 |
| 20 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 22 | 3256-61 | WASHER-FLAT Price: $2.29 |
| 23 | 3250-27 | SCREW-PPH Price: $0.59 |
| 26 | 1-513658 | BUMPER Price: $6.09 |
| 27 | 103-0378 | CLAMP-SEAL Price: $30.99 |
