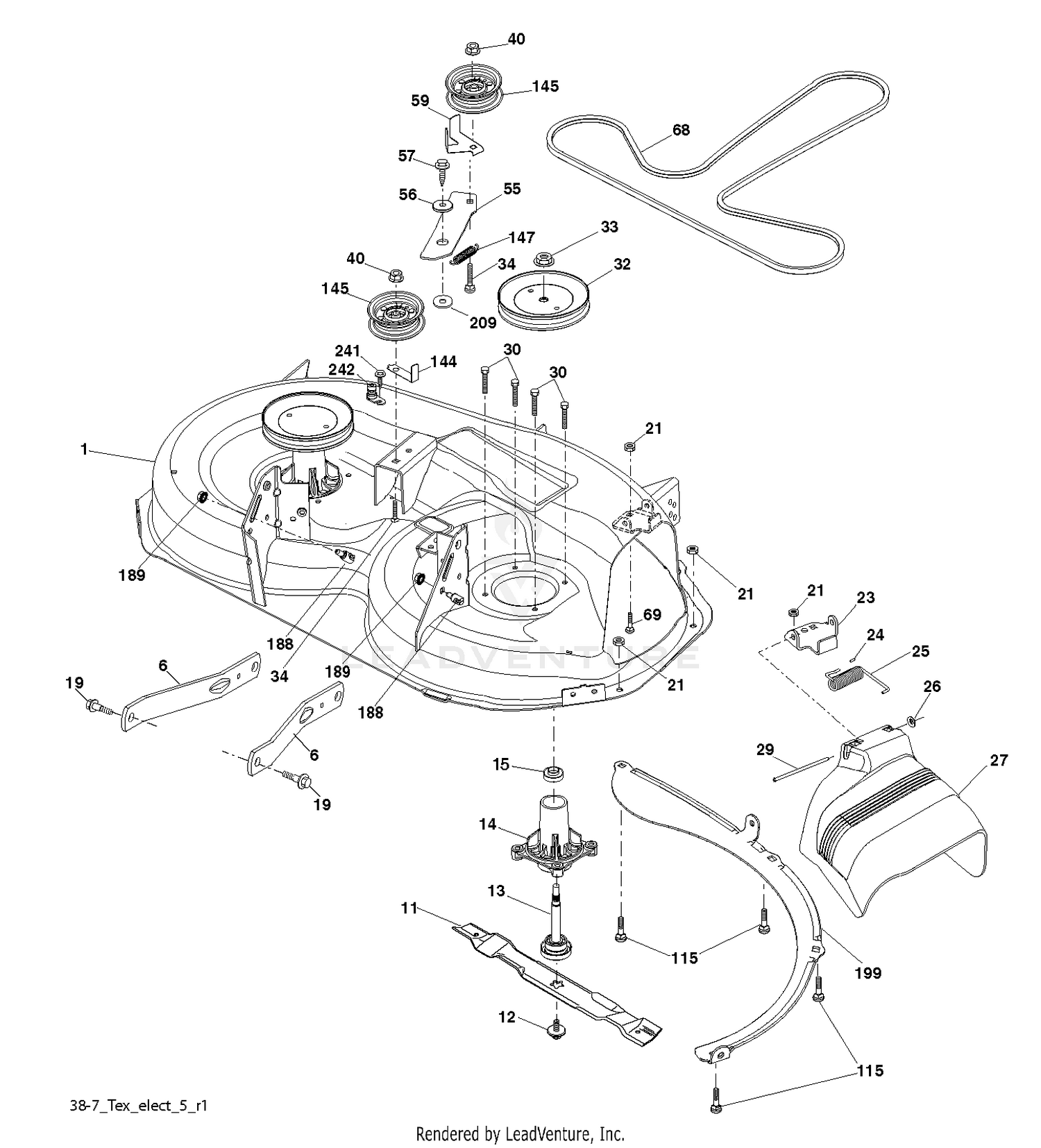

| Ref | Part Number | Description |
|---|
| 1 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 1 |
583498001 |
DECK SVCX1.38"194251X418 KIT This part replaces 532444163. Price: $249.99 |
| 2 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 3 |
3-8514 |
WASHER-THRUST Price: $1.58 |
| 4 |
69-8390 |
SPINDLE PULLEY ASSEMBLY This part replaces 69-8390-01. Price: $162.41 |
| 5 |
253-154 |
SEAL-OIL Price: $5.48 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 6 |
71-2530 |
BEARING/SPACER KIT Price: $160.66 |
| 7 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 8 |
69-1530 |
HOUSING-SPINDLE Price: $227.62 |
| 9 |
32128-21 |
NUT-HF Price: $0.39 |
| 10 |
138-6388 |
SHAFT-SPINDLE This part replaces 69-6760. Price: $189.44 |
| 11 |
138-6416 |
SPACER-SPINDLE, SHAFT This part replaces 92-9800. Price: $18.44 |
| 11 |
532138497 |
BLADE.HI.LIFT.38" Price: $22.99 |
| 12 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 584309301. Price: $6.99 |
| 12 |
69-6920-03 |
BLADE-20 IN. This part replaces 69-6920-01. Price: $31.92 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 587256501. Price: $49.99 |
| 13 |
67-7561 |
CUP-SCALP, ANTI Price: $40.99 |
| 14 |
3253-8 |
WASHER-LOCK Price: $0.47 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
51-4060 |
SCREW-BLADE Price: $7.39 |
| 15 |
585323901 |
BEARING.MANDREL.TOP.EXTENDED Price: $12.99 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 32 |
532173435 |
MANDREL.PULLEY.38.BRIGHT.ZINC This part replaces 532153532. Price: $19.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 55 |
531169401 |
SERVICE KIT IDLER.ARM This part replaces 532197249. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 68 |
583591101 |
BELT.38ELECTRICAL.DECK.DRIVE This part replaces 532447559. Price: $59.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 115 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872110505. Price: $2.99 |
| 144 |
531148901 |
SERVICE.KIT KEEPER BELT KEEPER This part replaces 532193414. Price: $3.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 147 |
532401872 |
SPRING RETURN Price: $4.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 199 |
531170401 |
SERVICE KIT BAFFLE BAFFLE.VORT This part replaces 532400095. Price: $14.99 |
| 209 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
