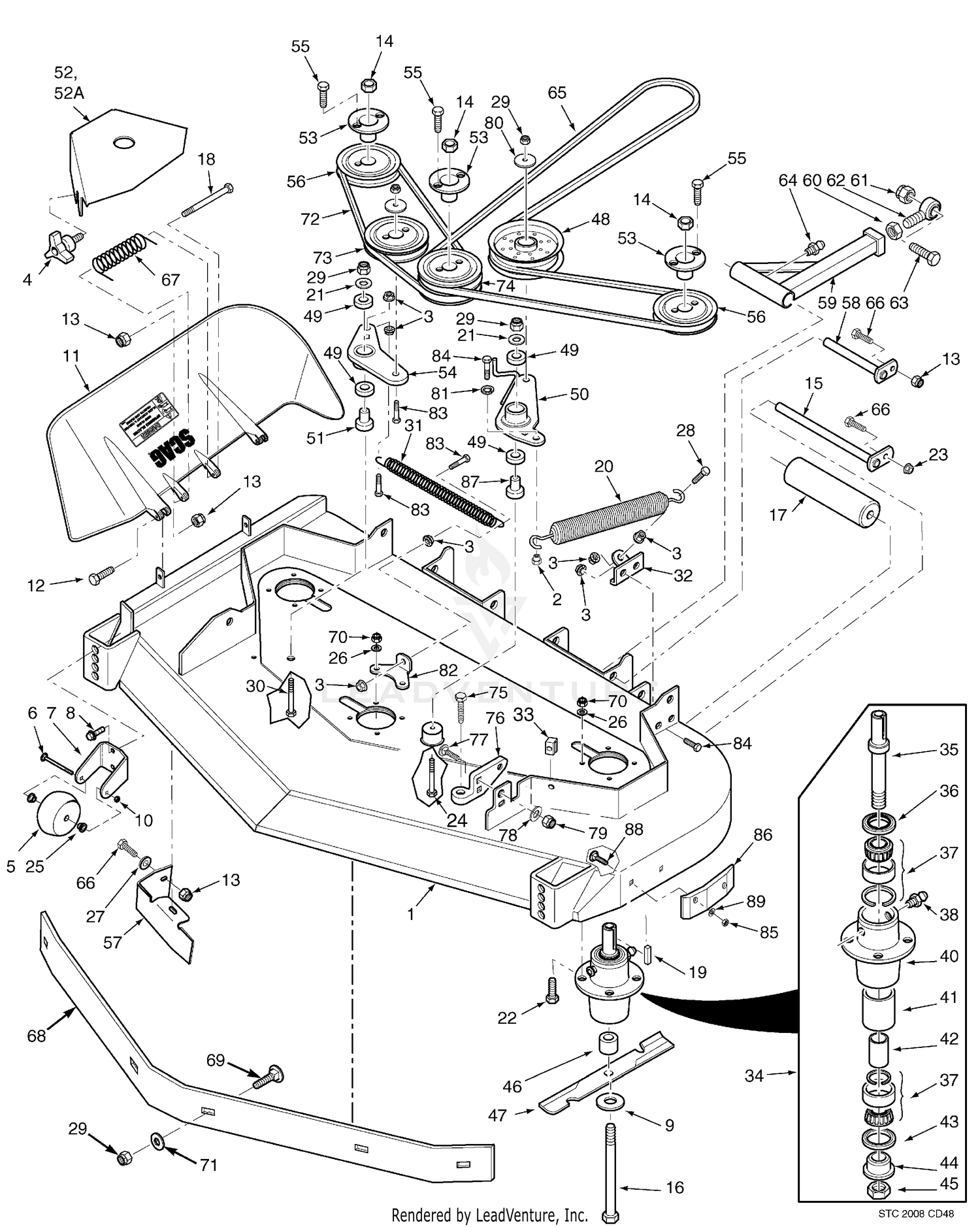

| Ref | Part Number | Description |
|---|
| 1 |
461854 |
Cutter Deck Velocity Plus Price: Call Us |
| 2 |
43686 |
Boss, Spring Anchor Price: Call Us |
| 3 |
04019-04 |
Nut, 3/8-16 Serrated Flange Price: Call Us |
| 4 |
481625-01 |
Wing Nut, 3/8-16 Price: Call Us |
| 5 |
481632 |
Anti-Scalp Wheel Price: Call Us |
| 6 |
04003-26 |
Bolt, Carriage 3/8-16 x 4" Price: Call Us |
| 7 |
422478 |
Bracket, Anti-Scalp Wheel Price: Call Us |
| 8 |
04017-27 |
Bolt, Serrated Flange 3/8-16 x 1" Price: Call Us |
| 9 |
04043-06 |
Flatwasher, 5/8" Hardened Price: Call Us |
| 10 |
04021-05 |
Locknut, 3/8-16 Center Lock Price: Call Us |
| 11 |
461844 |
Discharge Chute Price: Call Us |
| 12 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2", Rear Price: Call Us |
| 13 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 14 |
04020-09 |
Nut, 5/8-11 UNC Price: Call Us |
| 15 |
45944 |
Shaft, Roller Price: Call Us |
| 16 |
04001-41 |
Bolt, Hex Head 5/8-11 x 9-1/2" Price: Call Us |
| 17 |
48038 |
Roller, Rear Price: Call Us |
| 18 |
04001-154 |
Bolt, Hex Head 5/16-18 x 4-3/4" Price: Call Us |
| 19 |
04063-08 |
Key, 1/4 x 1/4 x 2" Price: Call Us |
| 20 |
483246 |
Spring, Idler LH Price: Call Us |
| 21 |
04043-04 |
Flatwasher, 3/8" Price: Call Us |
| 22 |
04001-176 |
Bolt, Hex Head 5/16-18 x 1-3/4" Grade 8 Price: Call Us |
| 23 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 24 |
04001-51 |
Bolt, Hex Head 3/8-16 x 3-3/4" Price: Call Us |
| 25 |
48100-15 |
Bushing, .376 ID Oilite Price: Call Us |
| 26 |
04030-03 |
Lockwasher 5/16" Price: Call Us |
| 27 |
04040-15 |
Flatwasher 5/16" Price: Call Us |
| 28 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Gr. 8 Price: Call Us |
| 29 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 30 |
04001-31 |
Bolt, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 31 |
483247 |
Spring, Idler RH Price: Call Us |
| 33 |
04110-03 |
U-Nut, 3/8-16 Price: Call Us |
| 34 |
461663 |
Spindle Assembly Price: Call Us |
| 35 |
43589 |
Shaft, Spindle Price: Call Us |
| 36 |
481024 |
Seal Upper Price: Call Us |
| 37 |
481022 |
Bearing Assembly Price: Call Us |
| 38 |
48114-04 |
Grease Fitting Price: Call Us |
| 39 |
48677 |
Valve, Grease Relief Price: Call Us |
| 40 |
43644 |
Housing, Spindle Price: Call Us |
| 41 |
43312 |
Spacer, Outside Price: Call Us |
| 42 |
43296 |
Spacer, Inside Price: Call Us |
| 43 |
481025 |
Seal, Lower Price: Call Us |
| 44 |
43297 |
Bushing, Bottom Price: Call Us |
| 45 |
481035 |
Nut, Special 1-1/16 - 18 Price: Call Us |
| 46 |
43590 |
Spacer, Spindle Price: Call Us |
| 47 |
482877 |
Cutter Blade, 16-1/2" Price: Call Us |
| 48 |
483210 |
Pulley, Idler 5" Dia. Price: Call Us |
| 49 |
48224 |
Bearing Price: Call Us |
| 50 |
462269 |
Idler Arm This part replaces 461940. Price: Call Us |
| 51 |
43689 |
Idler Pivot Price: Call Us |
| 53 |
48926 |
Hub, Tapered 1-1/8" Bore Price: Call Us |
| 54 |
461946 |
Idler Arm Price: Call Us |
| 55 |
04001-172 |
Bolt, Hex Head 1/4-20 x 1" Grade 8 Price: Call Us |
| 56 |
483282 |
Pulley, 5.13" Dia. Price: Call Us |
| 57 |
424677 |
Turbo Baffle - 48V / 52V This part replaces 424208. Price: Call Us |
| 58 |
451240 |
Push Arm Shaft Price: Call Us |
| 60 |
04020-16 |
Nut, 5/8-18 UNF Price: Call Us |
| 61 |
04021-13 |
Nut, Elastic Stop 5/8-11 Price: Call Us |
| 62 |
48763 |
Rod End, 5/8 Male RH Thread Price: Call Us |
| 63 |
04001-79 |
Bolt, Hex Head 5/8-11 x 4-1/2" Price: Call Us |
| 64 |
48114-04 |
Grease Fitting, 90 Degree Price: Call Us |
| 66 |
04001-09 |
Bolt, Hex Head 5/16-18 x 1" Price: Call Us |
| 67 |
483378 |
Spring, Discharge Chute Price: Call Us |
| 69 |
04003-23 |
Bolt, Carriage 3/8-16 x 1" Price: Call Us |
| 70 |
04021-22 |
Nut, Elastic Stop 5/16-18 Grade 8 Price: Call Us |
| 71 |
04043-04 |
Flatwasher 3/8" Price: Call Us |
| 72 |
483239 |
Belt, RH Cutter Deck Price: Call Us |
| 73 |
48181 |
Pulley, Idler 5" Dia. Price: Call Us |
| 74 |
483283 |
Pulley, Double Groove Price: Call Us |
| 75 |
483167 |
Bolt, Special Price: Call Us |
| 76 |
461929 |
Lever Assy., Deck Level Price: Call Us |
| 77 |
04003-40 |
Bolt, Carriage 7/16-14 x 1-1/4" Price: Call Us |
| 78 |
04040-11 |
Flatwasher, 7/16-.500 x 1.25 x .083 Price: Call Us |
| 79 |
04021-11 |
Nut, Elastic Stop 7/16-14 Price: Call Us |
| 80 |
424367 |
Dust Shield Price: Call Us |
| 81 |
04030-03 |
Lockwasher 3/8" Price: Call Us |
| 82 |
424376 |
Bracket, Spring Anchor RH Price: Call Us |
| 83 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Gr. 8 Price: Call Us |
| 84 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 85 |
04021-04 |
Nut, Center Lock, 5/16-18(32) Price: Call Us |
| 86 |
483176 |
Wear Pad Price: Call Us |
| 87 |
43689 |
Idler Pivot Price: Call Us |
| 88 |
04003-12 |
Bolt, Carraige 5/16-18 x 3/4" Price: Call Us |
