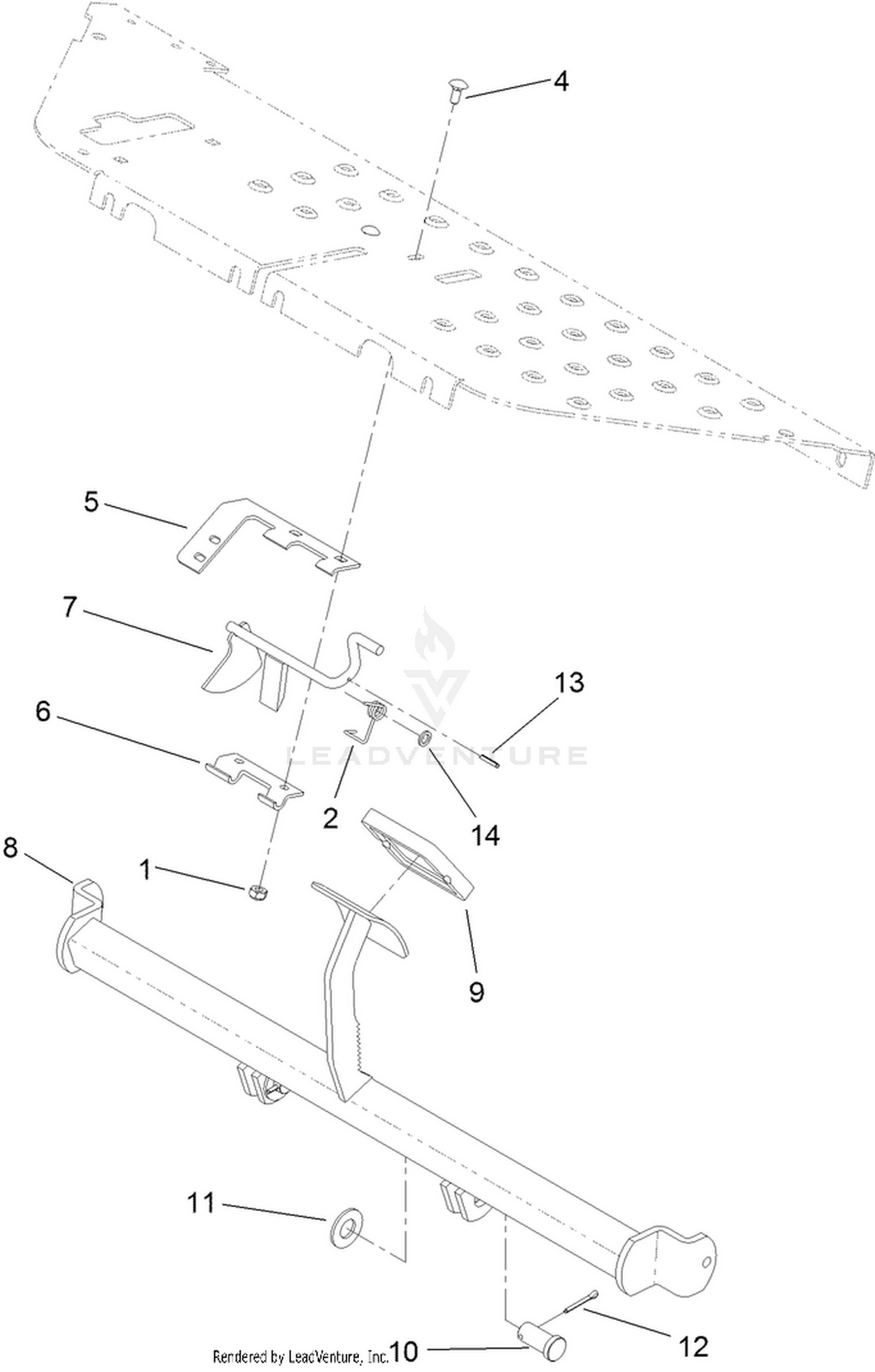

Brake Pedal Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3296-16 | NUT-LOCK, NI Price: $1.39 |
| 2 | 104-7704 | SPRING-LATCH, BRAKE Price: $12.68 |
| 4 | 3229-11 | SCREW-CARR Price: $0.99 |
| 5 | 132-3807 | BRACKET-SWITCH Price: $14.00 |
| 6 | 104-7703 | HINGE-LOWER Price: $22.15 |
| 7 | 104-2094 | BRAKE-LATCH Price: $150.10 |
| 8 | 93-2075-01 | BRAKE PEDAL ASM Price: $188.33 |
| 9 | 93-7629 | PAD-FOOT, BRAKE Price: $25.13 |
| 10 | 283-87 | PIN-CLEVIS Price: $8.89 |
| 11 | 3256-27 | WASHER-FLAT Price: $0.47 |
| 12 | 3272-11 | PIN-COTTER Price: $0.99 |
| 13 | 32121-50 | PIN-SPRING Price: $1.21 |
