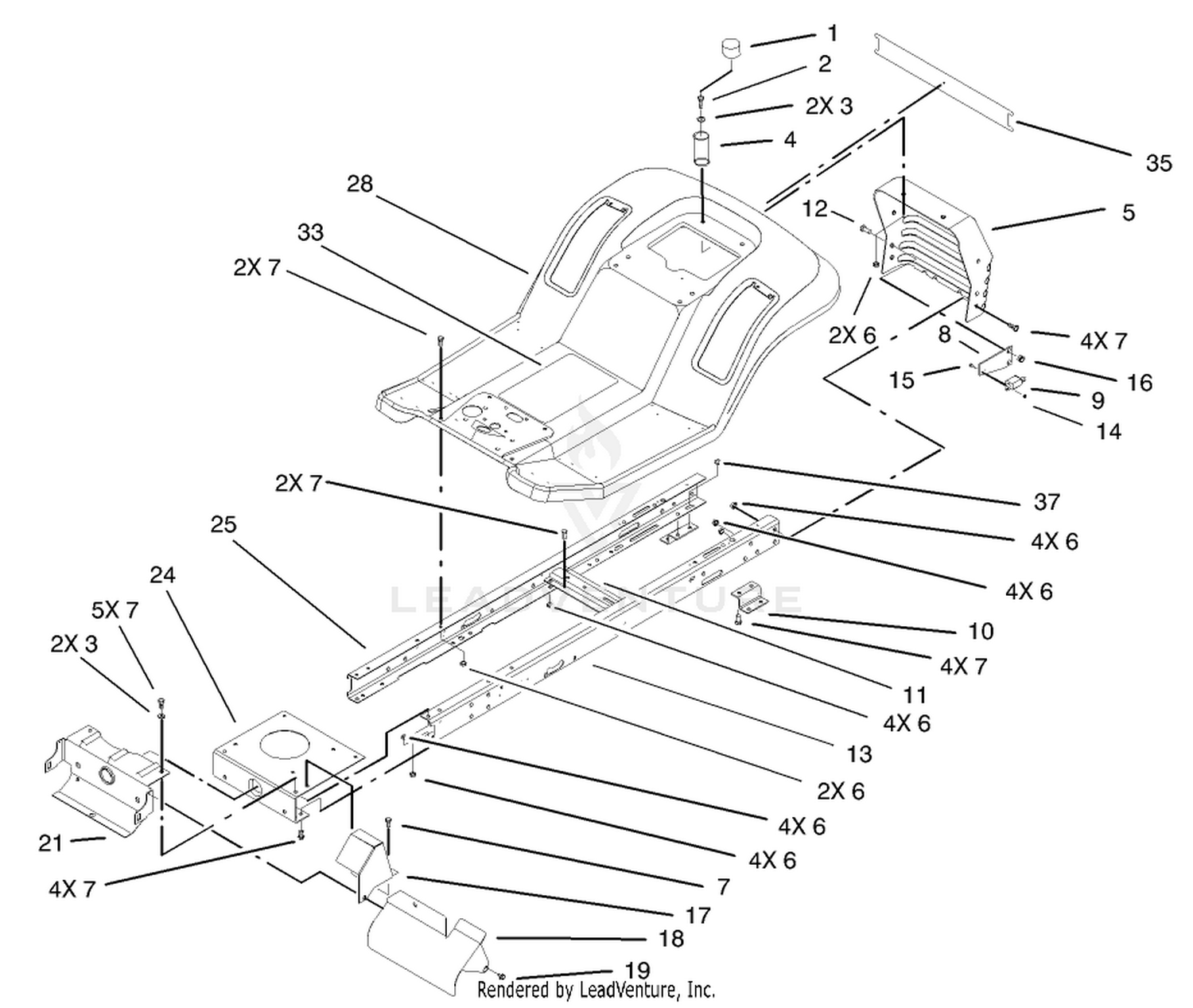

| Ref | Part Number | Description |
|---|
| 1 |
701178 |
CAP-PROTECTOR Price: $1.45 |
| 2 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 3 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 4 |
88-6220 |
SPRING-COMPRESSION Price: $19.09 |
| 5 |
99-2957-03 |
SUPPORT-SEAT/REAR HITCH Price: $104.43 |
| 6 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 7 |
322-3 |
SCREW-HH Price: $0.79 |
| 8 |
99-2953-03 |
PLATE-SWITCH Price: $5.81 |
| 9 |
95-1653 |
SWITCH-POLE, SINGLE Price: $18.99 |
| 10 |
94-1967-03 |
BRACKET-MOUNTING, TRANSMISSION Price: $9.15 |
| 11 |
88-4620-03 |
BRACKET-IDLER PIVOT Price: $17.27 |
| 12 |
322-3 |
SCREW-HH Price: $0.79 |
| 13 |
99-2958-03 |
RAIL-FRAME, LH Price: $68.83 |
| 14 |
3296-1 |
NUT-LOCK Price: $0.25 |
| 15 |
3290-392 |
SCREW-SHH Price: $0.53 |
| 16 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 17 |
88-4960-03 |
SHIELD-EXHAUST PIPE Price: $11.31 |
| 18 |
88-6290-03 |
SHIELD-MUFFLER Price: $31.64 |
| 19 |
32104-76 |
SCREW-HWHTF Price: $2.29 |
| 21 |
110-8636-03 |
SUPPORT-AXLE, FRONT This part replaces 98-3575-03. Price: $40.08 |
| 24 |
88-4630-03 |
PLATE-MOUNTING, ENGINE Price: $46.82 |
| 25 |
99-2959-03 |
RAIL-FRAME, RH Price: $68.83 |
| 28 |
99-2971 |
REAR BODY ASM Price: $478.61 |
| 33 |
93-6675 |
DECAL-GEAR Price: $22.94 |
| 35 |
105-2498 |
DECAL-REAR FENDER, LAWN TRACTORS Price: $9.97 |
