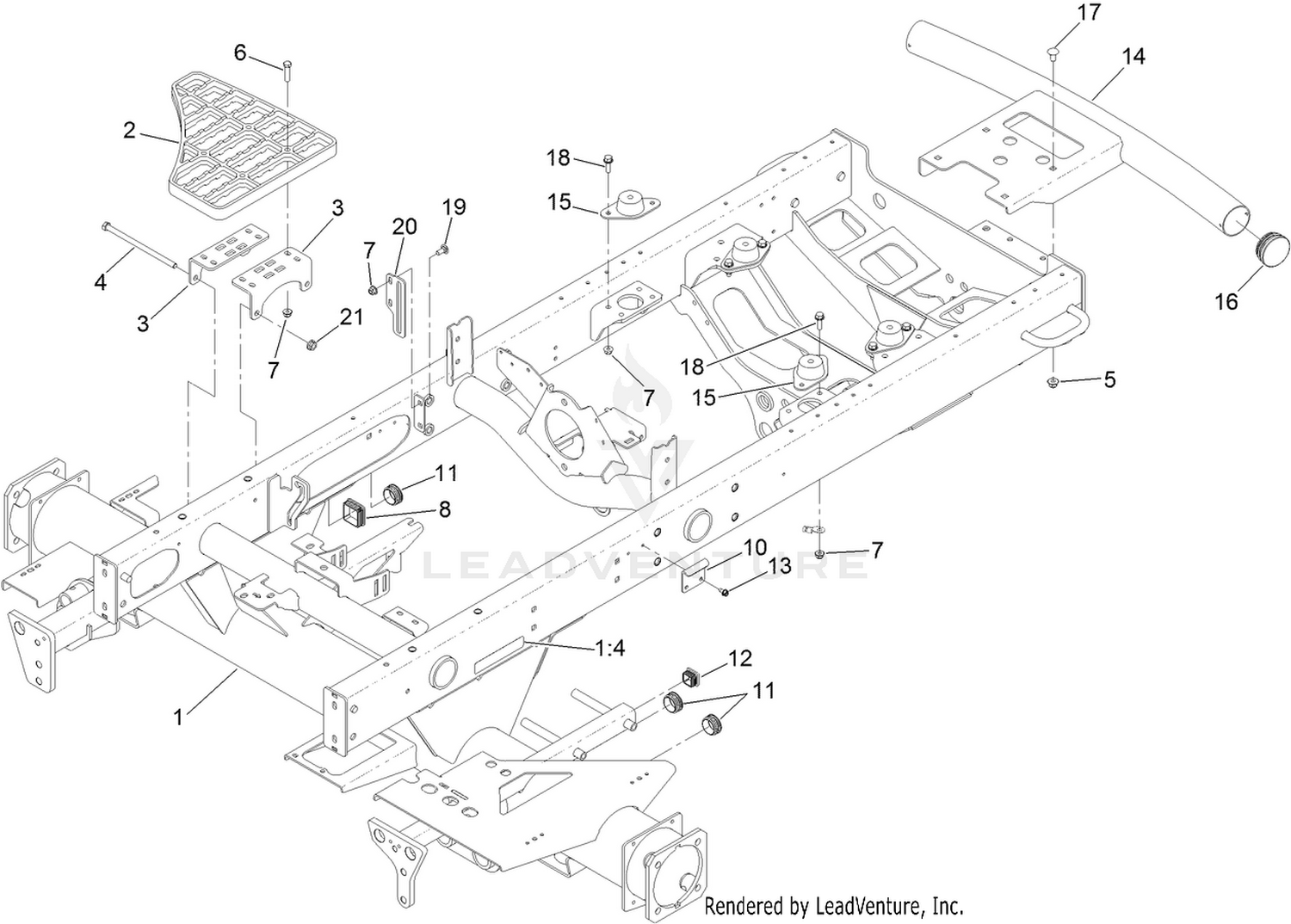

Frame Assembly
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-3803 | FRAME ASM Price: $6,155.64 |
| 2 | 110-9041 | STEP-ALUMINUM Price: $158.64 |
| 3 | 127-2697-01 | BRACKET-STEP Price: $21.97 |
| 4 | 323-36 | SCREW-HH Price: $3.05 |
| 5 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 6 | 322-17 | SCREW-HH Price: $2.62 |
| 7 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 8 | 95-9495 | CAP Price: $5.02 |
| 10 | 110-8972 | HOOK-LATCH Price: $8.25 |
| 11 | 110-9012 | CAPLUG Price: $3.94 |
| 12 | 110-9013 | CAPLUG Price: $3.94 |
| 13 | 32104-17 | SCREW-HWH Price: $0.99 |
| 14 | 147-3550 | BUMPER ASM This part replaces 110-8951-03. Price: $230.25 |
| 15 | 120-6274 | MOUNT-ENGINE Price: $30.17 |
| 16 | 2410-42 | CAP-END Price: $11.62 |
| 17 | 3231-21 | SCREW-CARR Price: $0.76 |
| 18 | 3234-29 | SCREW-HHF Price: $1.84 |
| 19 | 3230-1 | BOLT-CARR Price: $1.49 |
| 20 | 108-7584-01 | PLATE-GUIDE, ROD Price: $12.35 |
