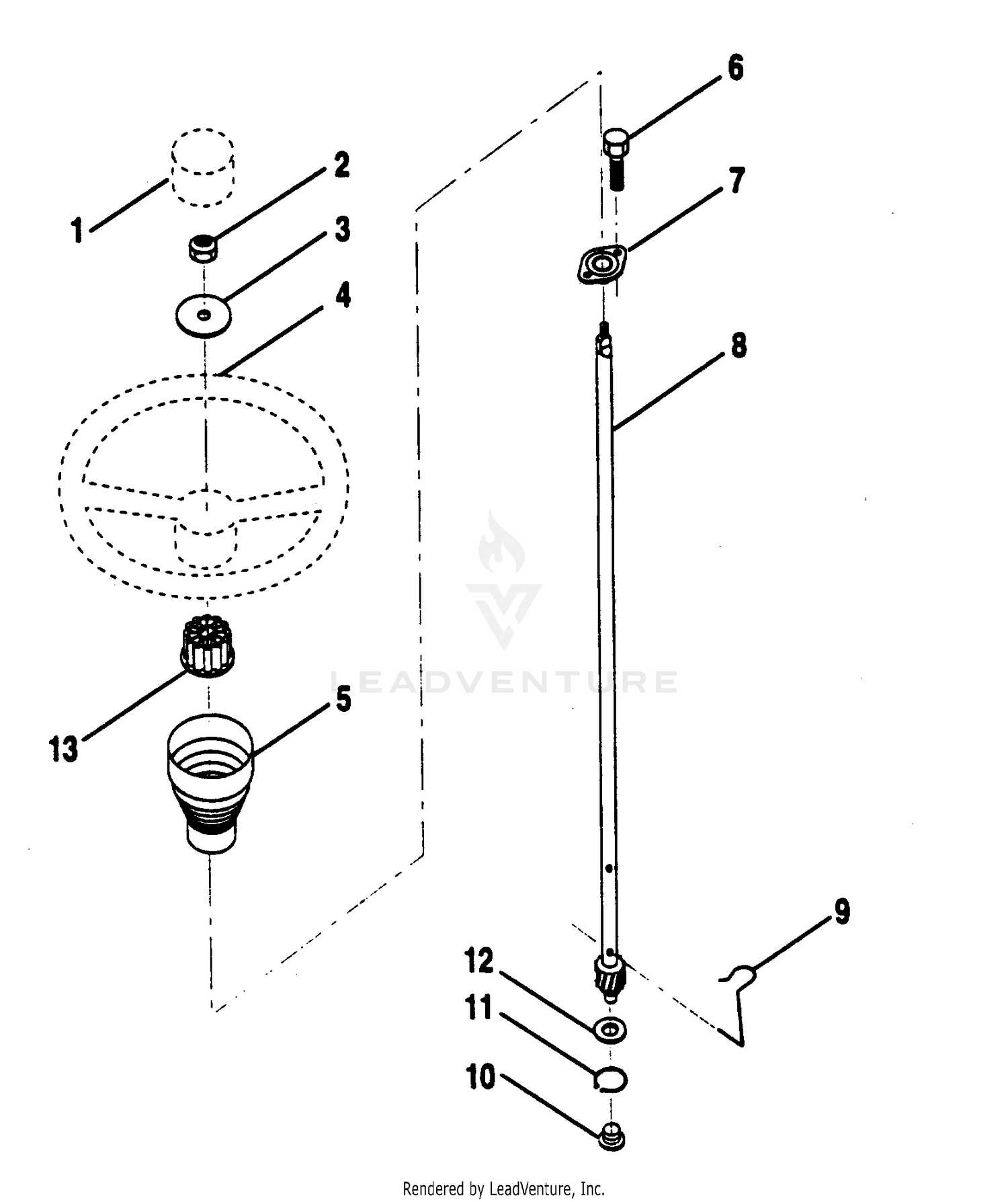

| Ref | Part Number | Description |
|---|
| 1 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 1 |
532133742 |
Insert, Wheel, Steering (AYP part number) Price: $5.99 |
| 2 |
532124701 |
Nut, Lock 3/8-24 UNF (AYP part number) Price: $5.99 |
| 2 |
93-8806 |
WASHER-HARDENED Price: $1.62 |
| 3 |
140-6221 |
LINK AND BUSHING ASSEMBLY This part replaces 16-9759. Price: $70.43 |
| 3 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133808. Price: $3.99 |
| 4 |
532133741 |
Wheel, Steering (AYP part number) Price: $109.99 |
| 4 |
93-6981 |
SPACER Price: $4.69 |
| 5 |
3231-40 |
BOLT-CARR, SHORT NECK Price: $1.27 |
| 5 |
532121897 |
Sleeve, Steering (AYP part number) Price: $8.99 |
| 6 |
115-4263 |
PLATE-SIDE, RH Price: $329.24 |
| 6 |
817211008 |
Screw, Hex Wsh. Tap #10-16 x 1/2 (AYP part number) This part replaces 817431008. Price: $2.99 |
| 7 |
115-4260 |
PLATE-SIDE, LH Price: $329.24 |
| 7 |
532155107 |
STEERING BUSHING KIT This part replaces 532102803. Price: $3.99 |
| 8 |
112-8979 |
TUBE-SUPPORT Price: $52.72 |
| 8 |
532148966 |
SHAFT STEERING This part replaces 532123651. Price: $109.99 |
| 9 |
112-8978 |
FRAME-CENTER Price: $494.59 |
| 9 |
532124210 |
Clip, Steering (AYP part number) Price: $3.99 |
| 10 |
532123438 |
Bushing, Lower, Steering (AYP part number) Price: $3.99 |
| 11 |
812000045 |
Ring, Retaining (AYP part number) Price: $3.99 |
| 12 |
110-4058 |
BRACKET-CHAIN Price: $32.43 |
| 12 |
819211616 |
Washer 21/32 x 1 x 16 Ga. (AYP part number) Price: $3.99 |
| 15 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 16 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 17 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 18 |
107-2979 |
BOLT-SHOULDER Price: $3.94 |
