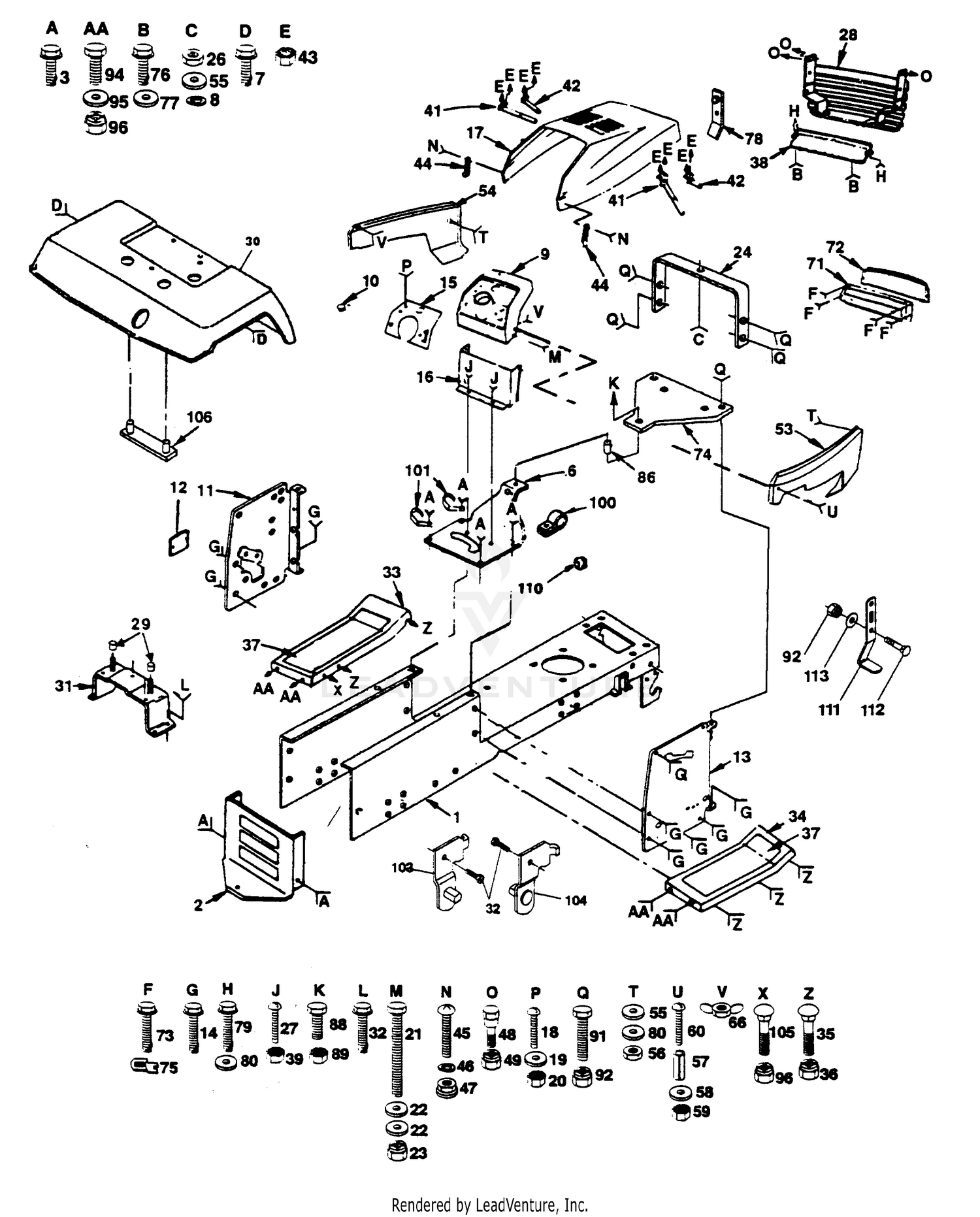

| Ref | Part Number | Description |
|---|
| 1 |
532145501 |
Chassis Weldment 11ga (AYP part number) This part replaces 532140341. Price: $130.75 |
| 1 |
784106 |
Lever Housing Assy., Shift (Incl. Nos. 2 thru 7) Model 2307-B Price: Call Us |
| 2 |
532145009 |
KIT.DRAWBAR.SERVICE This part replaces 532140356. Price: $37.99 |
| 2 |
792016 |
Ring-Snap Price: Call Us |
| 3 |
792001 |
O Ring Price: Call Us |
| 3 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 4 |
792049 |
Pin-Roll Price: Call Us |
| 5 |
784093 |
Housing-Shift Lever Price: Call Us |
| 6 |
532127543 |
Saddle Slkscr (AYP part number) Price: $44.00 |
| 6 |
784094 |
Keeper-Shift Lever Price: Call Us |
| 7 |
784107 |
Lever, Shift Price: Call Us |
| 7 |
817490608 |
Screw Thdrol 3/8 - 16 x Ty-TT (AYP part number) Price: $3.99 |
| 8 |
784054 |
Rod Assy., Shift (Incl. Nos. 9 thru 12 24) Price: Call Us |
| 8 |
810040400 |
Washer Lock Hvy. Helical 1/4 (AYP part number) Price: $3.99 |
| 9 |
532140398 |
Dash Black Yard Pro (AYP part number) Price: $129.99 |
| 9 |
792003 |
Spring Price: Call Us |
| 10 |
532125085 |
Plug Dash Blk 5009 Dia. E. Lift (AYP part number) Price: $5.54 |
| 10 |
792004 |
Piston ASM Price: Call Us |
| 11 |
532136967 |
Panel Pnt Dash Lh (AYP part number) Price: $13.98 |
| 11 |
784004 |
Shift Fork Price: Call Us |
| 12 |
532121794 |
Cover Access Black Square (AYP part number) Price: $3.99 |
| 12 |
784055 |
Rod, Shifter Price: Call Us |
| 13 |
532136970 |
Panel Pnt Dash Rh (AYP part number) Price: $13.87 |
| 13 |
784056 |
Rod Assy., Shift (Incl. Nos. 9, 10, 11, 14 24) Price: Call Us |
| 14 |
784057 |
Rod, Shifter Price: Call Us |
| 14 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 15 |
532142122 |
Plate Silkscreened Dash (AYP part number) Price: $64.99 |
| 15 |
774163 |
Axle Price: Call Us |
| 16 |
532104805 |
Dash Pnt Lower (AYP part number) Price: $34.49 |
| 16 |
780042 |
Washer Price: Call Us |
| 17 |
532144524 |
Hood Pnt (AYP part number) Price: $3.33 |
| 17 |
792056 |
Screw, Hex Hd. Cap Price: Call Us |
| 18 |
792006 |
Lockwasher Price: Call Us |
| 18 |
874180512 |
Screw Mach Trhd 5/16 - 18 UNC x 3/4 (AYP part number) Price: $3.99 |
| 19 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.99 |
| 19 |
778080 |
Gear, Ring Price: Call Us |
| 20 |
873510500 |
Nut Keps 5/16 - 18 UNC (AYP part number) Price: $5.99 |
| 21 |
786052 |
Core, Body Price: Call Us |
| 21 |
874760620 |
BOLT This part replaces 874780620. Price: $3.99 |
| 22 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 22 |
778078 |
Gear, Pinion Price: Call Us |
| 23 |
776029A |
Shaft Gear-Brake Price: Call Us |
| 23 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 24 |
532124130 |
Support Pnt Dash (AYP part number) Price: $12.22 |
| 24 |
792017 |
Ring-Snap Price: Call Us |
| 25 |
776026 |
Shaft Bearing Assy., Pinion (Incl. No. 26) Price: Call Us |
| 26 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 26 |
780018 |
Bearing Price: Call Us |
| 27 |
778034 |
Gear Cluster Assy. (Incl. No. 28) Price: Call Us |
| 27 |
874180512 |
Screw mach Trhd 5/16 - 18 UNC x 3/4 (AYP part number) Price: $3.99 |
| 28 |
532131681 |
Grille Asm (AYP part number) Price: $3.33 |
| 28 |
780053 |
Bushing Price: Call Us |
| 29 |
532105531 |
Nut Push Nylon (AYP part number) Price: $2.99 |
| 29 |
784074 |
Stop-Shifter Price: Call Us |
| 30 |
532144523 |
Fender Pnt (AYP part number) Price: $329.99 |
| 30 |
788023 |
Gasket-Case Cover Price: Call Us |
| 31 |
532137113 |
Bracket Pnt Fender (AYP part number) Price: $5.99 |
| 31 |
788022 |
Gasket-Lever Housing Price: Call Us |
| 32 |
778050 |
Gear, Shifting (3rd 4th) Price: Call Us |
| 32 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 33 |
532124888 |
Footrest Pnt Lh (AYP part number) Price: $3.33 |
| 33 |
778020 |
Gear, Shifting Price: Call Us |
| 34 |
532124889 |
Footrest Pnt Th (AYP part number) Price: $3.33 |
| 34 |
778079 |
Gear, Side Price: Call Us |
| 35 |
778037 |
Gear-Spur Price: Call Us |
| 35 |
872110606 |
Bolt Rdhd Sht Sqnk 3/8 - 16 x 3/4 (AYP part number) Price: $2.99 |
| 36 |
778049 |
Gear Cluster Assy. (Incl.28) Price: Call Us |
| 36 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 37 |
532133671 |
Pad Footrest (AYP part number) Price: $7.99 |
| 37 |
786024 |
Spacer Price: Call Us |
| 38 |
532124978 |
Strap Grille (AYP part number) Price: $3.33 |
| 38 |
792018 |
Ring-Snap Price: Call Us |
| 39 |
776053 |
Shaft, Input Price: Call Us |
| 39 |
873510500 |
Nut Keps 5/16 - 18 UNC (AYP part number) Price: $5.99 |
| 40 |
778024 |
Gear (10 teeth) Price: Call Us |
| 41 |
532106784 |
Strap Asm Pnt Hinge Rear (blk) (AYP part number) Price: $82.19 |
| 41 |
780052 |
Washer-Thrust Price: Call Us |
| 42 |
532104618 |
Strap Asm Pnt Hinge Front (AYP part number) Price: $82.19 |
| 42 |
788036 |
Seal Retainer Assy., Oil (Incl. No. 45) Price: Call Us |
| 43 |
778036 |
Gear-Output Price: Call Us |
| 43 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 44 |
532109808 |
Latch Chute Blk (AYP part number) Price: $2.99 |
| 44 |
778052 |
Pinion, Output Price: Call Us |
| 45 |
788008 |
Seal-Oil Price: Call Us |
| 45 |
871191008 |
SCREW.PNHD.10-24 This part replaces 874191008. Price: $3.99 |
| 46 |
810071000 |
Washer Lock #10 (AYP part number) Price: $2.99 |
| 47 |
532002029 |
NUT.WELD.#10-24 (2 2) This part replaces 532125004. Price: $2.99 |
| 47 |
772041 |
Cover Assy., Transaxle (Incl. Nos.54,55,57,59,63 Price: Call Us |
| 48 |
532007605 |
BOLT This part replaces 532123481. Price: $3.99 |
| 48 |
770029 |
Case Assy., Transaxle (Incl. Nos. 54, 55, 57 63) Price: Call Us |
| 49 |
792007 |
Screw Price: Call Us |
| 49 |
873680400 |
Nut Crownlock 1/4 - 20 UNC (AYP part number) Price: $2.99 |
| 49A |
792031 |
Screw Price: Call Us |
| 50 |
786026 |
Dowel Pin Price: Call Us |
| 52 |
792019 |
Plug-Magnetic Drain Price: Call Us |
| 53 |
532144526 |
Panel Pnt Rh Side (AYP part number) Price: $3.33 |
| 53 |
792055 |
Nut Price: Call Us |
| 54 |
532144525 |
Panel Pnt Lh Side (AYP part number) Price: $3.33 |
| 54 |
780049 |
Bearing-Needle Price: Call Us |
| 55 |
530105 |
Bearing-Cartridge Price: Call Us |
| 55 |
531003379 |
WASHER This part replaces 819091216. Price: $2.99 |
| 56 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 57 |
532007206 |
Spacer Split #10 x 3/4 Cad/Zin (AYP part number) Price: $3.99 |
| 57 |
780047 |
Bearing-Needle Price: Call Us |
| 58 |
819070816 |
Washer 7/32 x 1/2 x 16 Ga. (AYP part number) This part replaces 819070818. Price: $5.99 |
| 59 |
780046 |
Bearing-Needle Price: Call Us |
| 59 |
873271000 |
NUT This part replaces 873731000. Price: $2.99 |
| 60 |
874981024 |
SCREW.PAN.HEAD This part replaces 874981020. Price: $5.99 |
| 61 |
780001 |
Washer Price: Call Us |
| 62 |
776031 |
Shaft Pinion Price: Call Us |
| 63 |
780048 |
Bearing Needle Price: Call Us |
| 64 |
776030 |
Shaft-Reverse Idler Price: Call Us |
| 65 |
786025 |
Spacer-Reverse Idler Price: Call Us |
| 66 |
532146525 |
This part replaces 532123198. Price: $3.99 |
| 66 |
778051 |
Idler-Reverse Price: Call Us |
| 67 |
778038 |
Gear-Spur (22 Teeth) Price: Call Us |
| 68 |
780039 |
Bearing-Thrust Price: Call Us |
| 69 |
774238 |
Carrier Assy., Differential (Incl. No. 76) Price: Call Us |
| 70 |
774239 |
Carrier Assy., Differential (Incl. No. 76) Price: Call Us |
| 71 |
532124392 |
Bezel, Assembly (AYP part number) This part replaces 532124939. Price: $109.99 |
| 71 |
792060 |
Tab, Locking Price: Call Us |
| 72 |
532106395 |
Lens Headlight Bar Clear (AYP part number) Price: $55.81 |
| 72 |
788024 |
O-Ring Price: Call Us |
| 73 |
780007 |
Washer-Thrust Price: Call Us |
| 73 |
817211010 |
Screw Hex Whd Tap #10-16 x 5/8 (AYP part number) Price: Call Us |
| 74 |
532140181 |
Plate Pnt Sprt Battery (blk) (AYP part number) Price: $3.68 |
| 74 |
780051 |
Washer Price: Call Us |
| 75 |
532104755 |
Fastener "J" (AYP part number) Price: $2.38 |
| 75 |
792010 |
Plug Price: Call Us |
| 76 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 76 |
780041 |
Bushing Price: Call Us |
| 77 |
819131210 |
Washer 13/32 x 3/4 x 10 Ga. (AYP part number) Price: $2.99 |
| 78 |
532132644 |
Bracket Grille Galv Price: $2.42 |
| 79 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817190412. Price: $3.99 |
| 80 |
819091016 |
Washer 9/32 x 5/8 x 16 Ga. (AYP part number) Price: $2.99 |
| 86 |
532121236 |
Spacer Split 59/ x 1.25 Blk/zin (AYP part number) Price: $2.38 |
| 88 |
874760532 |
Bolt Fin Hex 5/16 - 18 x 2 (AYP part number) Price: $2.99 |
| 89 |
873800500 |
Nut Lock Hx w/Ins. 5/16 - 18 (AYP part number) Price: $2.99 |
| 91 |
874780616 |
Bolt Hex 3/8 - 16 x 3/4 (AYP part number) Price: $3.99 |
| 92 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 94 |
874780616 |
Bolt Fin Hex 3/8 - 16 Unc x 1 (AYP part number) Price: $3.99 |
| 95 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 96 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 100 |
532002751 |
Clip, Insulated (AYP part number) This part replaces 532124996. Price: $2.42 |
| 101 |
532126471 |
Clip Insulator (AYP part number) Price: $2.99 |
| 103 |
532139886 |
Bracket Asm Pivot Lh (AYP part number) Price: $5.99 |
| 104 |
532139887 |
Bracket Asm Pivot Rh (AYP part number) Price: $5.99 |
| 105 |
872110608 |
BOLT D This part replaces 872140608. Price: $3.99 |
| 106 |
532140675 |
Strap Asm. Fender (AYP part number) Price: $3.99 |
| 110 |
532009151 |
Grommet (AYP part number) This part replaces 532110436. Price: $2.99 |
| 111 |
532142992 |
Stop Over Center (AYP part number) Price: $3.99 |
| 112 |
872240608 |
Bolt Carriage 3/8-16 x 1 (AYP part number) Price: $2.99 |
