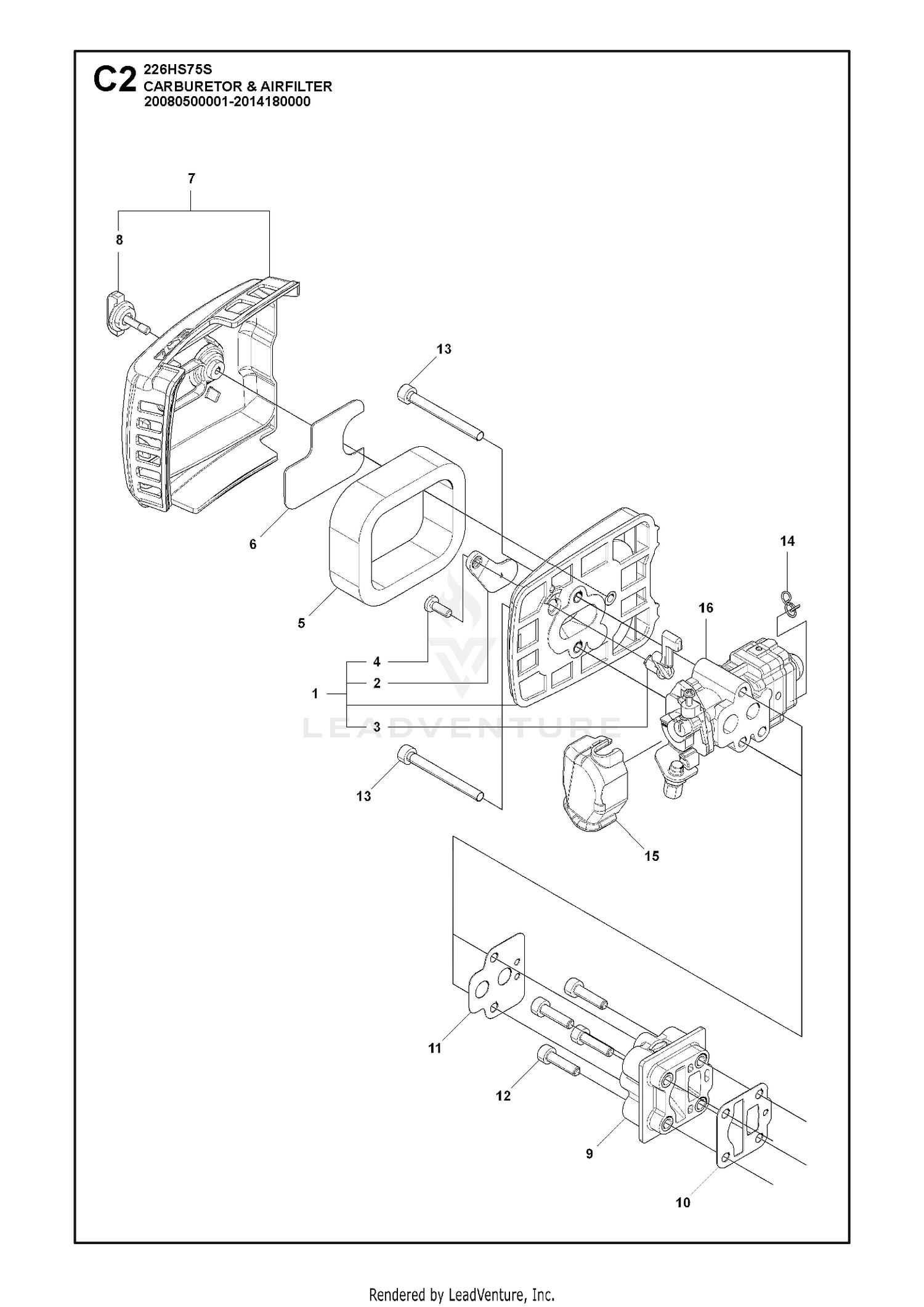

CARBURETOR & AIR FILTER
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506652701 | BODY ASSY Price: $12.99 |
| 2 | 506683601 | PLATE, choke Price: $2.98 |
| 3 | 506683701 | LEVER Price: $1.73 |
| 4 | 516771801 | RP_SCREW (RPLS 50030272) This part replaces 506614001. Price: $2.99 |
| 5 | 506652901 | ELEMENT Price: $4.99 |
| 6 | 506683801 | SCREEN Price: $2.99 |
| 7 | 506657301 | COVER ASSY Price: $17.99 |
| 9 | 511349701 | INSULATOR Price: $9.99 |
| 10 | 593136001 | GASKET Price: $4.99 |
| 11 | 521755001 | GASKET, CARB (RPLS T155113131) Price: $3.99 |
| 12 | 506689001 | BOLT TORX Price: $3.99 |
| 13 | 504116501 | BOLT Price: $2.99 |
| 14 | 506741501 | CLIP Price: $2.99 |
| 15 | 506744201 | COVER Price: $4.99 |
| 16 | 511354201 | CARBURETOR ASSY. This part replaces 506656401. Price: $109.99 |
