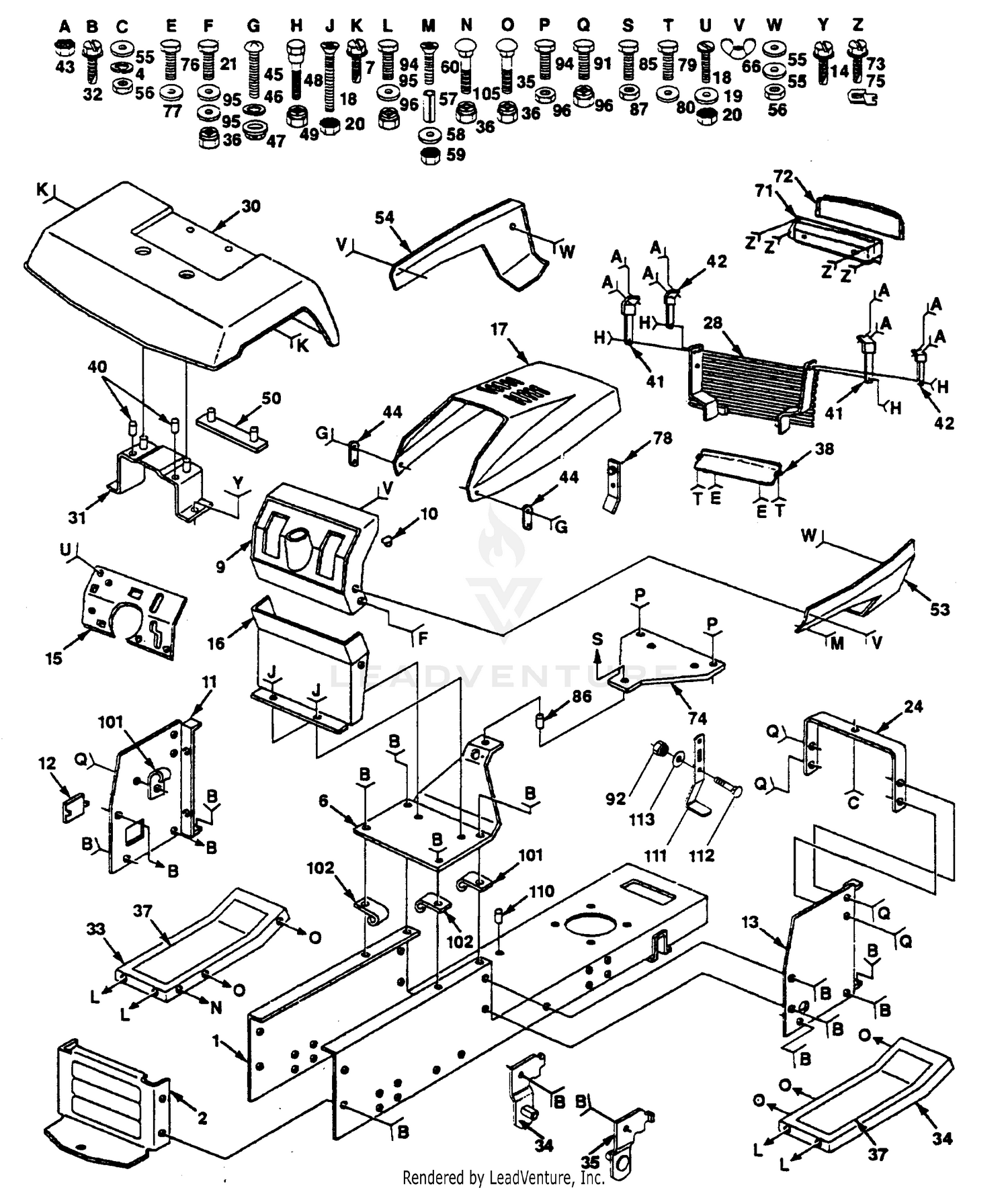

| Ref | Part Number | Description |
|---|
| 1 |
110-4817 |
KIT - AXLE HOUSING This part replaces 95-7538. Price: $657.17 |
| 1 |
532145501 |
Chassis Weldment 11ga This part replaces 532140341. Price: $130.75 |
| 2 |
115-0622 |
SEAL - OIL This part replaces 100-2557. Price: $10.23 |
| 2 |
532145009 |
This part replaces 532140356. Price: $35.99 |
| 3 |
104-2378 |
BUSHING This part replaces 100-2558. Price: $40.73 |
| 4 |
104-2376 |
KNUCKLE ASM This part replaces 95-7511. Price: $68.43 |
| 4 |
810040400 |
Washer, Lock, Hvy Hlcl 1/4 Price: $3.99 |
| 5 |
104-2376 |
KNUCKLE ASM This part replaces 95-7510. Price: $68.43 |
| 6 |
104-2374 |
BOLT This part replaces 99-7596. Price: $6.33 |
| 6 |
532127543 |
Saddle Price: $44.00 |
| 7 |
817490608 |
Screw Thdrol 3/8-16 x 1/2 Ty-tt Price: $3.99 |
| 7 |
95-7513 |
SUPPORT, AXLE CASE LH Price: $193.94 |
| 8 |
95-7515 |
DISCONTINUED Price: Call Us |
| 9 |
532140398 |
Dashboard Price: $122.99 |
| 9 |
99-7529 |
BUSHING Price: $16.99 |
| 10 |
532125085 |
Plug, Button Price: $5.54 |
| 10 |
95-7547 |
SHIM 0.1 Price: $2.53 |
| 11 |
532136967 |
Dash Panel, LH Price: $13.98 |
| 11 |
99-7597 |
PIN-DOWEL Price: $3.74 |
| 12 |
532121794 |
Cover Access Price: $3.99 |
| 12 |
99-7598 |
BOLT Price: $7.67 |
| 13 |
532136970 |
Dash Panel, RH Price: $13.87 |
| 13 |
99-7599 |
BOLT Price: $3.17 |
| 14 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 This part replaces 817490612. Price: $3.99 |
| 14 |
99-7525 |
STUD Price: $7.03 |
| 15 |
532142122 |
Plate, Dash Price: $64.99 |
| 15 |
99-7526 |
NUT Price: $1.29 |
| 16 |
532104805 |
Dash, Lower Price: $34.49 |
| 16 |
99-7527 |
WASHER-SPRING Price: $1.02 |
| 17 |
532144524 |
Hood Price: $3.33 |
| 18 |
874180512 |
Screw, Machine 5/16-18 UNC x 3/4 Price: $3.99 |
| 19 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.02 |
| 20 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873510500. Price: $2.69 |
| 21 |
874760620 |
Bolt Fin Hex 3/8-16 UNC x 1-1/4 This part replaces 874780620. Price: $3.99 |
| 24 |
532124130 |
Support, Dash Price: $12.22 |
| 28 |
532131681 |
Grille Price: $3.33 |
| 30 |
532144523 |
Fender Price: $313.99 |
| 31 |
532137113 |
Bracket Fender Price: $5.99 |
| 32 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 This part replaces 817490612. Price: $3.99 |
| 33 |
532124888 |
Footrest, LH Price: $3.33 |
| 34 |
532124889 |
Footrest, RH Price: $3.33 |
| 35 |
872110606 |
Bolt, Carriage 3/8-16 x 3/4 Price: $2.99 |
| 36 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 37 |
532133671 |
Pad, Footrest Price: $7.99 |
| 38 |
532124978 |
Strap Pnt Grille Price: $3.33 |
| 40 |
532105531 |
Nut, Push, Nylon Price: $2.99 |
| 41 |
532106784 |
Strap Assembly, Hinge, Rear Price: $82.19 |
| 42 |
532104618 |
Strap Assembly, Hinge, Front Price: $82.19 |
| 43 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 873510400. Price: $2.69 |
| 44 |
532109808 |
Latch, Chute Price: $2.69 |
| 45 |
871191008 |
Screw, Pan Hd. #10-24 UNC This part replaces 874191008. Price: $3.99 |
| 46 |
810071000 |
Washer, Lock #10 Price: $2.99 |
| 47 |
532002029 |
NUT.WELD.#10-24 This part replaces 532125004. Price: $2.69 |
| 48 |
532007605 |
BOLT This part replaces 532123481. Price: $3.99 |
| 49 |
873680400 |
Nut, Crownlock 1/4-20 UNC Price: $2.69 |
| 50 |
532140675 |
Strap, Fender Price: $3.99 |
| 53 |
532144526 |
Side Panel, RH Price: $3.33 |
| 54 |
532144525 |
Side Panel, LH Price: $3.33 |
| 55 |
734115201 |
WASHER - M6 This part replaces 819091216. Price: $1.99 |
| 56 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 57 |
532007206 |
Spacer, Split #10 x 3/4 Price: $3.99 |
| 58 |
734114601 |
WASHER This part replaces 819070818. Price: $0.99 |
| 59 |
873271000 |
NUT This part replaces 873731000. Price: $2.99 |
| 60 |
874981024 |
SCREW.PAN.HEAD This part replaces 874981020. Price: $5.99 |
| 66 |
532146525 |
KNOB BLK 1/2 NYLON This part replaces 532123198. Price: $3.99 |
| 71 |
532124392 |
Beze. Asem. This part replaces 532124939. Price: $103.99 |
| 72 |
532106395 |
Lens Headlight Bar Clear Price: $55.81 |
| 73 |
817211010 |
Screw Hex Whd Tap #10-16 x 5/8 Price: Call Us |
| 74 |
532140181 |
Plate, Battery Support Price: $3.68 |
| 75 |
532104755 |
Fastener "j" (Use #10 Screw) Price: $2.38 |
| 76 |
539976934 |
HCS.5/16-18X3/4 This part replaces 817490512. Price: $1.99 |
| 77 |
734117201 |
WASHER This part replaces 819131210. Price: $1.99 |
| 78 |
532132644 |
Bracket Grille Galv Price: $2.42 |
| 79 |
874760412 |
Bolt Hex Hd 1/4-20 unc x 3/4 This part replaces 817190412. Price: $3.99 |
| 80 |
819091016 |
Washer 9/32 x 5/8 x 16 Ga. Price: $2.99 |
| 85 |
874760532 |
Bolt, Hex, Fin. 5/16-18 UNC x 2 Price: $2.99 |
| 86 |
532121236 |
Spacer, Split Price: $2.38 |
| 87 |
873800500 |
Nut,Lock, Hex w/Ins. 5/16-18 Price: $2.69 |
| 92 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 94 |
874780616 |
Bolt, Hex, Fin. 3/8-16 UNC x 3/4 Price: $3.99 |
| 95 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 96 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 101 |
532126471 |
Clip, Insulator Price: $2.99 |
| 102 |
532002751 |
Clip Line Fuel 13/32 Mtg Hole This part replaces 532124996. Price: $2.42 |
| 103 |
532139886 |
Pivot Bracket Assembly, Rear, LH Price: $5.99 |
| 104 |
532139887 |
Pivot Bracket Assembly, Rear, RH Price: $5.99 |
| 105 |
872110608 |
Bolt, Carriage 3/8-16 x 1 Gr. 5 This part replaces 872140608. Price: $3.99 |
| 110 |
532009151 |
SNAP BUSHING T This part replaces 532110436. Price: $2.99 |
| 111 |
532142992 |
Stop Over Center 44" 20/23" T Price: $3.99 |
| 112 |
872240608 |
Bolt Carr 3/8-16 x 1.00 Price: $2.99 |
