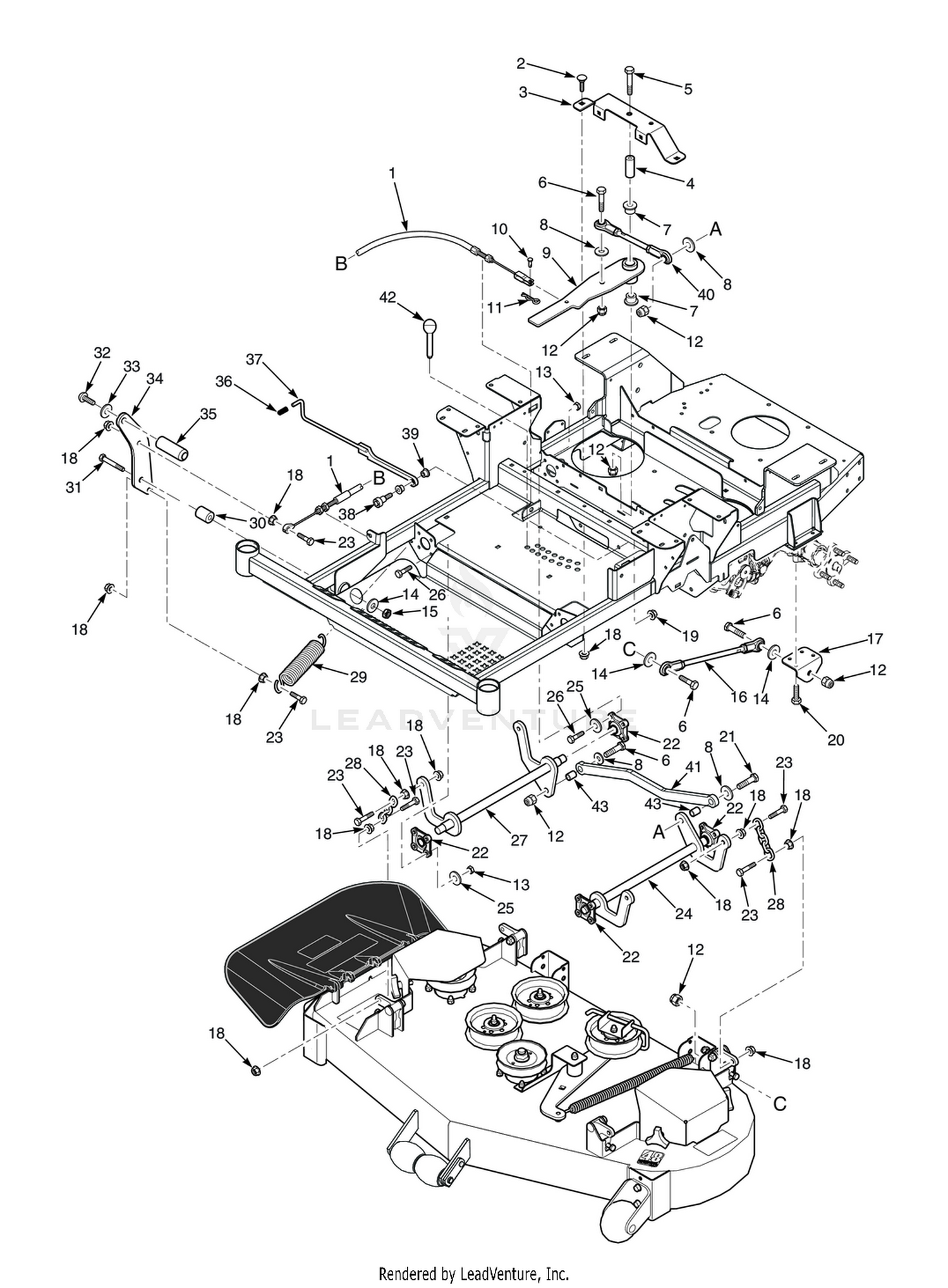

| Ref | Part Number | Description |
|---|
| 1 |
483341 |
Cable, Deck Lift Price: Call Us |
| 2 |
04003-31 |
Bolt, Carriage 3/8-16 x 3/4" Price: Call Us |
| 3 |
424476 |
Support, Idler Arm Price: Call Us |
| 4 |
43710 |
Spacer, Deck Lift Pivot Price: Call Us |
| 5 |
04001-90 |
Bolt, Hex Head, 1/2-13 x 3-1/4" Price: Call Us |
| 6 |
04001-72 |
Hex Head Bolt, 1/2-13 x 2" Price: Call Us |
| 7 |
483453-03 |
Bearing, Plastic Price: Call Us |
| 8 |
04040-07 |
Flatwasher, 1/2 - .531 x 1.062 x .095 Price: Call Us |
| 9 |
462215 |
DECKLIFT BELLCRANK ASSY, SFZ Price: Call Us |
| 10 |
04064-17 |
Clevis Pin, 5/16 x 3/4" Price: Call Us |
| 11 |
04062-01 |
COTTER PIN, HAIR - 0.94 X 1.62 Price: Call Us |
| 12 |
04021-07 |
HEX LOCKNUT, ELASTIC STOP, 1/2-13 Price: Call Us |
| 13 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 14 |
04040-13 |
Flat Washer, 1/2 (.562 x 1.375 x .109) Price: Call Us |
| 15 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 16 |
483332 |
Linkage, Push Arm Price: Call Us |
| 17 |
424489 |
Bracket, Push Arm Link Price: Call Us |
| 18 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 19 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 20 |
04001-49 |
Bolt, Hex Head 5/16-18 x 3.00" Price: Call Us |
| 21 |
04001-74 |
Bolt, Hex Head 1/2-13 x 3" Price: Call Us |
| 22 |
483334 |
Bearing, Deck Lift - 48V & 52V Price: Call Us |
| 23 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 24 |
451868 |
Weldment, Deck Lift LH Price: Call Us |
| 25 |
04040-14 |
Flatwasher, 1/4" (.312 x .750 x .065") Price: Call Us |
| 26 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 27 |
451867 |
Weldment, Deck Lift RH Price: Call Us |
| 28 |
482628 |
Chain, Deck Lift Price: Call Us |
| 29 |
483374 |
Spring, Deck Lift Price: Call Us |
| 30 |
43710 |
Spacer, Deck Lift Pivot Price: Call Us |
| 31 |
04001-74 |
Bolt, Hex Head 1/2-13 x 3" Price: Call Us |
| 32 |
04108-04 |
Capscrew, 5/8-11 x 1-1/2" This part replaces 04105-01. Price: Call Us |
| 33 |
04030-07 |
Lockwasher, 5/8" Spring Price: Call Us |
| 34 |
424535 |
Pedal, Foot Bracket Price: Call Us |
| 35 |
424504 |
Foot Pedal, Height Adjustment Price: Call Us |
| 36 |
483492 |
Grip, Deck Latch Price: Call Us |
| 37 |
491254 |
Weldment, Deck Latch Price: Call Us |
| 38 |
04009-06 |
Bolt, Shoulder 1/2 x 1/2" Price: Call Us |
| 39 |
483453-10 |
Bearing Price: Call Us |
| 40 |
483328 |
Linkage Assembly, Deck Lift Price: Call Us |
| 41 |
426579 |
Mounting Bracket, Fuel Tank Front Price: Call Us |
| 42 |
483498 |
Pin, Height Adjuster Price: Call Us |
