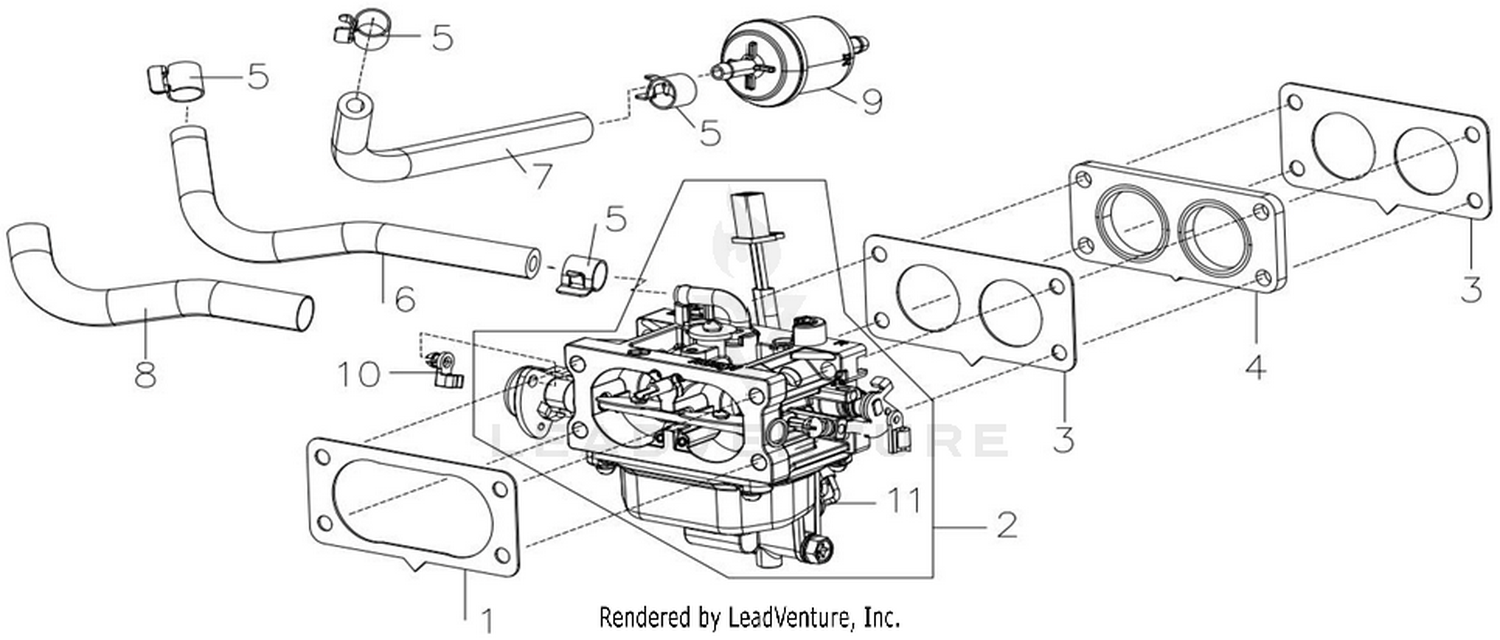

| Ref | Part Number | Description |
|---|
| 1 |
21571800 |
GASKET, CARBURETOR Price: $2.95 |
| 1 |
94-3622 |
HOOD ASM Price: $1,217.09 |
| 2 |
21571200 |
CARBURETOR Price: $120.95 |
| 2 |
603000867 |
LOCKING CAP, NUT Price: $3.99 |
| 2 |
62-7400 |
DECAL Price: $24.54 |
| 3 |
21110509 |
CARBURETOR GASKET Price: $3.95 |
| 3 |
32128-20 |
NUT-HF Price: $0.99 |
| 3 |
586697101 |
ASSY, ROTOR, BRAKE, REAR, GR This part replaces 603000926. Price: $219.99 |
| 4 |
21110510 |
HEAT INSLTNG PAD FOR CARBURTOR Price: $6.95 |
| 4 |
3230-27 |
SCREW-CARR Price: $0.75 |
| 4 |
603001072 |
GEARCASE, LOWER, MACHINED Price: $499.99 |
| 5 |
21110589 |
CLIP COMBINATION Price: $2.45 |
| 5 |
603001116 |
AXLE, RH Price: $329.99 |
| 5 |
76-2260 |
PAD-FOOTREST Price: $8.40 |
| 6 |
21110590 |
OIL TUBE Price: $13.45 |
| 6 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 6 |
603001117 |
AXLE, LH Price: $329.99 |
| 7 |
21110591 |
OIL TUBE Price: $21.95 |
| 7 |
603001590 |
WASHER, COUNTERBORED 51 X 30 Price: $89.99 |
| 7 |
76-2200-03 |
FOOTREST-PEDAL, TRACTION This part replaces 76-2200. Price: $42.73 |
| 8 |
21110592 |
TUBE, SHEATH Price: $2.45 |
| 8 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 8 |
603001591 |
WASHER, BELLEVLE, 1.063 X .043 Price: $6.99 |
| 9 |
21110575 |
FILTER, FUEL Price: $12.45 |
| 9 |
603001592 |
WASHER, BELLEVILLE, 49 X 4 Price: $12.99 |
| 9 |
93-6779-03 |
FOOTREST-RH This part replaces 93-6779. Price: $85.60 |
| 10 |
21110521 |
LOCKER OF CHOKE VALVE PULL ROB Price: $3.95 |
| 10 |
32128-33 |
NUT-HF Price: $0.25 |
| 10 |
603001593 |
NUT, HEX, M20 X 1.5, MODIFIED Price: $14.99 |
| 11 |
603001621 |
SCREW, M10 X 25 Price: $27.99 |
| 11 |
93-6778-01 |
FENDER-RH This part replaces 93-6778. Price: $334.53 |
| 12 |
32128-44 |
NUT Price: $2.69 |
| 12 |
603001622 |
SCREW, HEX FLANGE, M8 X 35 Price: $6.99 |
| 13 |
603001623 |
PLUG,3/8-16, HEX FLANGE Price: $12.99 |
| 14 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 14 |
603001624 |
WASHER, .625 X .382 X .60 Price: $5.99 |
| 15 |
32104-82 |
SCREW-HHF Price: $0.95 |
| 15 |
603001628 |
PLUG, SQUARE SKIT, 1/12-14,PTF Price: $27.99 |
| 16 |
603001629 |
BELLOWS, VENT, UPPER HOUSING Price: $84.99 |
| 16 |
93-6858-01 |
SHIELD-FRONT, RH This part replaces 93-6858. Price: $23.11 |
| 17 |
603001630 |
CLAMP, HOSE, DW-9.5 Price: $29.99 |
| 17 |
93-6780-03 |
HINGE ASM This part replaces 93-6780. Price: $51.74 |
| 18 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 18 |
603001632 |
SCREW, HEX FL, M12 X 1.75 X 30 Price: $9.99 |
| 19 |
256-320 |
BUSHING-NYLON Price: $7.44 |
| 20 |
93-6742-03 |
BRACKET-HOOD, PIVOT This part replaces 93-6742. Price: $12.30 |
| 21 |
3217-6 |
NUT-HEX Price: $1.19 |
| 22 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 23 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 24 |
83-8510-01 |
BRACKET-FENDER, LEFT This part replaces 83-8510. Price: $24.64 |
| 25 |
83-9800-01 |
GRASS SHIELD-FRONT, LH This part replaces 83-9800. Price: $28.36 |
| 26 |
32148-8 |
NUT-CLINCH Price: $2.31 |
| 27 |
93-6776-01 |
FENDER-LH This part replaces 93-6776. Price: $317.84 |
| 28 |
93-7267 |
DECAL-BRAKE Price: $6.37 |
| 29 |
83-9710-03 |
FOOTREST-PEDAL, TRACTION This part replaces 83-9710. Price: $78.54 |
| 30 |
83-9840 |
PAD-FOOT Price: $60.60 |
| 31 |
322-3 |
SCREW-HH Price: $0.79 |
| 32 |
93-6927 |
DISCONTINUED Price: Call Us |
| 33 |
3234-17 |
SCREW-HHF Price: $0.72 |
