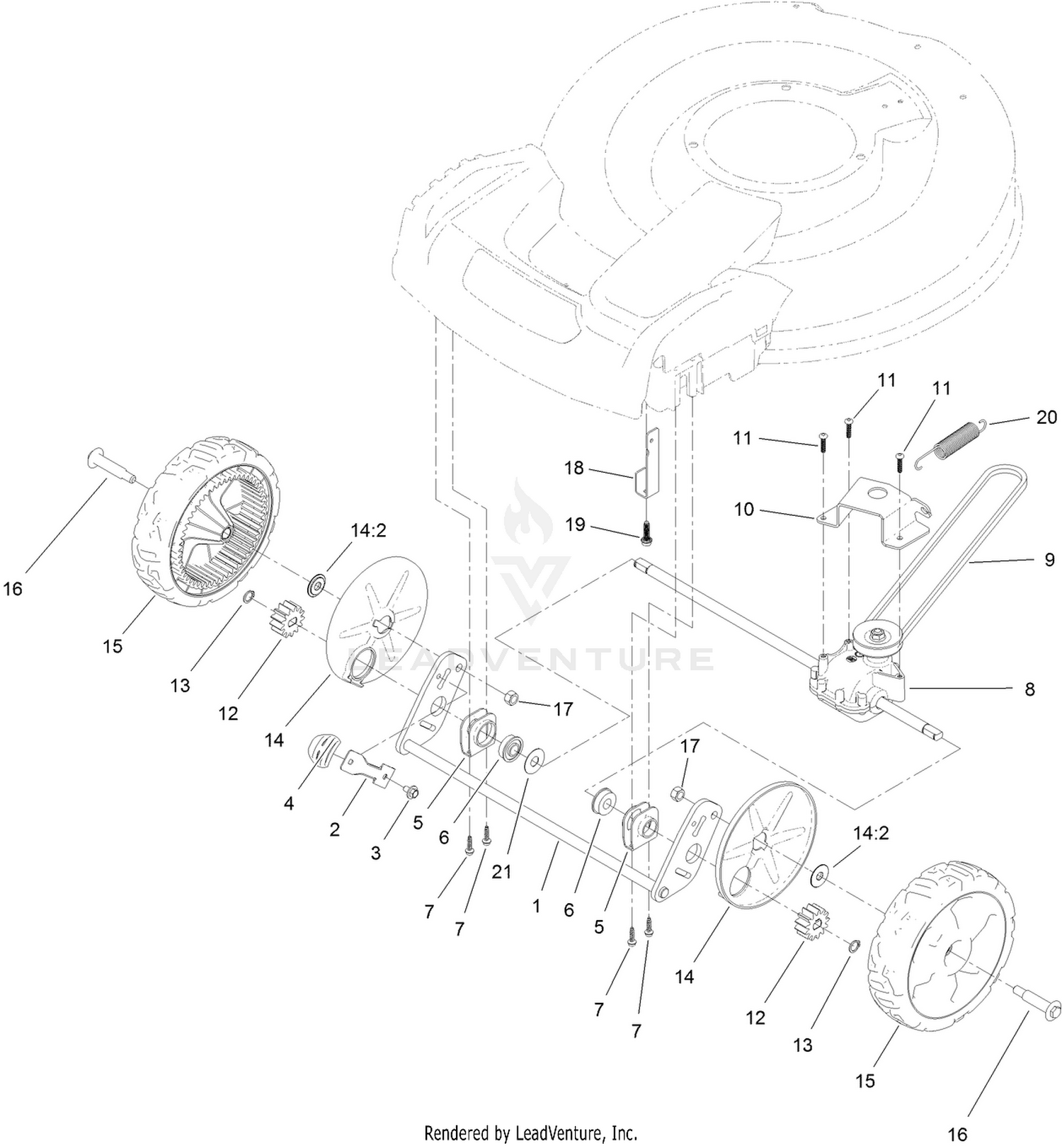

| Ref | Part Number | Description |
|---|
| 1 |
131-0833-03 |
AXLE-FRONT Price: $36.99 |
| 2 |
131-0842 |
ARM-SPRING Price: $11.99 |
| 3 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 4 |
105-3042 |
KNOB-LEVER, HOC Price: $4.09 |
| 5 |
138-3234 |
RETAINER-BEARING Price: $3.09 |
| 6 |
104-8699 |
BEARING-BALL Price: $4.39 |
| 7 |
139-1690 |
SCREW-PLASTIC, HWH Price: $0.29 |
| 8 |
137-4824 |
TRANSMISSION-FWD LB, 2BAIL (6:1) This part replaces 131-0845. Price: $97.99 |
| 9 |
125-1011 |
BELT-V Price: $12.99 |
| 10 |
114-7978-03 |
BRACKET-TRANSMISSION Price: $10.99 |
| 11 |
108-7476 |
SCREW-PLASTITE Price: $0.79 |
| 12 |
131-0896 |
GEAR-PINION, 13T Price: $6.49 |
| 13 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 14 |
131-4513 |
WHEEL COVER ASM Price: $9.99 |
| 15 |
130-6711 |
WHEEL ASM, 8IN Price: $27.99 |
| 16 |
92-1057 |
BOLT-SHOULDER Price: $3.19 |
| 17 |
603773 |
LOCKNUT This part replaces 125-5069. Price: $2.09 |
| 18 |
131-0877-03 |
BRACKET-ANCHOR, CABLE Price: $5.09 |
| 19 |
130-6658 |
SCREW-FLANGE, PLASTIC Price: $0.89 |
| 20 |
131-4560 |
SPRING-EXTENSION Price: $7.29 |
