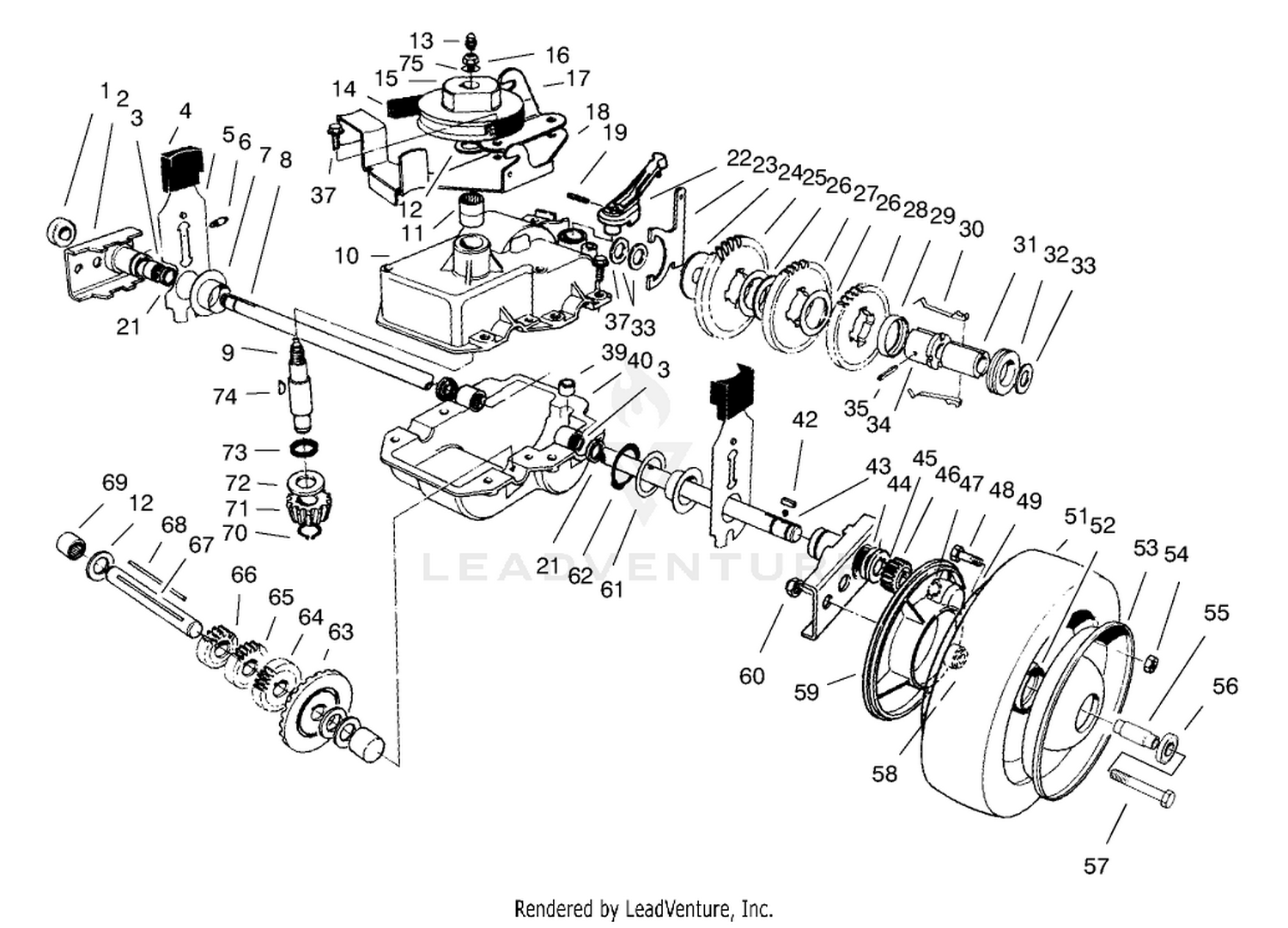

| Ref | Part Number | Description |
|---|
| 1 |
52-2450 |
BEARING-WHEEL Price: $13.12 |
| 2 |
74-1851 |
Pivot Arm Assembly (Incl. Ref. #1, 3, 6 21) Price: $62.11 |
| 3 |
117-3500 |
BEARING-CAGED NEEDLE ROLLER This part replaces 48-2060. Price: $4.69 |
| 4 |
25-7740 |
KNOB-ARM Price: $3.38 |
| 5 |
66-7561 |
REAR SPRING ARM ASM Price: $10.17 |
| 6 |
92-6316 |
ZERK Price: $1.12 |
| 7 |
48-2170 |
CAP-END Price: $6.69 |
| 8 |
74-1890 |
SHAFT-OUTPUT Price: $78.79 |
| 9 |
13-5149 |
Shaft-Input (Incl Ref. #13) Price: $47.81 |
| 10 |
13-9739 |
Upper Case Assembly (Incl. Ref. #11 73) Price: $53.99 |
| 11 |
47-7270 |
BEARING-NEEDLE Price: $20.17 |
| 12 |
36-4792 |
WASHER-THRUST Price: $0.81 |
| 13 |
302-63 |
FITTING-GREASE, ZERK Price: $2.02 |
| 14 |
36-8070 |
V-BELT Price: $16.41 |
| 15 |
39-6740 |
PULLEY Price: $37.08 |
| 16 |
3296-5 |
NUT-HEX Price: $3.09 |
| 17 |
74-1750-03 |
BRACKET-ENGAGE, TRACTION This part replaces 74-1750. Price: $8.49 |
| 18 |
49-8461-03 |
BRACKET-GUIDE, BELT This part replaces 49-8461. Price: $23.37 |
| 19 |
32121-99 |
PIN-COIL Price: $0.80 |
| 21 |
47-6730 |
SEAL-OIL Price: $7.88 |
| 22 |
74-1960 |
LEVER-SHIFT Price: $8.55 |
| 23 |
60-8870 |
YOKE-SHIFT Price: $16.30 |
| 24 |
29-9690 |
WASHER Price: $8.10 |
| 25 |
46-3560 |
GEAR Price: $51.40 |
| 26 |
36-4770 |
WASHER Price: $3.50 |
| 27 |
29-9271 |
GEAR-42T Price: $58.12 |
| 28 |
42-4740 |
GEAR-38T Price: $54.57 |
| 29 |
55-8020 |
RETAINER-KEY Price: $5.69 |
| 30 |
29-9330 |
KEY-SHIFT Price: $18.44 |
| 31 |
39-6720 |
SLEEVE Price: $10.49 |
| 32 |
29-9340 |
COLLAR-SHIFT Price: $26.11 |
| 33 |
36-4780 |
WASHER-PLAIN Price: $6.59 |
| 34 |
55-8010 |
SLEEVE-GEAR Price: $13.21 |
| 35 |
3285-19 |
PIN-GROOVE Price: $1.79 |
| 37 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 39 |
29-9570 |
BUSHING-YOKE Price: $7.60 |
| 40 |
119-7863 |
GEARCASE-LOWER This part replaces 74-1920. Price: $32.27 |
| 42 |
612066 |
KEY Price: $1.74 |
| 43 |
39-9650 |
SPRING-COMPRESSION Price: $2.01 |
| 44 |
49-7700 |
WASHER-THRUST, OUTER Price: $1.49 |
| 45 |
62-3830 |
WASHER-THRUST, OUTER Price: $2.83 |
| 46 |
39-9160 |
GEAR-PINION Price: $9.84 |
| 47 |
65-2720 |
RING-RETAINING,CLIP This part replaces 32151-68. Price: $0.99 |
| 48 |
321-2 |
SCREW-HH Price: $2.79 |
| 49 |
121-1378-06 |
WHEEL HALF AND GEAR ASM This part replaces 92-4957. Price: $21.88 |
| 51 |
53-7740 |
TIRE Price: $37.99 |
| 52 |
52-2410 |
HUB-BEARING Price: $21.26 |
| 53 |
121-1365-06 |
RIM-HALF, WHEEL This part replaces 53-7780. Price: $14.21 |
| 54 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 55 |
52-2440 |
SPACER-BEARING Price: $5.95 |
| 56 |
52-2450 |
BEARING-WHEEL Price: $13.12 |
| 57 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 58 |
74-1650 |
SPACER-COVER, WHEEL Price: $5.98 |
| 59 |
74-1640 |
COVER-WHEEL Price: $9.47 |
| 60 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 61 |
74-1810 |
WASHER Price: $0.39 |
| 62 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 63 |
74-1760 |
GEAR-BEVEL Price: $25.87 |
| 64 |
39-6650 |
GEAR-18T Price: $8.76 |
| 65 |
46-3550 |
GEAR-14T Price: $14.52 |
| 66 |
46-3540 |
GEAR-12T Price: $8.65 |
| 67 |
53-7950 |
SHAFT-INTERMEDIATE Price: $34.83 |
| 68 |
39-7842 |
KEY Price: $1.65 |
| 69 |
252-103 |
BEARING-NEEDLE, CLOSED Price: $16.30 |
| 70 |
32151-57 |
RING-RETAINING Price: $2.37 |
| 71 |
39-6660 |
PINION-BEVEL Price: $25.89 |
| 72 |
47-2910 |
WASHER-THRUST Price: $12.99 |
| 73 |
47-7260 |
SEAL Price: $5.36 |
| 74 |
3257-1 |
KEY-WOODRUFF Price: $1.79 |
| 75 |
3256-45 |
WASHER-FLAT Price: $0.28 |
