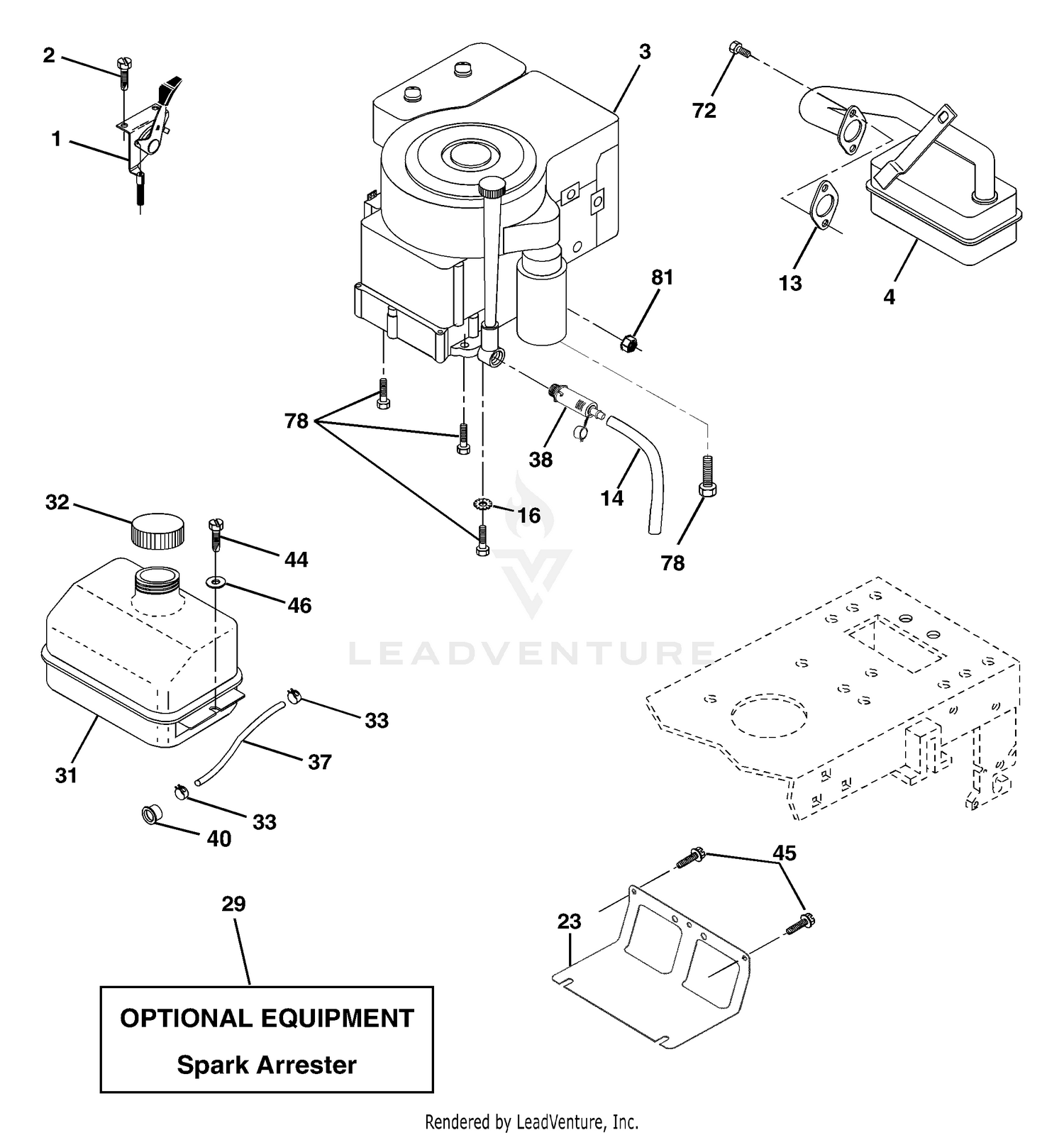

| Ref | Part Number | Description |
|---|
| 1 |
170551 |
Control Th/ch Flag Price: Call Us |
| 2 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 4 |
137352 |
Muffler Exhaust B&S Price: Call Us |
| 010 |
112-7026 |
WHEEL BEARING CASE ASM This part replaces 98-9480. Price: $196.85 |
| 13 |
165291 |
Gasket Eng 1 313 Id Tin Plated Price: Call Us |
| 14 |
148456 |
Tube Drain Oil Easy Price: Call Us |
| 16 |
11050600 |
Washer Lock Ext Tooth 3/8 Price: Call Us |
| 020 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 23 |
169837 |
Shield BRN/DBR Guard Price: Call Us |
| 29 |
137180 |
Kit Spark Arrestor (Flat Scrn) Price: Call Us |
| 030 |
131-6554 |
GASKET-CASE, BEARING This part replaces 98-9634. Price: $7.12 |
| 31 |
109202X |
Tank Fuel Front Price: Call Us |
| 32 |
140527 |
Cap Asm Fuel Price: Call Us |
| 33 |
123487X |
Clamp Hose Price: Call Us |
| 37 |
137040 |
Line Fuel 20" Price: Call Us |
| 38 |
181654 |
Plug Drain Oil Price: Call Us |
| 040 |
112-7046 |
COVER-CASE, BEARING This part replaces 98-9487. Price: $66.00 |
| 40 |
124028X |
Bushing Snap Nyl Blk Fuel Line Price: Call Us |
| 44 |
17670412 |
Screw Thdrol 1/4-20 x 3/4 Price: Call Us |
| 45 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 46 |
19091416 |
Washer 9/32 X 7/8 X 16 Ga Price: Call Us |
| 050 |
112-0180 |
SEAL-OIL This part replaces 98-9483. Price: $58.48 |
| 060 |
98-9635 |
GASKET-COVER, BEARING CASE Price: $12.61 |
| 070 |
98-9352 |
BOLT Price: $0.80 |
| 72 |
71070512 |
Screw Hexcap 5/16-18 x 3/4 Price: Call Us |
| 78 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 080 |
98-7568 |
BOLT Price: $0.84 |
| 090 |
115-4106 |
MAIN BEARING CASE ASM This part replaces 98-9606. Price: $189.84 |
| 100 |
98-9485 |
BOLT-CASE, BEARING Price: $22.80 |
