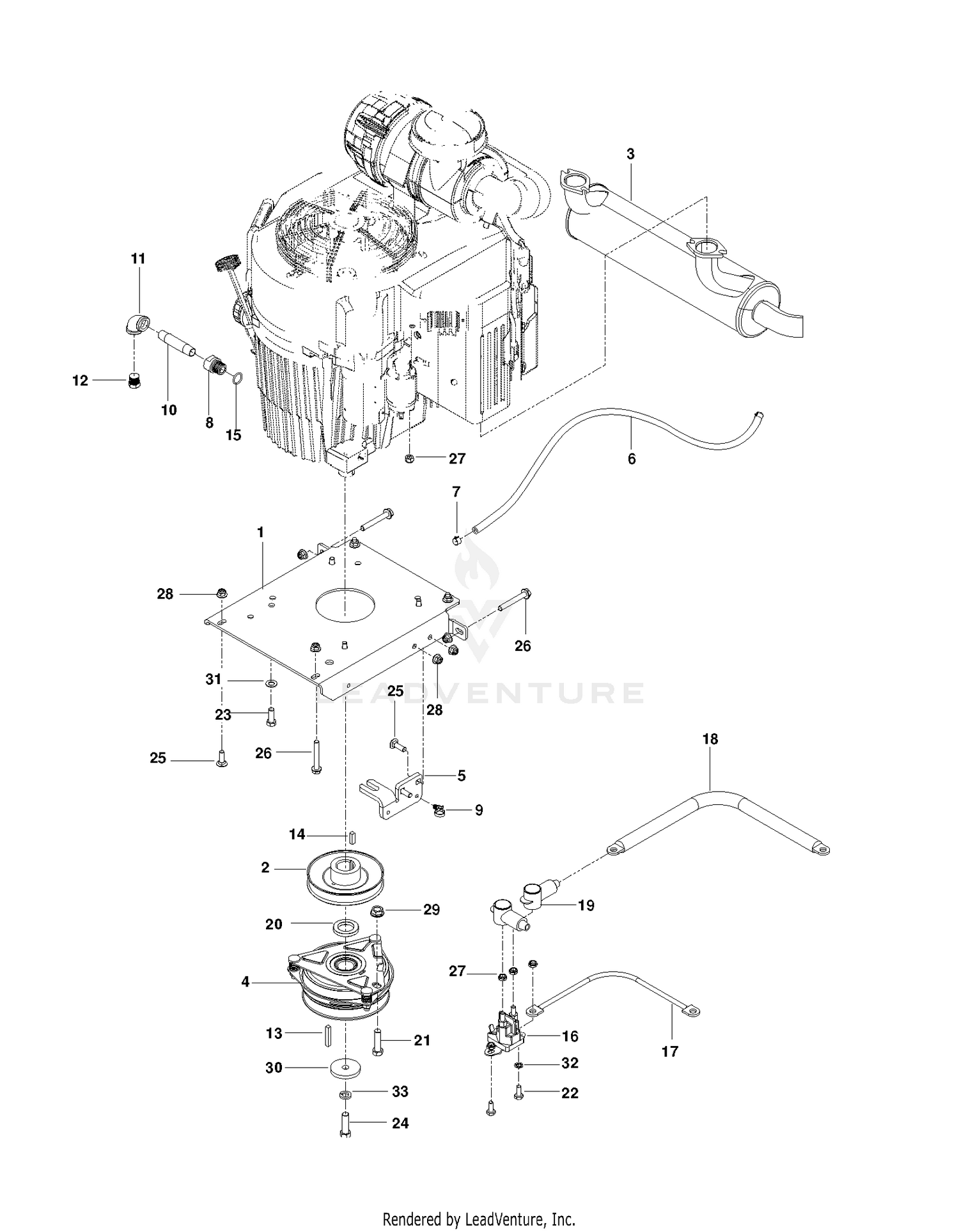

| Ref | Part Number | Description |
|---|
| 1 |
510004602 |
PLATE.ENGINE.BLACK Price: $99.99 |
| 2 |
510019801 |
PULLEY, ENGINE Price: $49.99 |
| 3 |
525750201 |
MUFFLER.26HP.KAW.FX651V-730V Price: $199.99 |
| 4 |
539113437 |
CLUTCH, 150 FT/LBS Price: $399.99 |
| 5 |
597180803 |
Stop This part replaces 522676702. Price: $11.99 |
| 6 |
587044818 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 539105526. Price: $8.99 |
| 7 |
539912222 |
HOSE CLAMP Price: $2.99 |
| 8 |
539119680 |
ADAPTER, OIL DRAIN Price: $17.99 |
| 9 |
505280001 |
TIE WRAP, 8-3/8", W/CLIP Price: $2.99 |
| 10 |
539118911 |
PIPE NIPPLE 3/8 X 3 Price: $5.99 |
| 11 |
76-0860 |
SHAFT-COUPLING Price: $688.74 |
| 12 |
522837001 |
PLUG, DRAIN 3/8 NPTF Price: $2.99 |
| 12 |
76-0850 |
BEARING-THRUST Price: $30.56 |
| 13 |
539910210 |
KEY 1/4 SQ X 2 Price: $4.99 |
| 13 |
76-0960 |
LINK-DRIVE Price: $345.26 |
| 14 |
539105308 |
KEY 1/4 SQ X 1.0 Price: $3.99 |
| 14 |
94-3662 |
SCREW-CAP, HH Price: $13.47 |
| 15 |
539109618 |
O-RING Price: $3.99 |
| 16 |
539101714 |
SOLENOID Price: $22.99 |
| 17 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 17 |
539105409 |
GROUND WIRE (KAW) Price: $6.99 |
| 18 |
539102757 |
CABLE POSITIVE Price: $7.99 |
| 18 |
92-9754 |
PLATE-WEAR This part replaces 76-0870. Price: $359.13 |
| 19 |
539102759 |
INSULATOR Price: $3.99 |
| 20 |
525313902 |
Spacers This part replaces 525313901. Price: $14.99 |
| 21 |
596436601 |
Screws This part replaces 539104867. Price: $1.99 |
| 22 |
596582501 |
Bolts This part replaces 539990072. Price: $2.99 |
| 22 |
76-0840 |
MANIFOLD Price: $790.28 |
| 23 |
596564401 |
Bolts This part replaces 539990563. Price: $3.99 |
| 24 |
539100141 |
HCS 7/16F X 1 1/2 Price: $7.99 |
| 24 |
76-0890 |
END COVER ASM Price: $981.97 |
| 25 |
595901501 |
Bolts This part replaces 539990208. Price: $3.99 |
| 26 |
574233802 |
Hardware This part replaces 574233801. Price: $2.99 |
| 27 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 28 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 29 |
596577901 |
Nuts This part replaces 539102582. Price: $2.99 |
| 30 |
539125626 |
BLADE WASHER Price: $6.99 |
| 31 |
539102593 |
WASHER, 3/8 DISC SPRING SPEC Price: $2.99 |
| 32 |
539990053 |
WASHER 1/4 INT TOOTH Price: $2.99 |
| 33 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
