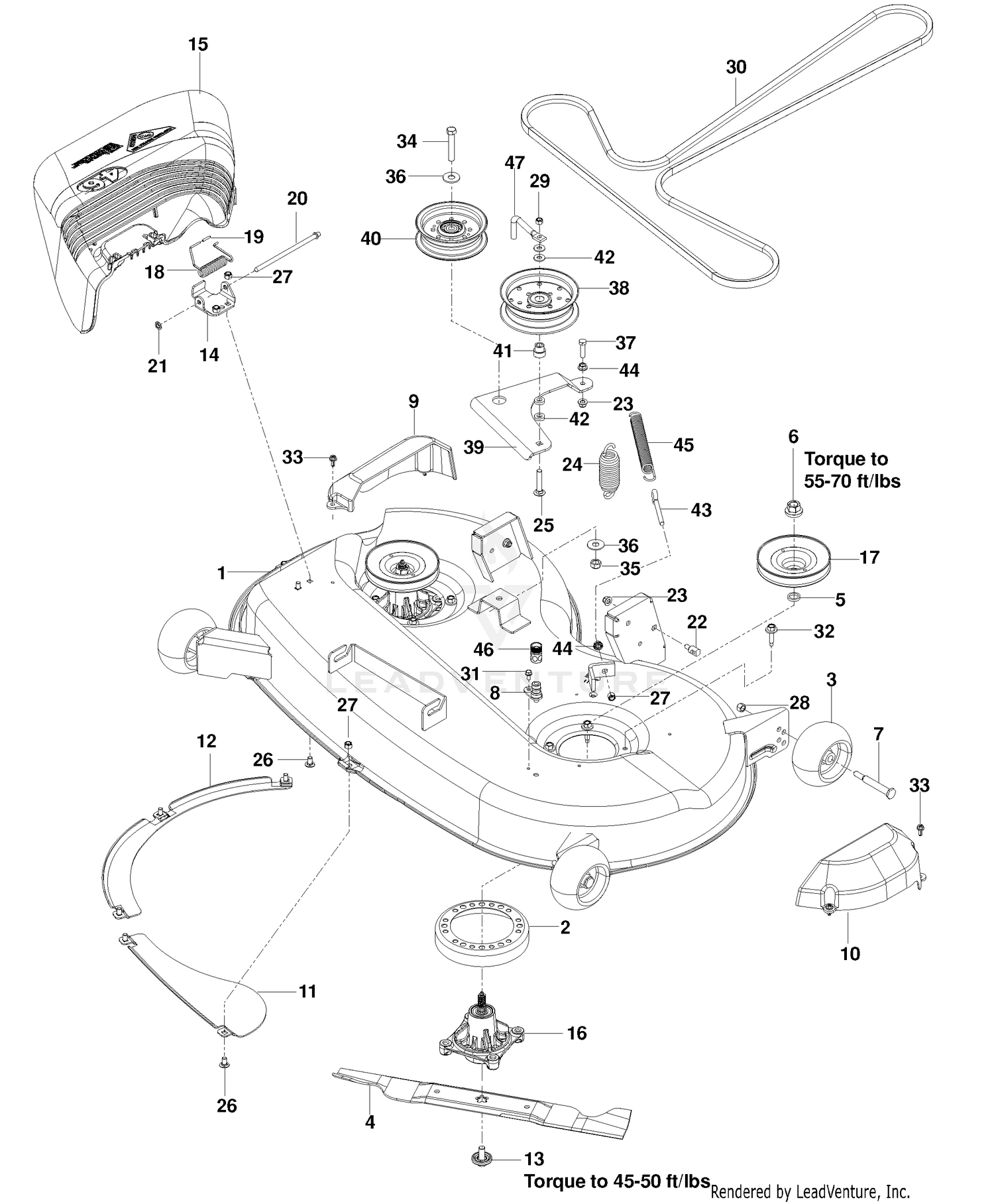

| Ref | Part Number | Description |
|---|
| 1 |
522745301 |
DECK W/DECALS - SZ44 Price: $952.99 |
| 1 |
67-3990 |
LEVER ASSEMBLY Price: $41.40 |
| 2 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 539107518. Price: $6.99 |
| 2 |
67-4000 |
DISCONTINUED Price: Call Us |
| 3 |
532133957 |
WHEEL GAGE DONUT This part replaces 539107610. Price: $11.99 |
| 3 |
67-4270 |
BOLT Price: $0.89 |
| 4 |
67-4130 |
GOVERNOR COVER Price: $102.33 |
| 5 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 539107520. Price: $3.99 |
| 5 |
67-4160 |
GASKET Price: $4.78 |
| 6 |
42-8830 |
O-RING Price: $2.96 |
| 6 |
596134801 |
Nuts This part replaces 539107590. Price: $1.00 |
| 7 |
596434404 |
Bolts This part replaces 539107608. Price: $4.99 |
| 7 |
75-4980 |
GOVERNOR SPRING LEVER Price: $8.05 |
| 8 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 8 |
67-3260 |
WASHER Price: $1.58 |
| 9 |
42-9640 |
JAM NUT Price: $4.69 |
| 9 |
532405506 |
COVER.MANDREL.RH.46" Price: $19.99 |
| 10 |
42-8830 |
O-RING Price: $2.96 |
| 10 |
532405507 |
COVER.MANDREL.LH.46" Price: $19.99 |
| 11 |
531170601 |
SERVICE KIT BAFFLE CENT This part replaces 532403149. Price: $9.99 |
| 11 |
67-4140 |
LEVER ASSEMBLY Price: $76.30 |
| 12 |
42-9430 |
SCREW-HH Price: $0.30 |
| 12 |
531170701 |
SERVICE KIT BAFFLE FRONT This part replaces 532403150. Price: $11.99 |
| 13 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 13 |
67-4040 |
WEIGHT ASSEMBLY Price: $98.67 |
| 14 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 15 |
532405357 |
SHIELD.DEFLECTOR.MOWER.46"BLAC Price: $49.99 |
| 15 |
67-4010 |
STOPPER Price: $17.87 |
| 16 |
587125201 |
MANDREL.W/SPCR.BRG.SHRT.NONRVL This part replaces 539107515. Price: $49.99 |
| 16 |
67-4070 |
SLIDING SHAFT ASSEMBLY Price: $206.32 |
| 17 |
588586601 |
PULLEY.MANDREL.46" This part replaces 539113962. Price: $29.99 |
| 17 |
67-4280 |
DISCONTINUED Price: Call Us |
| 18 |
539107609 |
TORSION SPRING Price: $4.99 |
| 18 |
67-4060 |
LEVER Price: $145.19 |
| 19 |
532105304 |
CAP-SLEEVE LT This part replaces 539107627. Price: $3.99 |
| 19 |
67-4050 |
SHAFT Price: $30.29 |
| 20 |
595297001 |
Rods This part replaces 539110462. Price: $4.99 |
| 20 |
67-5040 |
DISCONTINUED Price: Call Us |
| 21 |
532110452 |
NUT PUSH M This part replaces 539107626. Price: $2.99 |
| 21 |
67-4090 |
LEVER Price: $52.49 |
| 22 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 22 |
70-8720 |
TIE ROD SPRING Price: $9.09 |
| 23 |
107-1581 |
TIE ROD ASM This part replaces 67-4030. Price: $82.44 |
| 23 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 24 |
107-1581 |
TIE ROD ASM This part replaces 67-4080. Price: $82.44 |
| 24 |
596482001 |
Springs This part replaces 539118762. Price: $6.99 |
| 25 |
596337801 |
Bolts This part replaces 539128101. Price: $4.99 |
| 25 |
75-4990 |
GOVERNOR SPRING Price: $7.67 |
| 26 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 26 |
67-4210 |
TORQUE SPRING CASE Price: $22.42 |
| 27 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 27 |
67-4230 |
STOPPER Price: $25.34 |
| 28 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 28 |
67-4190 |
DISCONTINUED Price: Call Us |
| 29 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 29 |
67-4220 |
DISCONTINUED Price: Call Us |
| 30 |
539117245 |
V-BELT Price: $54.99 |
| 30 |
67-4200 |
SPECIAL NUT Price: $5.71 |
| 31 |
539108461 |
BOLT 1/4-20 X 1/2 HWST Price: $2.99 |
| 31 |
67-4180 |
DISCONTINUED Price: Call Us |
| 32 |
43-2820 |
SEALING CAP Price: $11.21 |
| 32 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 539107630. Price: $3.99 |
| 33 |
42-9420 |
DISCONTINUED Price: Call Us |
| 33 |
532137729 |
SCREW.1/4-20X5/8 This part replaces 539107631. Price: $3.99 |
| 34 |
596435201 |
Bolts This part replaces 539104870. Price: $2.99 |
| 34 |
67-4290 |
NUT Price: $0.91 |
| 35 |
595901901 |
Nuts This part replaces 539119124. Price: $2.99 |
| 35 |
67-4120 |
PIN Price: $1.25 |
| 36 |
596437601 |
Washers This part replaces 539104864. Price: $2.99 |
| 37 |
42-8690 |
SEAL METAL MK99200001 Price: $3.26 |
| 37 |
539990627 |
HCS 5/16C X 1 1/4 Price: $3.99 |
| 38 |
42-8700 |
WIRE Price: $6.33 |
| 38 |
589766102 |
Pulleys This part replaces 539132728. Price: $27.99 |
| 39 |
574689002 |
ARM, IDLER BLK Price: $79.99 |
| 40 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH Price: $37.99 |
| 40 |
67-4150 |
STOP LEVER Price: $18.57 |
| 41 |
596790301 |
Bushings This part replaces 539112076. Price: $5.99 |
| 42 |
539109562 |
WASHER 3/8 X 3/4 X .187 TK Price: $3.99 |
| 43 |
596240801 |
GSPW Bolts This part replaces 539115574. Price: $3.99 |
| 44 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 45 |
596989801 |
Springs This part replaces 539120920. Price: $7.99 |
| 46 |
532416405 |
COUPLING.QUICK CONNECT Price: $8.99 |
