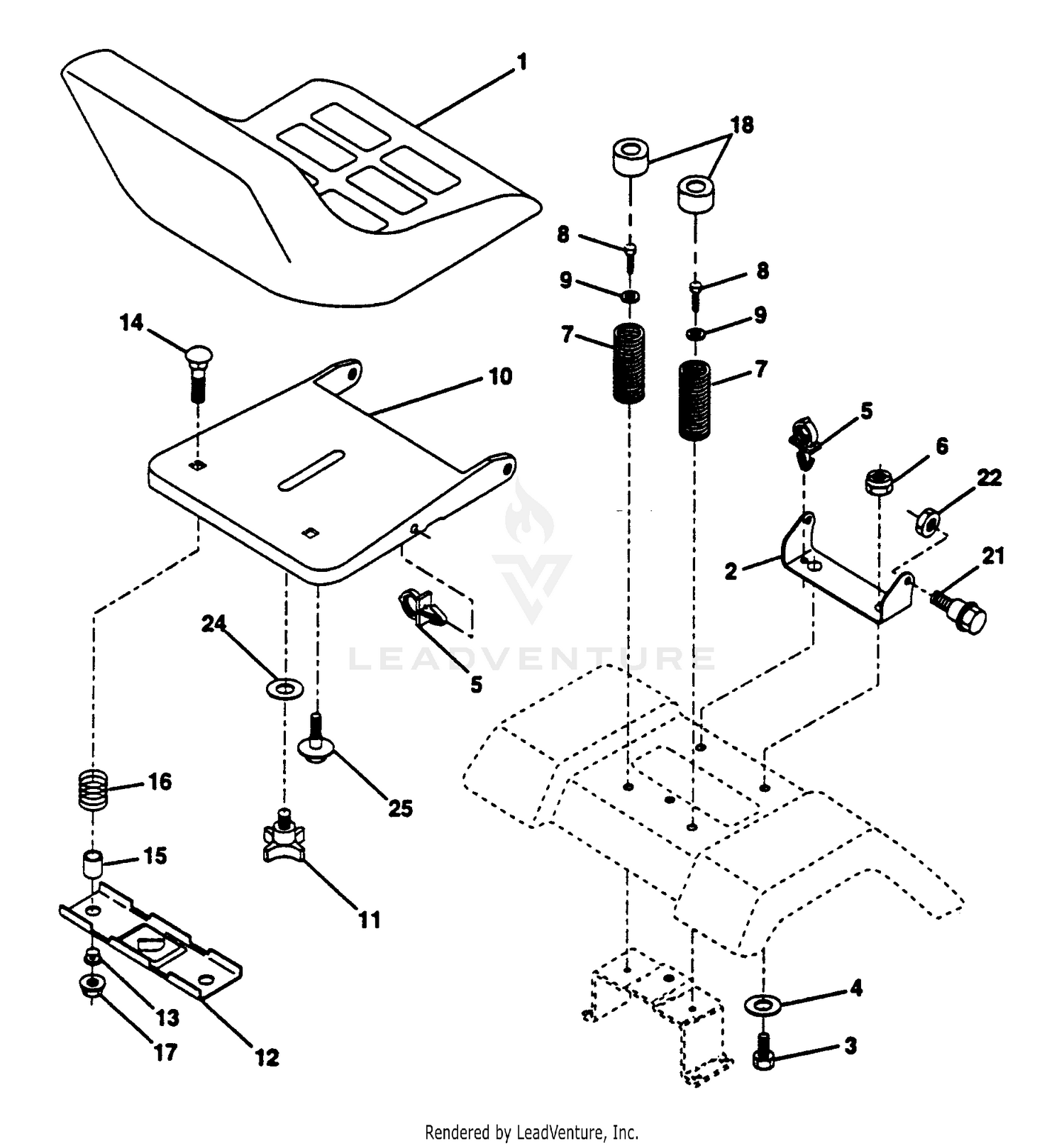

| Ref | Part Number | Description |
|---|
| 1 |
323-7 |
SCREW-HH Price: $0.65 |
| 1 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532127426. Price: $149.99 |
| 2 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
32146-20 |
NUT-HEX Price: $3.23 |
| 3 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 4 |
98-8172-03 |
SUPPORT-AXLE Price: $656.24 |
| 5 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
237-165 |
GROMMET Price: $15.70 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
32121-32 |
PIN-ROLL Price: $1.34 |
| 8 |
817000616 |
SCREW 3/8-16X1 This part replaces 817490616. Price: $5.99 |
| 9 |
140-6101 |
PIN ASM-AXLE PIVOT This part replaces 98-8173-03. Price: $42.42 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532140552. Price: $17.99 |
| 10 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 11 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT This part replaces 532120068. Price: $6.99 |
| 12 |
532121248 |
BUSHING Price: $4.99 |
| 12 |
99-8431 |
WASHER-THRUST Price: $4.63 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 13 |
99-8432 |
WASHER-THRUST Price: $4.21 |
| 14 |
872050411 |
Bolt Rdhd Sht Nk 1/4-20x1-3/8 Price: $3.99 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 16 |
532121250 |
SPRING Price: $3.99 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 18 |
532124238 |
CAP SPRING Price: $4.99 |
| 21 |
532139888 |
BOLT.SHOULDER.5/16-18 Price: $3.99 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 24 |
819171912 |
WASHER Price: $3.99 |
