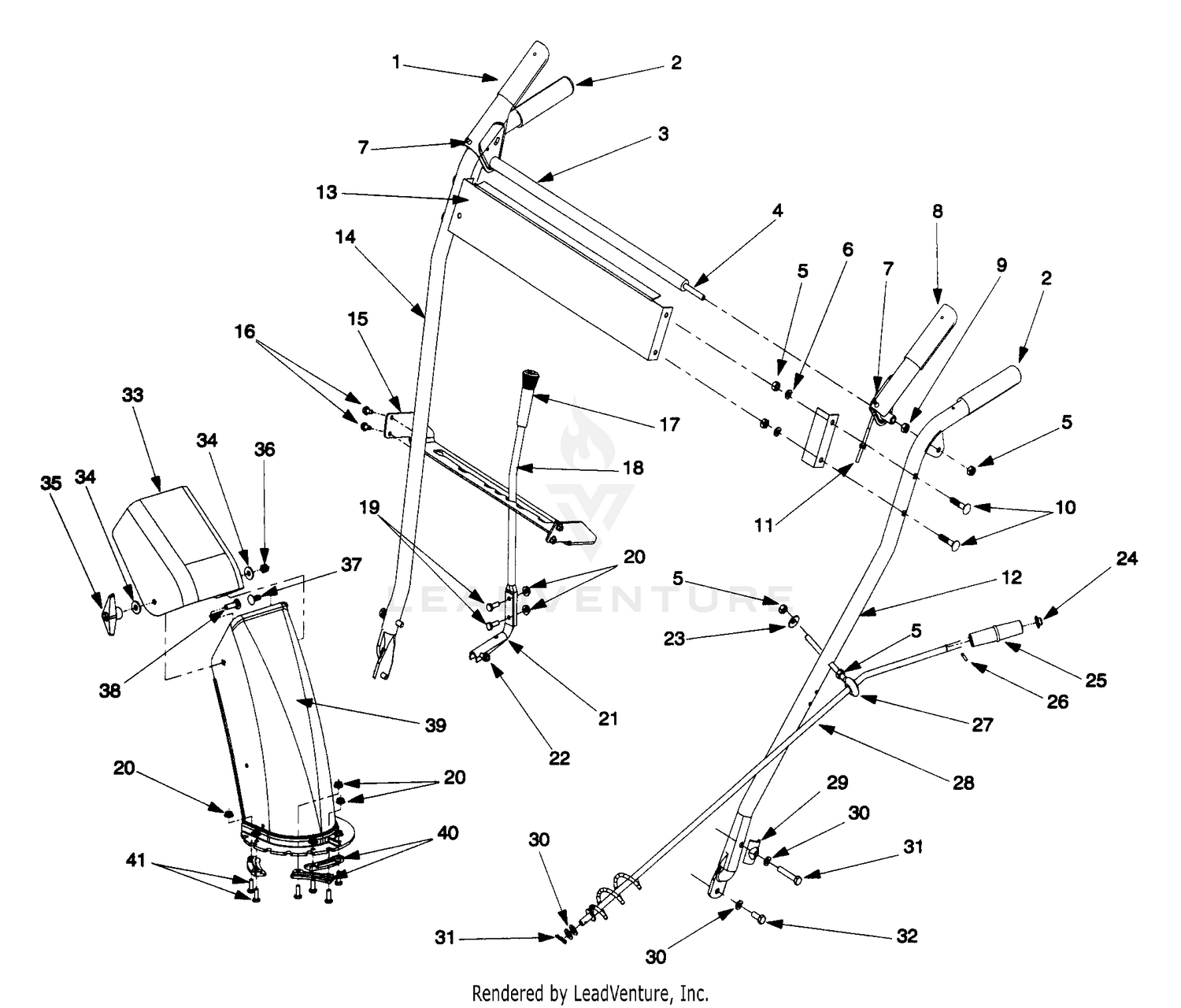

| Ref | Part Number | Description |
|---|
| 1 |
705-5234A |
CLUTCH LEVER (RH) Not Available This part replaces 705-5234. Price: |
| 2 |
720-0204 |
Grip Price: $11.98 |
| 3 |
731-1500 |
PIVOT ROD COVER Not Available Price: |
| 4 |
747-0905 |
PIVOT ROD Not Available Price: |
| 5 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 6 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 7 |
735-0199A |
Rubber Bumper Price: $6.89 |
| 8 |
705-5233A |
CLUTCH LEVER (LH) Not Available This part replaces 705-5233. Price: |
| 9 |
912-3027 |
LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85 |
| 10 |
710-0262 |
Carriage Bolt 5/16-18 x 1.50 Price: $3.66 |
| 11 |
946-0778 |
Cable "Z" Fitting This part replaces 746-0778. Price: $9.14 |
| 12 |
684-0047A |
HANDLE ASSEMBLY (LH) Not Available Price: |
| 13 |
705-5232 |
HANDLE PANEL Not Available Price: |
| 14 |
684-0048A-0637 |
HANDLE ASSEMBLY (RH) (POWDER BLACK) Not Available This part replaces 684-0048A. Price: |
| 16 |
710-0599 |
Hex Washer Screw 1/4-20 x .50 Price: $3.86 |
| 17 |
720-0223 |
Grip Price: $12.89 |
| 18 |
747-0904-0637 |
SHIFT LEVER Not Available This part replaces 747-0904. Price: |
| 19 |
710-3015 |
Hex Cap Screw 1/4-20 x .75 Price: $3.65 |
| 20 |
912-3027 |
LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85 |
| 21 |
732-0733 |
SHIFT LEVER SPRING Price: $17.35 |
| 22 |
710-0788 |
Hex Washer Screw 1/4-20 x 1.0 Price: $6.20 |
| 23 |
736-0242 |
Bell Washer Price: $3.75 |
| 24 |
726-0100 |
Push Cap Price: $3.75 |
| 25 |
720-0201A |
Chute Knob Price: $9.62 |
| 26 |
915-0138 |
Rolled Pin, 1/8 x .63 This part replaces 715-0138. Price: $4.17 |
| 27 |
747-0697 |
EYEBOLT Not Available Price: |
| 28 |
984-0022 |
Chute Crank Ass'y This part replaces 684-0022. Price: $87.11 |
| 29 |
984-5599 |
Handle Tab This part replaces 784-5599. Price: $3.58 |
| 30 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 31 |
710-3180 |
Hex Cap Screw 5/16-18 x 1.75 Price: $4.93 |
| 32 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 33 |
731-04426C |
UPPER CHUTE (W/LBL MANUAL TILT) This part replaces 731-0921. Price: $17.04 |
| 34 |
736-0159 |
Washer 5/16 Price: $3.71 |
| 35 |
720-0284 |
Knob Price: $4.08 |
| 36 |
712-0429 |
Hex Lock Nut 5/16-18 Price: $3.56 |
| 37 |
710-0451 |
Carriage Bolt 5/16-18 x .75 Price: $3.53 |
| 38 |
710-0276 |
Carriage Screw 5/16-18 x 1.0 Price: $3.68 |
| 39 |
731-1300E |
Lower Chute This part replaces 731-1300A. Price: $49.82 |
| 40 |
731-0851A |
Flange Keeper Price: $3.90 |
