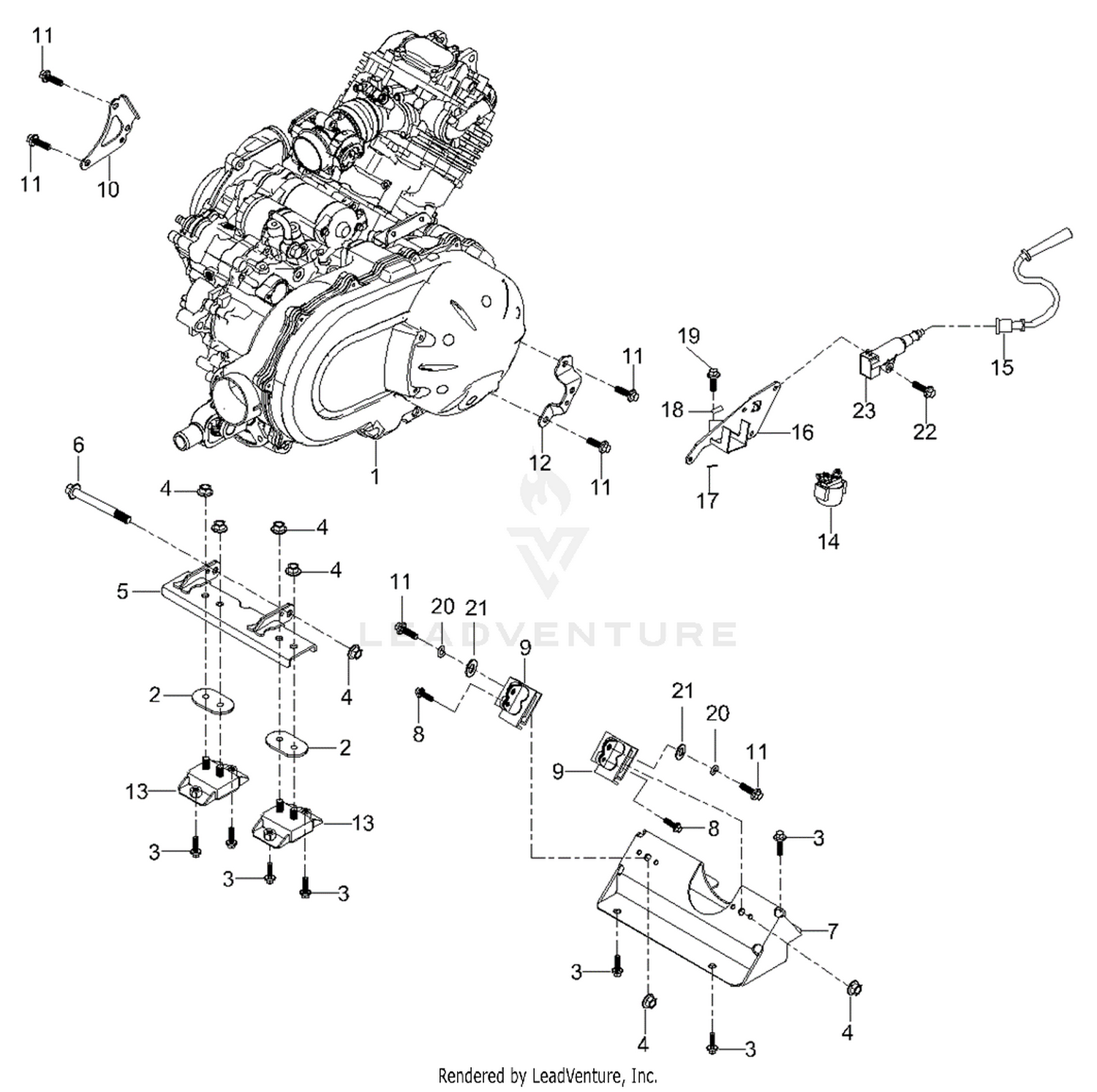

| Ref | Part Number | Description |
|---|
| 1 |
503-02846B |
ENGINE COMPLETE (750) (W/SENSORS) This part replaces 503-02846. Price: $6,009.69 |
| 1 |
503P02847B |
ENGINE COMPLETE (550) (W/SENSORS) This part replaces 503-02847. Price: $6,370.06 |
| 2 |
503-01374 |
ENGINE DAMPENING WASHER Not Available Price: |
| 3 |
503-02223 |
HEX BOLT & WASHER ASSEMBLY Price: $5.32 |
| 4 |
503-01375 |
LOCK NUT M10X1.25 Price: $6.13 |
| 5 |
503-01376 |
ENGINE MOUNTING BRACKET ASM Price: $94.63 |
| 6 |
503-02036 |
HEX BOLT (M10x1.25x180) Not Available Price: |
| 7 |
503-01378 |
ENGINE MOUNTING BRACKET II Not Available Price: |
| 8 |
503-00011 |
HEXAGON FLANGE BOLT M6X16 Price: $5.48 |
| 9 |
503-01379 |
ENGINE MOUNTING REAR ASSEMBLY Price: $22.69 |
| 10 |
503-02734 |
ENGINE MOUNT BRACKET (REAR RH) Price: $5.38 |
| 11 |
503-00042 |
HEXAGON FLANGE BOLT M8X20 Price: $6.38 |
| 12 |
503-02733 |
ENGINE MOUNT BRACKET (REAR LH) Price: $6.11 |
| 13 |
503-02016 |
ENGINE MOUNTING DAMPENER Not Available Price: |
| 14 |
503-02735 |
STARTER RELAY Price: $63.36 |
| 15 |
503-00545 |
IGNITION CABLE (750cc Engine) Price: $71.48 |
| 15 |
503-01855 |
IGNITION CABLE (550cc Engine) Price: $53.32 |
| 16 |
503-02761 |
IGNITION COIL MOUNT Price: $21.76 |
| 17 |
503-02826 |
FOAM CUSHION Price: $1.60 |
| 18 |
503-02770 |
STARTER RELAY LATCH Price: $1.60 |
| 19 |
503-00021 |
CROSS PLATE HEAD SCREW M6X12 Price: $4.85 |
| 20 |
503-00005 |
SPRING WASHER-8 Price: $5.36 |
| 21 |
503-01411 |
WASHER 8 Price: $4.06 |
| 22 |
503-00398 |
HEXAGON FLANGE BOLT M6X40 Price: $4.69 |
