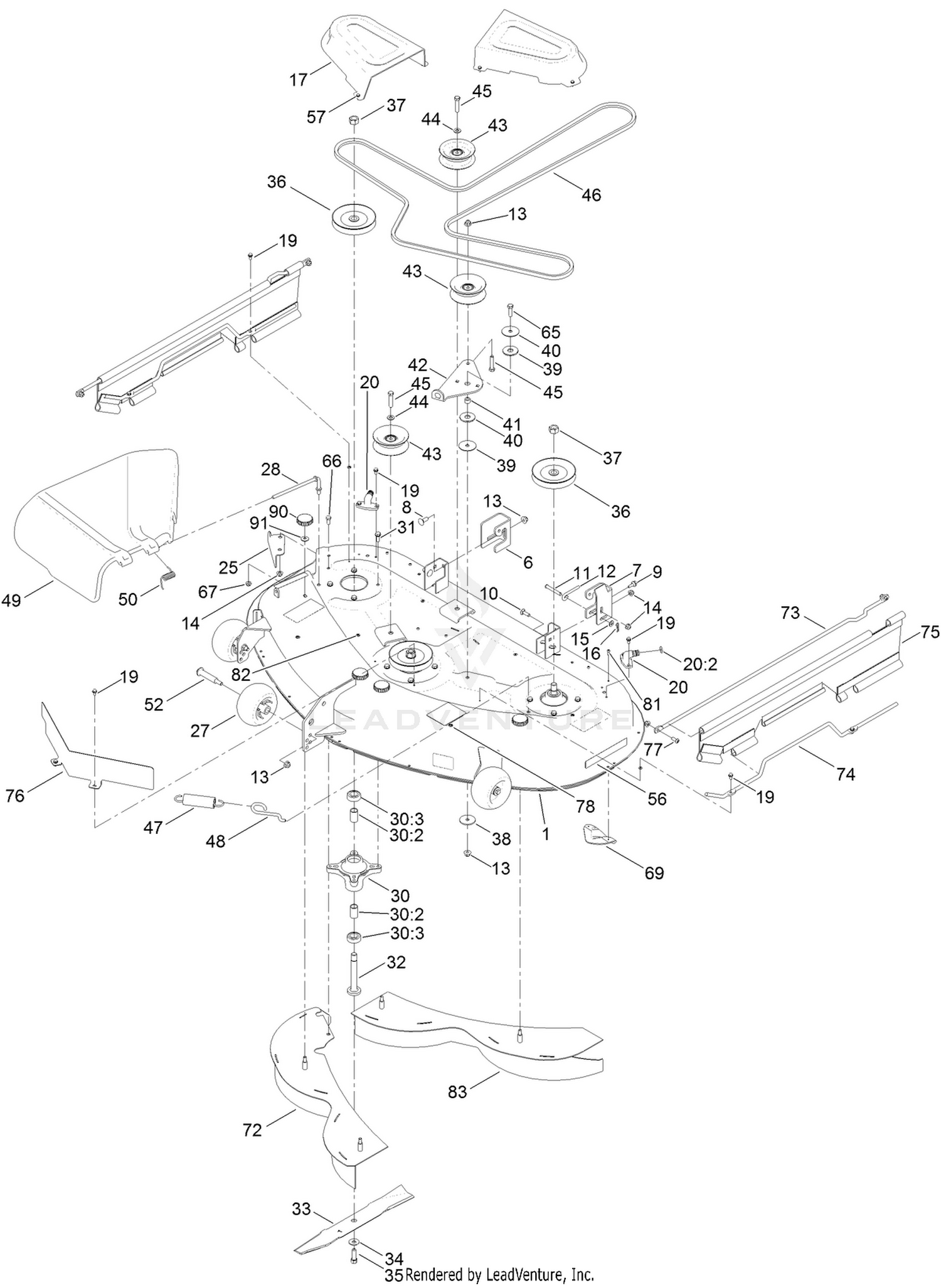

| Ref | Part Number | Description |
|---|
| 6 |
131-4138 |
BRACKET-HANGER, RH Price: $8.65 |
| 7 |
131-1091 |
BRACKET-HANGER, LH Price: $10.00 |
| 8 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 9 |
120-7024 |
SCREW-SHOULDER,HWH Price: $1.31 |
| 10 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 11 |
110-0618 |
PIN-CLEVIS Price: $1.42 |
| 12 |
131-0955 |
ROD-LEVEL, DECK Price: $4.64 |
| 13 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 14 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 15 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 16 |
1-806003 |
PIN-COTTER Price: $1.39 |
| 17 |
108-7890 |
COVER-BELT Price: $13.33 |
| 19 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 20 |
133-9289 |
FITTING-WASHOUT Price: $3.86 |
| 25 |
112-3983-03 |
BAFFLE-CUTOFF Price: $16.63 |
| 27 |
1-603299 |
ROLLER-SCALP, ANTI Price: $21.99 |
| 28 |
112-3950 |
ROD-PIVOT Price: $12.49 |
| 30 |
121-0751 |
SPINDLE ASM Price: $51.71 |
| 31 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 32 |
117-7268 |
SHAFT-SPINDLE Price: $19.98 |
| 33 |
115-5062-03 |
BLADE-MULCH, 17.50 INCH Price: $24.06 |
| 34 |
3290-465 |
WASHER-BELLEVILLE Price: $2.89 |
| 35 |
26-0671 |
SCREW-HH Price: $7.99 |
| 36 |
125-5575 |
PULLEY Price: $42.69 |
| 37 |
3219-6 |
NUT-HEX Price: $2.78 |
| 38 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 39 |
120-2229 |
WASHER Price: $1.27 |
| 40 |
114-0463 |
WASHER-FRICTION, COMPOSITE Price: $4.79 |
| 41 |
115-4986 |
SPACER Price: $1.39 |
| 42 |
114-8540 |
ARM-IDLER Price: $14.48 |
| 43 |
132-9420 |
PULLEY-IDLER, FLAT Price: $25.16 |
| 44 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 45 |
323-9 |
SCREW-HH Price: $1.29 |
| 46 |
119-8820 |
V-BELT Price: $48.15 |
| 47 |
1-603414 |
SPRING-EXTENSION Price: $13.37 |
| 48 |
138-7266 |
SPRING-RETURN, HOOK This part replaces 112-3973. Price: $2.95 |
| 49 |
108-7895 |
DEFLECTOR Price: $43.35 |
| 50 |
110-6694 |
SPRING-TORSION Price: $4.12 |
| 52 |
112-3977 |
BOLT-SHOULDER Price: $7.37 |
| 56 |
119-2368 |
DECAL-RECYCLER Price: $3.60 |
| 57 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 65 |
323-7 |
SCREW-HH Price: $0.65 |
| 66 |
322-3 |
SCREW-HH Price: $0.79 |
| 67 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 69 |
76-2160 |
PLATE-KICKER Price: $10.37 |
| 72 |
112-4010-03 |
RH BAFFLE ASM Price: $176.90 |
| 73 |
131-3669 |
ROD-SUPPORT, UPPER Price: $13.32 |
| 74 |
131-3684 |
ROD SUPPORT, LOWER Price: $14.66 |
| 75 |
131-3926 |
GUARD-SIDE Price: $16.40 |
| 76 |
131-3648-03 |
SHIELD-FRONT Price: $14.71 |
| 77 |
3274-55 |
SCREW-HSBH Price: $3.19 |
| 78 |
1-803037 |
NUT-RETAINING Price: $1.39 |
| 81 |
32144-111 |
SCREW-PPH Price: $0.66 |
| 82 |
132-0900 |
NUT-RETAINING Price: $0.36 |
| 83 |
112-4011-03 |
LH BAFFLE ASM Price: $176.90 |
| 90 |
94-5583 |
KNOB Price: $12.99 |
