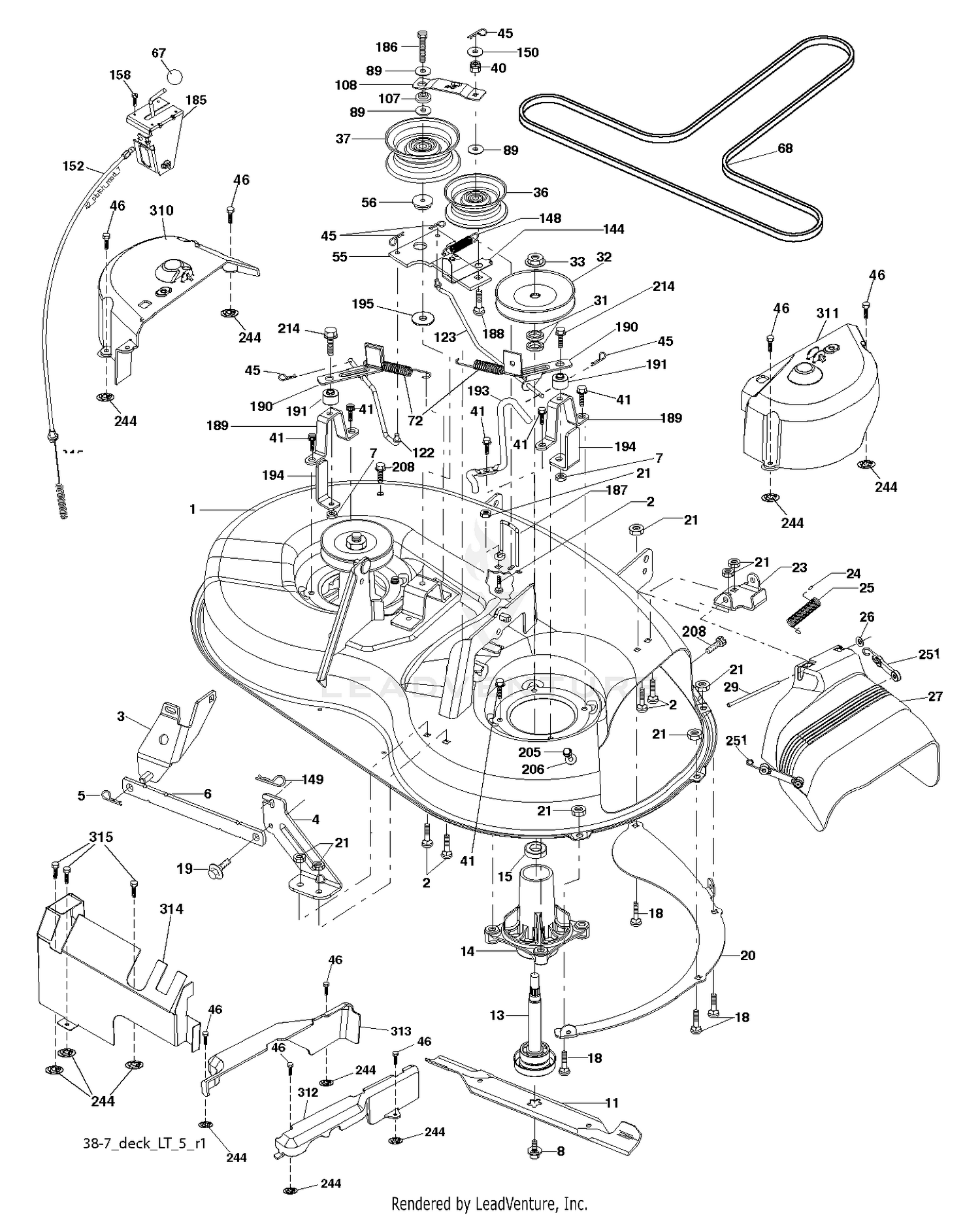

| Ref | Part Number | Description |
|---|
| 1 |
532192556 |
DECK SVCX1 38/94 192556X431 Price: $249.99 |
| 1 |
92-6533 |
SEAT CUSHION KIT This part replaces 67-9550. Price: $290.43 |
| 2 |
104-4620 |
SEAT This part replaces 66-5400. Price: $273.15 |
| 2 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 3 |
531165401 |
SERVICE.KIT BRACKET BRKT ASM S This part replaces 532138017. Price: $12.99 |
| 3 |
92-6534 |
ORDER COMPLETE SEAT This part replaces 67-9560. Price: Call Us |
| 4 |
532192568 |
BRACKET DECK SWAY BAR 38"/42" Price: $7.99 |
| 4 |
66-8600 |
FRAME-UPPER Price: $327.08 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 5 |
66-8520 |
BUMPER-DOWNSTOP Price: $37.56 |
| 6 |
108-6702 |
ADJUSTER-SEAT, W/HANDLE This part replaces 66-8510. Price: $239.09 |
| 6 |
531149301 |
SERVICE KIT BAR BAR SWAY DECK. This part replaces 532178024. Price: $9.99 |
| 7 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 7 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 8 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 9 |
75-3570 |
TIP-VINYL Price: $2.48 |
| 10 |
108-6703 |
ADJUSTER-SEAT This part replaces 66-8530. Price: $183.47 |
| 11 |
581116302 |
BLADE.2 IN 1.38"DECK.BLACK This part replaces 532193957. Price: $14.99 |
| 11 |
76-1960 |
KNOB KIT Price: $357.33 |
| 12 |
66-9290 |
SPACER-SUSPENSION Price: $3.60 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 13 |
66-8610 |
DISCONTINUED Price: Call Us |
| 14 |
32128-25 |
NUT-HF Price: $3.19 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
322-3 |
SCREW-HH Price: $0.79 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 20 |
531170401 |
SERVICE KIT BAFFLE BAFFLE.VORT This part replaces 532400095. Price: $14.99 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
597316601 |
Shields This part replaces 532401618. Price: $44.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
532173435 |
MANDREL.PULLEY.38.BRIGHT.ZINC This part replaces 532153532. Price: $19.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 36 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 37 |
596481402 |
PULLEYS This part replaces 532193198. Price: $22.99 |
| 40 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 45 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 55 |
531164901 |
SERVICE.KIT IDLER ARM This part replaces 532133840. Price: $11.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER Price: $5.99 |
| 67 |
532106932 |
KNOB T (3/8 HOLE) Price: $6.99 |
| 68 |
532193214 |
V-BELT.MOWER.38"2005+ Price: $44.99 |
| 72 |
532193216 |
SPRING.BRAKE.RETURN.38" Price: $4.99 |
| 89 |
596134901 |
GSPH This part replaces 819131311. Price: $2.99 |
| 107 |
532133502 |
SPACER.IDLER.ARM Price: $4.99 |
| 108 |
531150801 |
SERVICE KIT STIFFENER STIFFENE This part replaces 532133503. Price: $6.99 |
| 122 |
532410189 |
LINK.BRAKE.38"LEFT.2007 Price: $14.99 |
| 123 |
532410190 |
LINK.BRAKE.38"RIGHT Price: $11.99 |
| 144 |
531148901 |
SERVICE.KIT KEEPER BELT KEEPER This part replaces 532193414. Price: $3.99 |
| 148 |
532169022 |
IDLER RETURN SPRING Price: $4.99 |
| 149 |
532165898 |
SPRING.RETAINER.YELLOW.ZINC Price: $3.99 |
| 150 |
596039801 |
Washers This part replaces 819091210. Price: $2.99 |
| 152 |
532193235 |
CABLE.CLUTCH.38".SERVICE Price: $44.99 |
| 158 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 185 |
532188234 |
HEAD ASM. CABLE CLUTCH Price: $34.99 |
| 186 |
596564005 |
BOLT This part replaces 817490644. Price: $8.99 |
| 187 |
532193412 |
KEEPER BELT Price: $6.99 |
| 188 |
532173443 |
BOLT CARRIAGE IDLER This part replaces 532165891. Price: $4.99 |
| 189 |
532192558 |
BRAKE.ASSY.38"2005.+ This part replaces 532192559. Price: $17.99 |
| 190 |
532192558 |
BRAKE.ASSY.38"2005.+ This part replaces 532192560. Price: $17.99 |
| 191 |
532192561 |
BRAKE.SPACER.38".DECK Price: $2.99 |
| 193 |
532193413 |
KEEPER BELT RH MANDREL Price: $9.99 |
| 194 |
532192558 |
BRAKE.ASSY.38"2005.+ This part replaces 532194105. Price: $17.99 |
| 195 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 205 |
817640416 |
This part replaces 817490416. Price: $1.92 |
| 206 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 214 |
532193782 |
BOLT/WASHER ASM 5/16-18 Price: $5.99 |
| 244 |
532423062 |
PALNUT 1/4 Price: $2.99 |
| 251 |
583508201 |
KIT.STRAP.BUNGEE.DEFLECTOR.SVC This part replaces 532436087. Price: $7.99 |
| 310 |
532430251 |
Price: Call Us |
| 311 |
532430252 |
Price: Call Us |
| 312 |
532421790 |
Price: Call Us |
| 313 |
532421789 |
Price: Call Us |
| 314 |
532430250 |
Price: Call Us |
| 315 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
