| Ref | Part Number | Description |
|---|
| 1 |
182032X421 |
Mower Deck Assembly, 42" Price: Call Us |

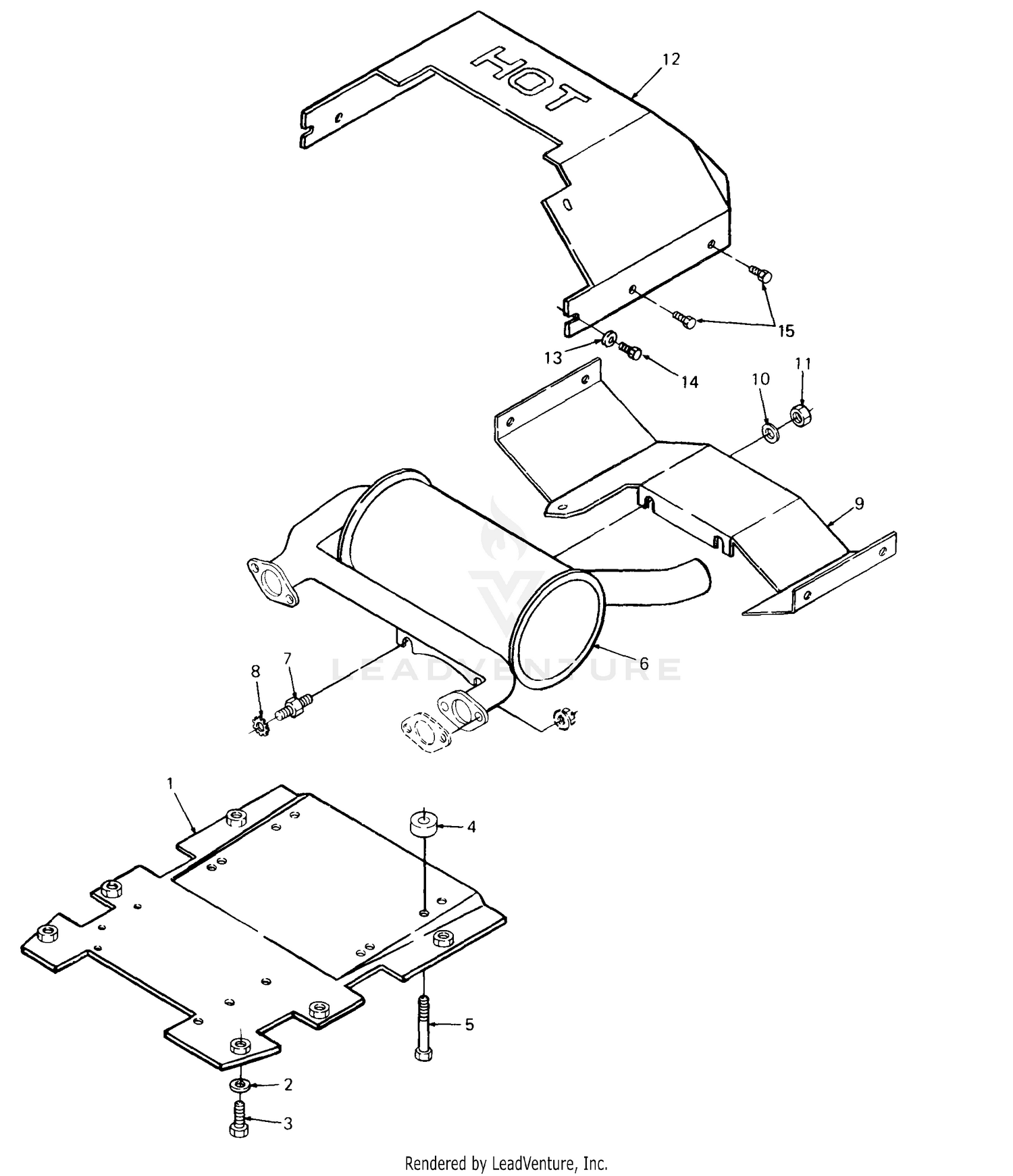

| 1 |
603-0025 |
PLATE ASSY, ENGINE MOUNTING Not Available Price: |
| 2 |
72140506 |
Bolt Price: Call Us |
| 2 |
736-0185 |
Washer, Flat, .406 x .75 x .06 Thk Price: $3.43 |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 3 |
710-3118 |
Belt, Patch, 3/8-16 x 1.0 Lg Price: $4.77 |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 4 |
950-3009 |
SPACER This part replaces 750-3009. Price: $10.74 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 5 |
710-3124 |
SCREW 3/8-16X2.25 GR5 Not Available Price: |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 6 |
751-3110 |
MUFFLER Not Available Price: |
| 7 |
711-3006 |
STUD 7/16-14 Not Available Price: |
| 8 |
736-3086 |
WASHER-EXT LOCK .450X.750X.0 Not Available Price: |
| 8 |
850857 |
Bolt 3/8-24 x 1.25 Gr. 8 patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 9 |
703-2176 |
DUCTING-MU Not Available Price: |
| 10 |
140296 |
Washer, Hardened Price: Call Us |
| 10 |
736-3024 |
Washer, Flat, .47 x .750 x .0605 Thk Price: $3.19 |
| 11 |
712-3019 |
Nut, Hex, 7/16-14 GR5 Price: $5.94 |
| 12 |
703-2177 |
HEAT SHIELD Not Available Price: |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 13 |
736-0142 |
Washer, Flat, .281 x .50 x .063 Thk Price: $3.95 |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 14 |
710-3209 |
Bolt, Hex, M6-1.0 x 10 MM Lg GR5 Price: $7.30 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 21 |
73680500 |
Nut Price: Call Us |
| 23 |
177563 |
Bracket, Deflector Mower 42" Price: Call Us |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 30 |
173984 |
Screw Thdrol Price: Call Us |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Toplock Price: Call Us |
| 34 |
72110612 |
Bolt Carr SH 3/8-16 x 1-1/2 Gr.5 Price: Call Us |
| 36 |
173438 |
Pulley, Idler, Flat Price: Call Us |
| 40 |
73900600 |
Nut Lock 3/8-16 Price: Call Us |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 48 |
133944 |
Washer, Hardened Price: Call Us |
| 52 |
139888 |
Bolt, Shoulder 5/16-18 unc Price: Call Us |
| 53 |
184907 |
Arm Assembly, Pad, Brake Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
122052X |
Spacer, Retainer Price: Call Us |
| 59 |
141043 |
Guard TUV Idler Price: Call Us |
| 67 |
171598 |
Knob Round Price: Call Us |
| 68 |
144959 |
V-Belt, 42" Mower Price: Call Us |
| 113 |
17000510 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 116 |
4898H |
Bolt, Shoulder Price: Call Us |
| 117 |
188606 |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut Centerlock 3/8-16 Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 134 |
156941 |
Pin Head Rivet Price: Call Us |
| 135 |
159765X421 |
Bracket Asm. Whl Ga. R LH Price: Call Us |
| 136 |
155986 |
Bar Adjusting Gauge Wheel Price: Call Us |
| 138 |
159763X421 |
Bracket Asm Whl Ga. R RH Price: Call Us |
| 139 |
159767X421 |
Bracket Asm. Whl Ga. F RH Price: Call Us |
| 140 |
159768X421 |
Bracket Asm Whl Ga. F LH Price: Call Us |
| 142 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
173441 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
173437 |
Pulley Idler Flat Price: Call Us |
| 146 |
173443 |
Bolt Carriage Idler Price: Call Us |
| 147 |
131335 |
Spring Extension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 152 |
169676 |
Clutch Cable 42" Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 Price: Call Us |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
| 185 |
188234 |
Head Asm Cable Clutch Price: Call Us |
