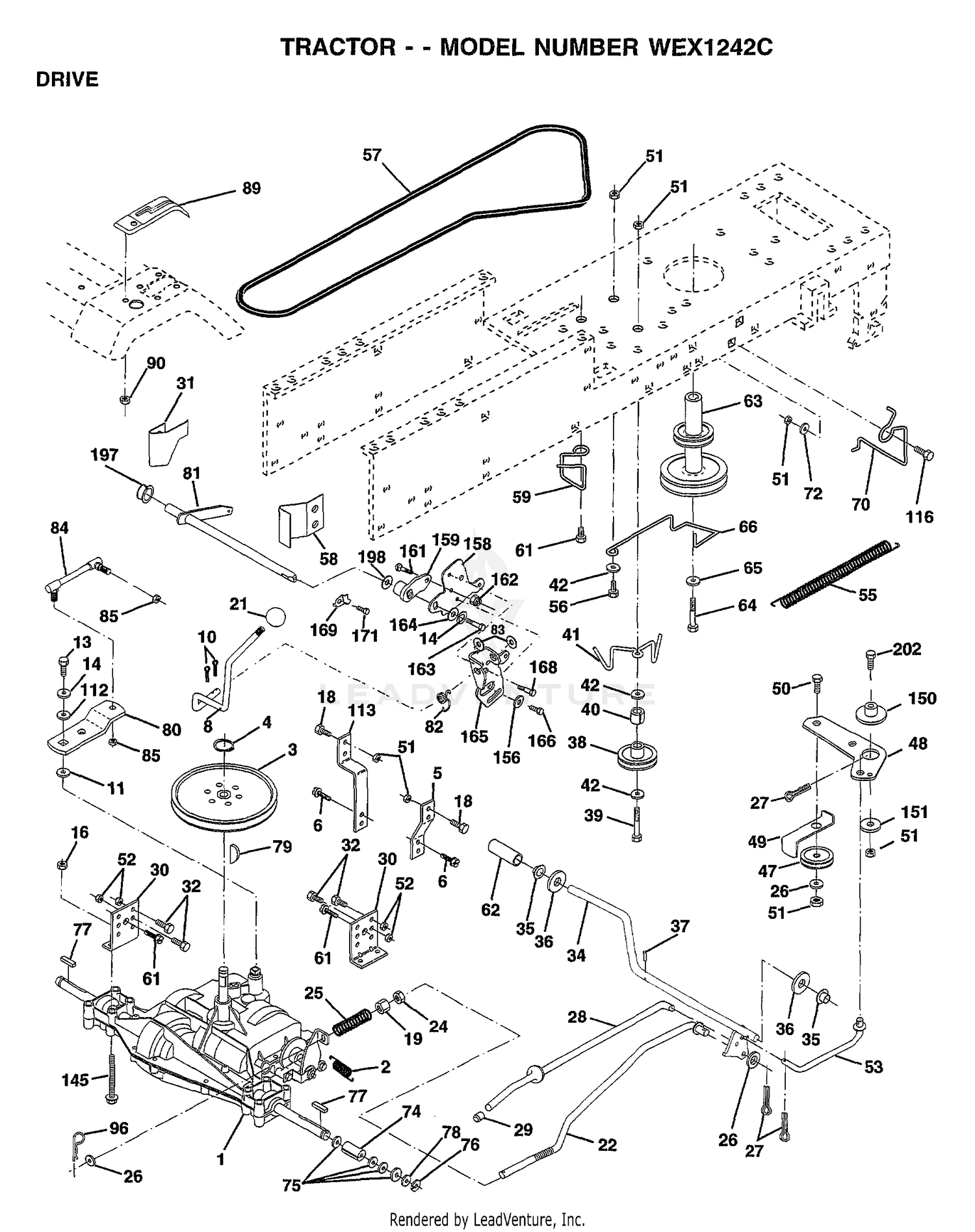

| Ref | Part Number | Description |
|---|
| 1 |
106-1120 |
REAR AXLE ASM Price: $6,718.01 |
| 1 |
SUPPLIER |
CHECK WITH SUPPLIER Price: Call Us |
| 2 |
146682 |
SPRING.BRAKE.RETU Price: Call Us |
| 2 |
98-3860-03 |
ADAPTOR-LOCATOR, CLUTCH Price: $105.86 |
| 3 |
123666X |
PULLEY TRANS Price: Call Us |
| 3 |
95-6296 |
CLUTCH-BIDIRECTIONAL Price: $1,190.02 |
| 4 |
12000028 |
SUB= 2267J Price: Call Us |
| 4 |
98-1823 |
SPACER Price: $23.60 |
| 5 |
121520X |
STRAP TORQUE Price: Call Us |
| 5 |
33094-00 |
WASHER-PLAIN Price: $0.25 |
| 6 |
17060512 |
SCREW Price: Call Us |
| 6 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 7 |
33114-050 |
SCREW-HH Price: $1.97 |
| 8 |
105-4295-03 |
AXLE SUPPORT ASM Price: $629.07 |
| 8 |
165619 |
ROD.SHIFT.FENDER.ADJ.LT.CRD Price: Call Us |
| 9 |
98-3863 |
STOP-OSCILLATION Price: $50.19 |
| 10 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 10 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 11 |
105701X |
WASH-SHFT PLT LT Price: Call Us |
| 11 |
99-8434-03 |
REAR AXLE PIN ASM Price: $204.62 |
| 12 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 13 |
74550412 |
BOLT.1/4-28.W/PAT Price: Call Us |
| 13 |
99-8431 |
WASHER-THRUST Price: $4.63 |
| 14 |
10040400 |
LOCKWASHER Price: Call Us |
| 14 |
99-8432 |
WASHER-THRUST Price: $4.21 |
| 15 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 16 |
32146-20 |
NUT-HEX Price: $3.23 |
| 16 |
73800500 |
NUT Price: Call Us |
| 17 |
48-9220 |
WASHER-PLAIN Price: $0.87 |
| 18 |
74780616 |
BOLT Price: Call Us |
| 18 |
99-2405-03 |
BUMPER Price: $254.76 |
| 19 |
325-5 |
SCREW-HH Price: $1.20 |
| 19 |
73800600 |
NUT Price: Call Us |
| 21 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 21 |
98-3871-03 |
TIE ROD ASM Price: $893.72 |
| 22 |
130804 |
BRAKE ROD Price: Call Us |
| 23 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 24 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 24 |
73350600 |
NUT Price: Call Us |
| 25 |
106888X |
SPRING ROD LT Price: Call Us |
| 26 |
19131316 |
WASHER Price: Call Us |
| 26 |
3220-6 |
NUT-JAM Price: $1.25 |
| 27 |
108-1420 |
SCREW-HSH Price: $8.55 |
| 27 |
76020412 |
COTTER PIN Price: Call Us |
| 28 |
145204 |
ROD.BRAKE.PARK.LT Price: Call Us |
| 28 |
98-3862-03 |
BRACKET-SUPPORT, CYLINDER Price: $161.16 |
| 29 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 29 |
71673 |
PLUNGER CAP T Price: Call Us |
| 30 |
130807 |
TRANSAXLE MTG BKT Price: Call Us |
| 31 |
99-2404-03 |
STOP-REAR AXLE, LH Price: $20.67 |
| 32 |
325-36 |
SCREW-HH Price: $7.20 |
| 32 |
74760512 |
BOLT Price: Call Us |
| 33 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 34 |
155071 |
SHAFT ASM-PEDAL F Price: Call Us |
| 35 |
120183X |
NYLON BEARING Price: Call Us |
| 35 |
87-3700 |
SCREW-CAP, HH Price: $1.29 |
| 36 |
19211616 |
WASHER LT Price: Call Us |
| 36 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 37 |
1572H |
SUB= 2882J Price: Call Us |
| 38 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 39 |
72110622 |
BOLT Price: Call Us |
| 40 |
4470J |
SPACER T Price: Call Us |
| 42 |
19131312 |
WASHER Price: Call Us |
| 47 |
127783 |
SUB= 139245 Price: Call Us |
| 48 |
154407 |
BELLCRANK.CLUTCH Price: Call Us |
| 49 |
123205X |
RETAIN BELT Price: Call Us |
| 50 |
74760624 |
SUB= 74930624 Price: Call Us |
| 51 |
73680600 |
SUB= 73690600 Price: Call Us |
| 52 |
73680500 |
SUB= 73690500 Price: Call Us |
| 56 |
74760620 |
Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 57 |
130801 |
SUB= 138255 Price: Call Us |
| 59 |
169691 |
KEEPER BELT SPAN CTR Price: Call Us |
| 61 |
17060612 |
SCREW Price: Call Us |
| 62 |
8883R |
PEDAL COVER T Price: Call Us |
| 63 |
140186 |
PULLEY.ENGINE Price: Call Us |
| 64 |
71170764 |
BOLT Price: Call Us |
| 65 |
10040700 |
LOCKWASHER Price: Call Us |
| 66 |
154778 |
KEEPER-BELT Price: Call Us |
| 70 |
134683 |
KEEPER BELT ENG Price: Call Us |
| 72 |
19132012 |
WASHER Price: Call Us |
| 74 |
137057 |
SPACER AXLE Price: Call Us |
| 75 |
121749X |
WASHER Price: Call Us |
| 76 |
12000001 |
E-RING LT Price: Call Us |
| 77 |
123583X |
SQUARE KEY Price: Call Us |
| 78 |
121748X |
WASHER Price: Call Us |
| 79 |
2228M |
SUB= 2228M1 Price: Call Us |
| 81 |
165594 |
SHAFT.ASM.CROSS Price: Call Us |
| 83 |
19171216 |
WASHER Price: Call Us |
| 84 |
166228 |
LINK.TRANSAXLE Price: Call Us |
| 85 |
150360 |
NUT.CNT.LOCK.1/4 Price: Call Us |
| 89 |
169370X428 |
CONSOLE SHIFT Price: Call Us |
| 90 |
124346X |
NUT Price: Call Us |
| 96 |
4497H |
RETAINER M Price: Call Us |
| 112 |
19091210 |
WASHER LT Price: Call Us |
| 116 |
72110610 |
BOLT RDHD 3/8-16 Price: Call Us |
| 145 |
74490540 |
BOLT.HEX.FLGHD Price: Call Us |
| 150 |
165850 |
BUSHING.BELLCRANK.GRD.DR Price: Call Us |
| 151 |
19133210 |
WASHER Price: Call Us |
| 156 |
166002 |
WASHER.SRRTD.5/16 Price: Call Us |
| 158 |
165589 |
BRKT.SHIFT.MOUNT Price: Call Us |
| 159 |
165494 |
HUB.SHIFT Price: Call Us |
| 161 |
72140406 |
BOLT T Price: Call Us |
| 162 |
73680400 |
SUB= 73690400 Price: Call Us |
| 163 |
74780416 |
NLA Price: Call Us |
| 164 |
19091010 |
WASHER.5/8X.281X10GA Price: Call Us |
| 165 |
165623 |
BRKT.PIVOT.LEVER Price: Call Us |
| 166 |
166880 |
SCREW.5/16-18X5/8 Price: Call Us |
| 168 |
165492 |
BOLT.SHOULDER.5/16-18X.561 Price: Call Us |
| 169 |
165581 |
PLATE.FASTENING Price: Call Us |
| 171 |
17490608 |
SCREW LT Price: Call Us |
| 197 |
169613 |
NYLINER SNAP-IN Price: Call Us |
| 198 |
169593 |
WASHER NYLINER Price: Call Us |
